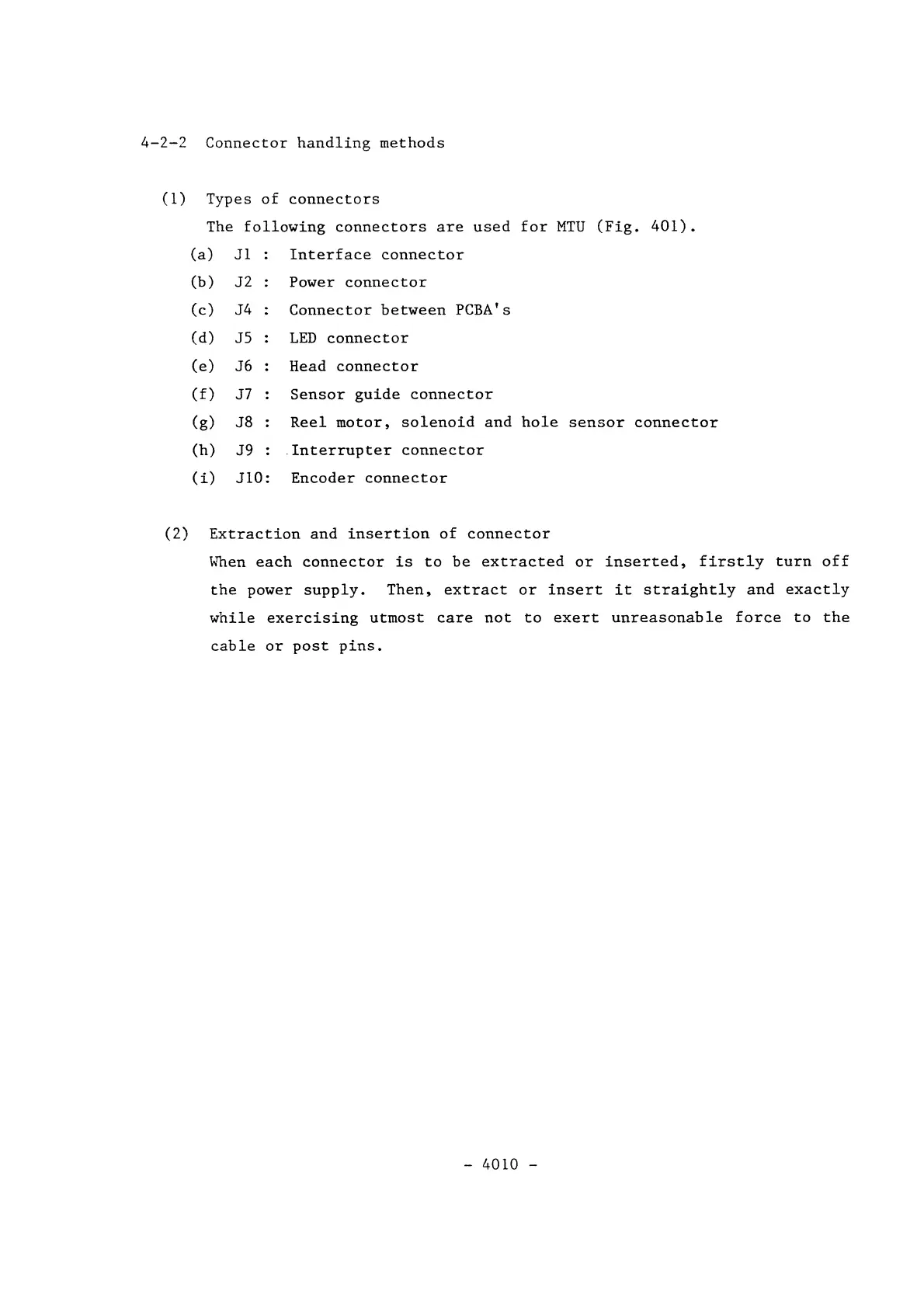

4-2-2 Connector handling methods
(1) Types of connectors
The following connectors are used for MTU (Fig. 401).
(a) J1 Interface connector
(b)
J2
Power connector
(c)
J4 Connector between PCBA's
(d)
J5
LED connector
(e) J6 Head connector
(f)
J7
Sensor guide connector
(g) J8
Reel motor, solenoid and hole sensor connector
(h) J9
. Interrupter connector
(i)
JlO:
Encoder connector
(2) Extraction and insertion of connector
~TIen each connector is to be extracted or inserted, firstly turn off
the power supply. Then, extract or insert it straightly and exactly
while exercising utmost care not to exert unreasonable force to the
cable or post pins.
