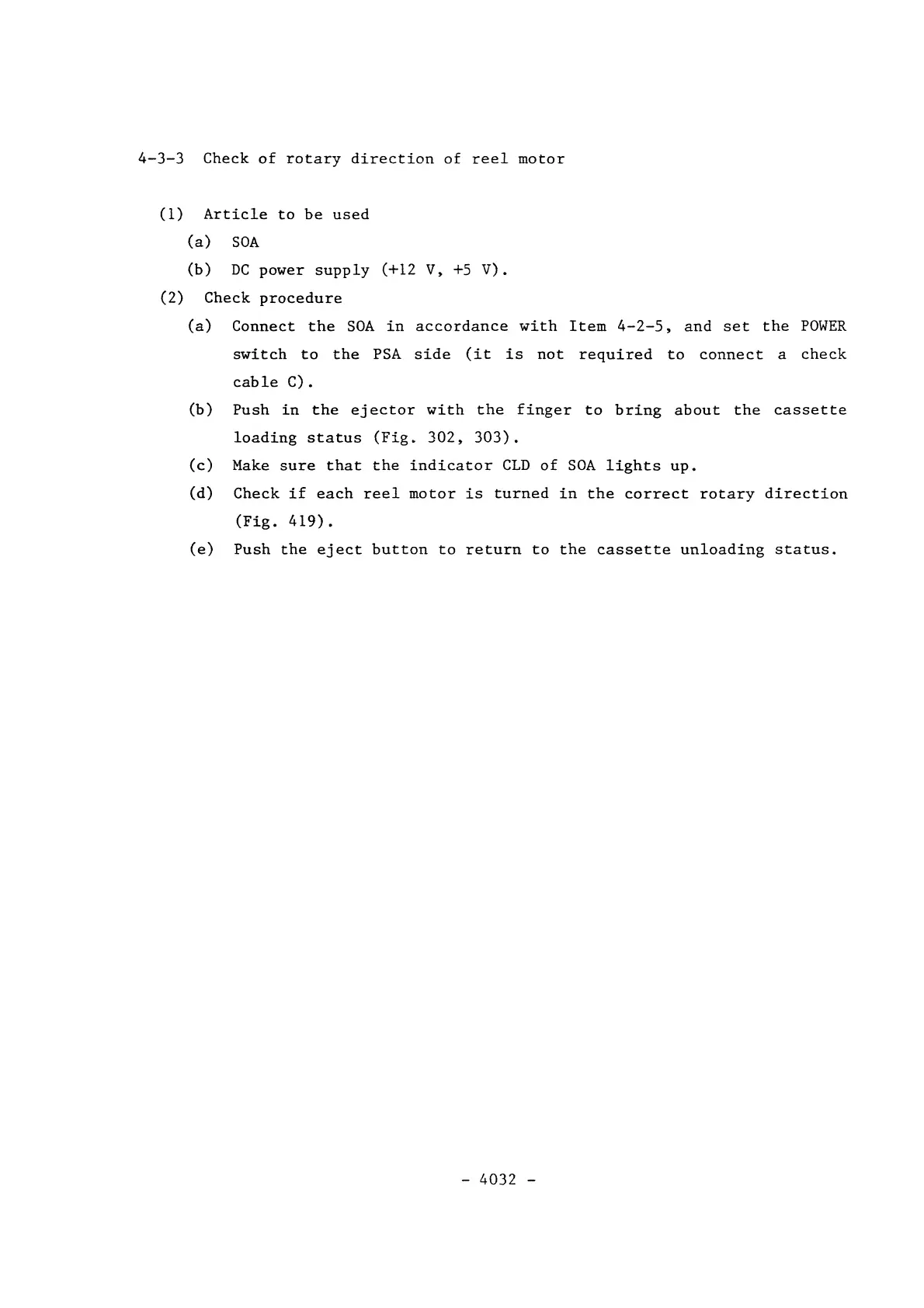

4-3-3 Check of rotary direction of reel motor
(1) Article to be used
(a) SOA
(b) DC power supply (+12 V. +5 V).
(2) Check procedure
(a) Connect the SOA in accordance with Item 4-2-5. and set the POWER
switch to the PSA side (it is not required to connect a check
cable C).
(b) Push in the ejector with the finger to bring about the cassette
loading status (Fig. 302. 303).
(c) Make sure that the indicator CLD of SOA lights up.
(d) Check if each reel motor is turned in the correct rotary direction
(Fig. 419).
(e) Push the eject button to return to the cassette unloading status.
- 4032 -
