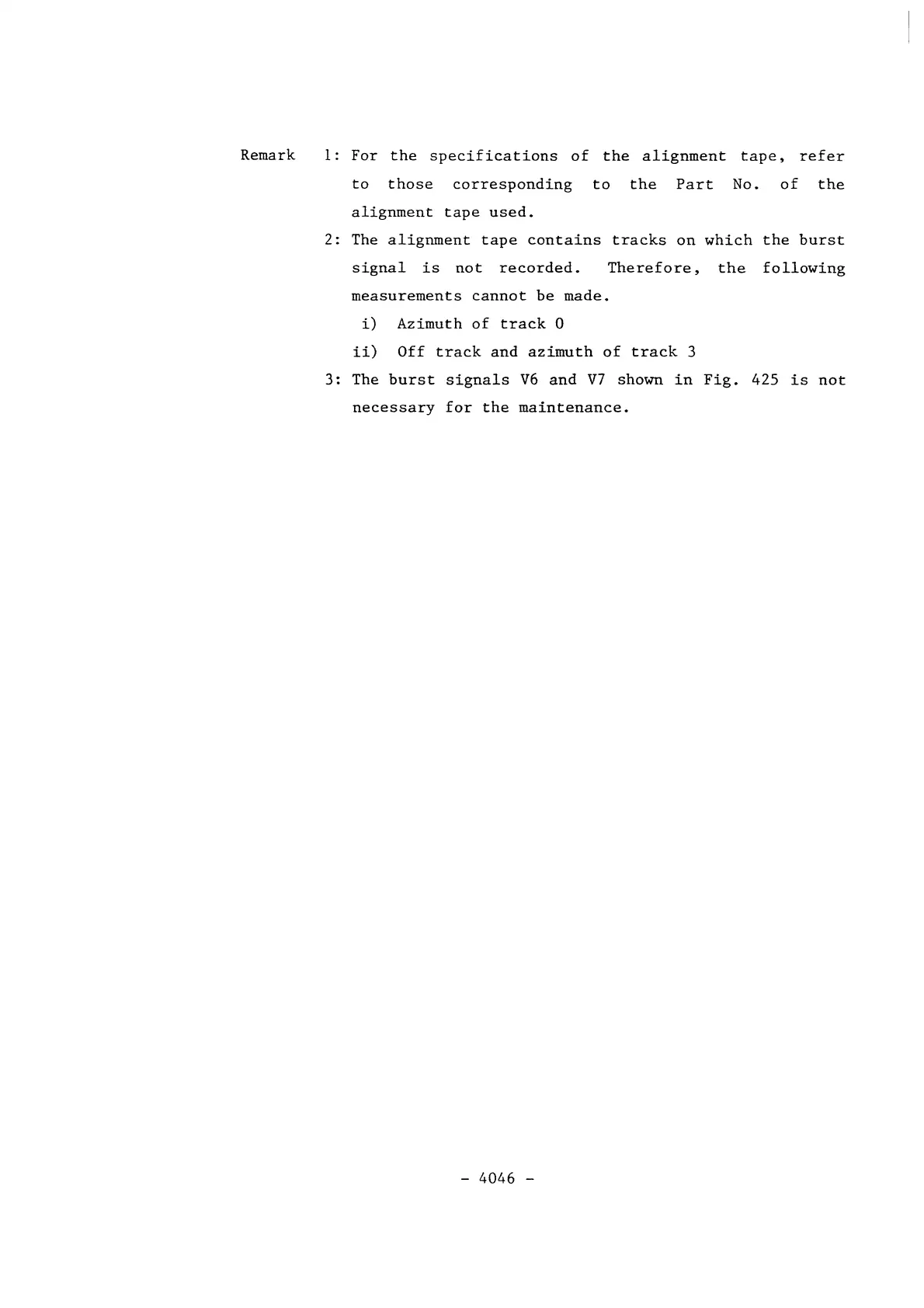

Remark
1:
For
the
specifications
of
the
alignment
tape,
refer
to
those
corresponding
to
the
Part
No.
of
the
alignment
tape
used.
2:
The
alignment
tape
contains
tracks
on
which
the
burst
signal
is
not
recorded.
Therefore,
the
following
measurements
cannot
be
made.
i)
Azimuth
of
track
0
ii)
Off
track
and
azimuth
of
track
3
3:
The
burst
signals
V6
and
V7
shown
in
Fig.
425
is
not
necessary
for
the
maintenance.
-
