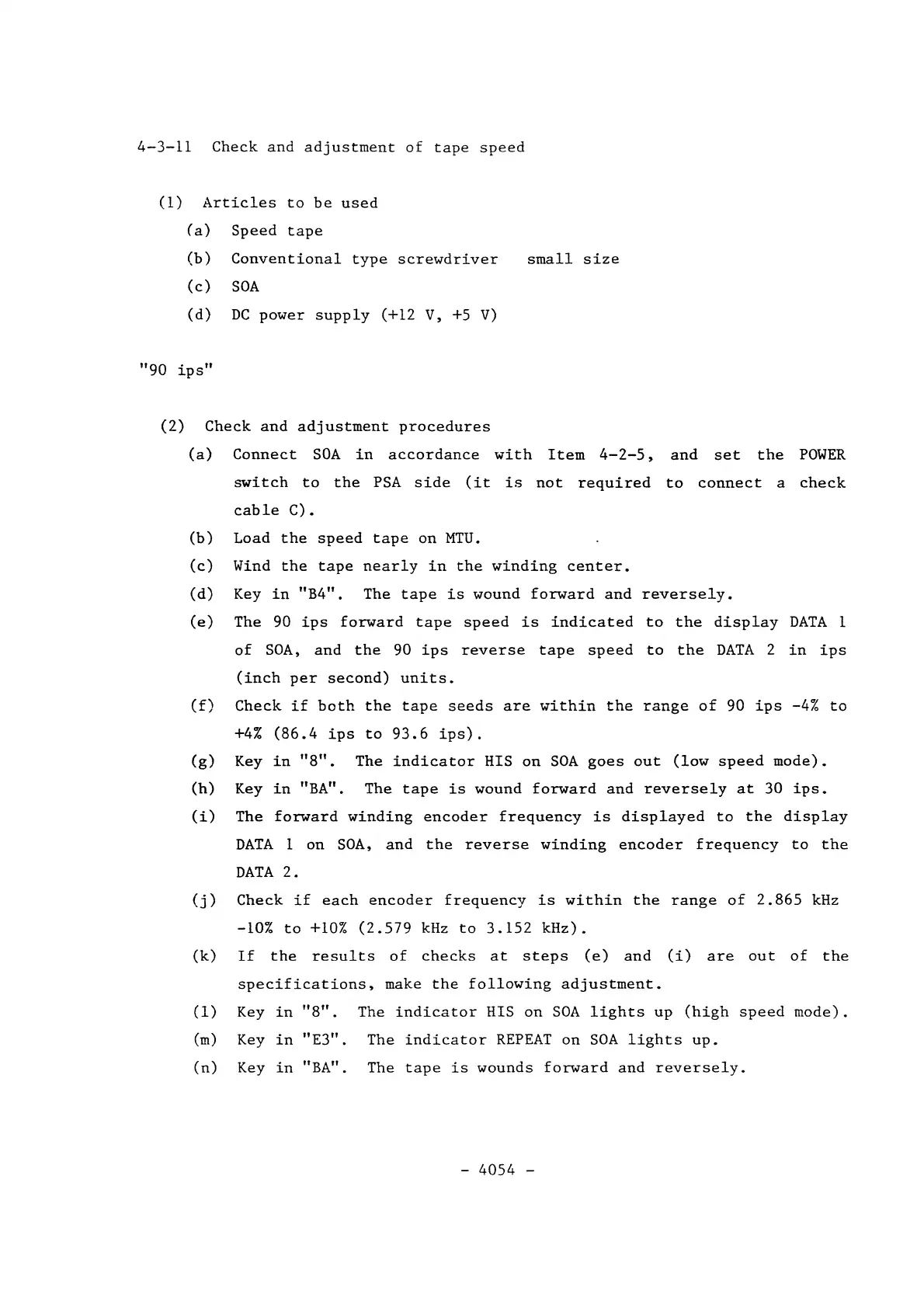

4-3-11
Check
and
adjustment
of
tape
speed
(1)
Articles
to
be
used
(a)
Speed
tape
(b)
Conventional
type
screwdriver
small
size
(c)
SOA
(d)
DC
power
supply
(+12
V, +5
V)
"90
ips"
(2)
Check
and
adjustment
procedures
(a)
Connect
SOA
in
accordance
with
Item
4-2-5.
and
set
the
POWER
switch
to
the
PSA
side
(it
is
not
required
to
connect
a
check
cable
C).
(b)
Load
the
speed
tape
on
MTU.
(c)
Wind
the
tape
nearly
in
the
winding
center.
(d)
Key
in
"B4".
The
tape
is
wound
forward
and
reversely.
(e)
The
90
ips
forward
tape
speed
is
indicated
to
the
display
DATA
1
of
SOA,
and
the
90
ips
reverse
tape
speed
to
the
DATA
2
in
ips
(inch
per
second)
units.
(f)
Check
if
both
the
tape
seeds
are
within
the
range
of
90
ips
-4%
to
+4%
(S6.4
ips
to
93.6
ips).
(g)
Key
in
"S".
The
indicator
HIS
on
SOA
goes
out
(low
speed
mode).
(h)
Key
in
"BA".
The
tape
is
wound
forward
and
reversely
at
30
ips.
(i)
The
forward
winding
encoder
frequency
is
displayed
to
the
display
DATA
1
on
SOA,
and
the
reverse
winding
encoder
frequency
to
the
DATA
2.
(j)
Check
if
each
encoder
frequency
is
within
the
range
of
2.S65
kHz
-10%
to
+10%
(2.579
kHz
to
3.152
kHz).
(k)
If
the
results
of
checks
at
steps
(e)
and
(i)
are
out
of
the
specifications,
make
the
following
adjustment.
(1)
Key
in
"8".
The
indicator
HIS
on
SOA
lights
up
(high
speed
mode).
(m) Key
in
"E3".
The
indicator
REPEAT
on
SOA
lights
up.
(n)
Key
in
"BA".
The
tape
is
wounds
forward
and
reversely.
-
4054
-
