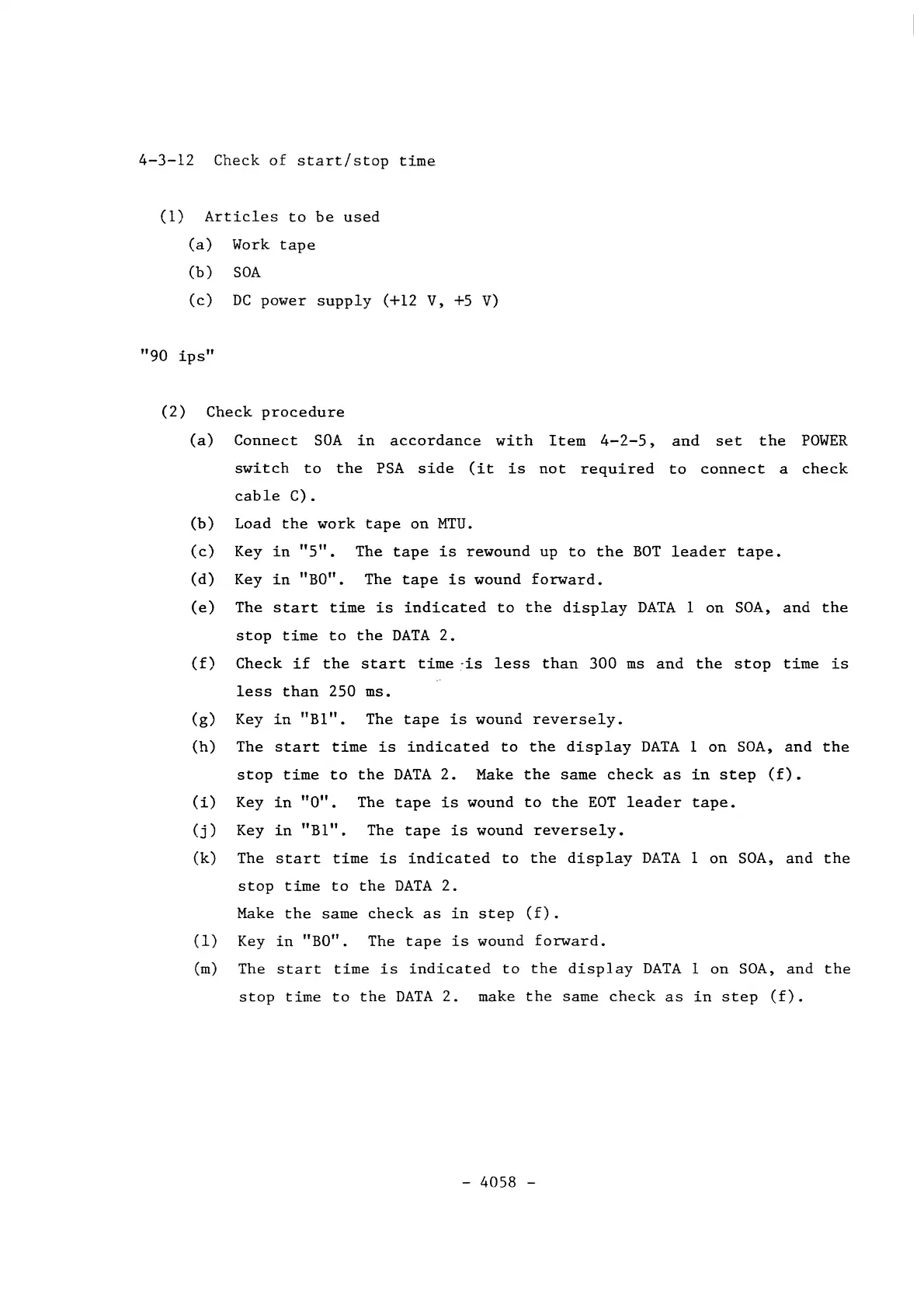

4-3-12
Check
of
start/stop
time
(1)
Articles
to
be
used
(a)
Work
tape
Cb)
SOA
(c)
DC
power
supply
(+12 V,
+5
V)
"90
ips"
(2)
Check
procedure
(a)
Connect
SOA
in
accordance
with
Item
4-2-5,
and
set
the
POWER
switch
to
the
PSA
side
(it
is
not
required
to
connect
a
check
cable
C).
(b)
Load
the
work
tape
on
MTU.
(c)
Key
in
"5".
The
tape
is
rewound
up
to
the
BOT
leader
tape.
Cd) Key
in
"BO".
The
tape
is
wound
forward.
(e)
The
start
time
is
indicated
to
the
display
DATA
I
on
SOA,
and
the
stop
time
to
the
DATA
2.
(f)
Check
if
the
start
time-is
less
than
300
ms
and
the
stop
time
is
less
than
250
ms.
(g)
Key
in
"BI".
The
tape
is
wound
reversely.
(h)
The
start
time
is
indicated
to
the
display
DATA
I
on
SOA,
and
the
stop
time
to
the
DATA
2.
Make
the
same
check
as
in
step
(f).
(i)
Key
in
"0".
The
tape
is
wound
to
the
EOT
leader
tape.
(j)
Key
in
"Bl".
The
tape
is
wound
reversely.
(k)
The
start
time
is
indicated
to
the
display
DATA
1
on
SOA,
and
the
stop
time
to
the
DATA
2.
Make
the
same
check
as
in
step
(f).
(1)
Key
in
"BOil.
The
tape
is
wound
forward.
(m)
The
start
time
is
indicated
to
the
display
DATA
I
on
SOA,
and
the
stop
time
to
the
DATA
2.
make
the
same
check
as
in
step
(f).
