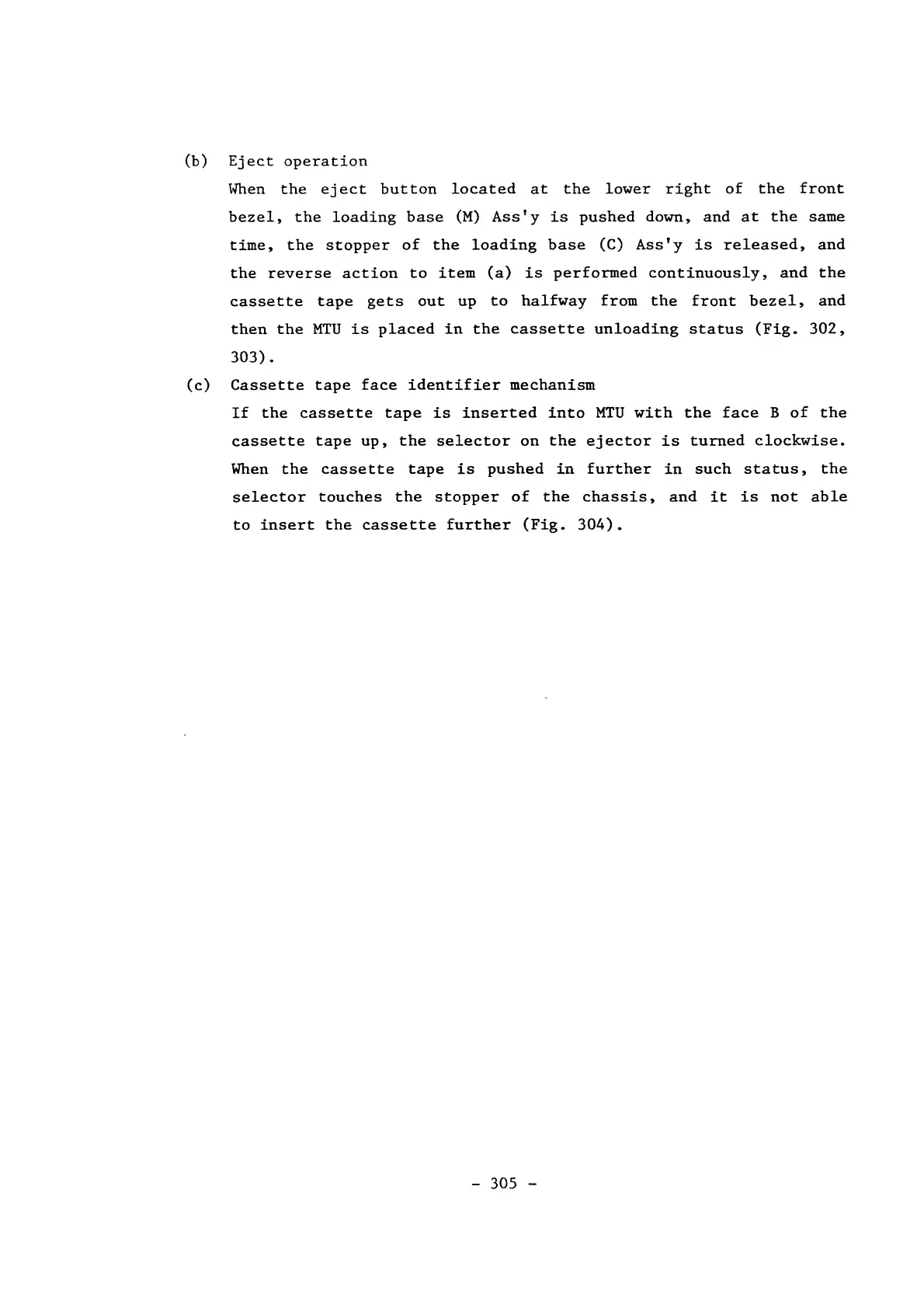

(b) Eject operation
\.fuen the ej ect button located at the lower right of the front
bezel, the loading base (M) Ass'y is pushed down, and at the same
time, the stopper of the loading base (C) Ass'y is released. and
the reverse action to item (a) is performed continuously, and the
cassette tape gets out up to halfway from the front bezel. and
then the MTU is placed in the cassette unloading status (Fig. 302.
303).
(c) Cassette tape face identifier mechanism
If the cassette tape is inserted into MTU with the face B of the
cassette tape up, the selector on the ejector is turned clockwise.
When the cassette tape is pushed in further in such status, the
selector touches the stopper of the chassis. and it is not able
to insert the cassette further (Fig. 304).
- 305 -
