Reel
motor
(F)
Ass'y
Reel
motor
(R)
Ass'y
Tube
Pan
screw,
No.O
2.6
x
2.8

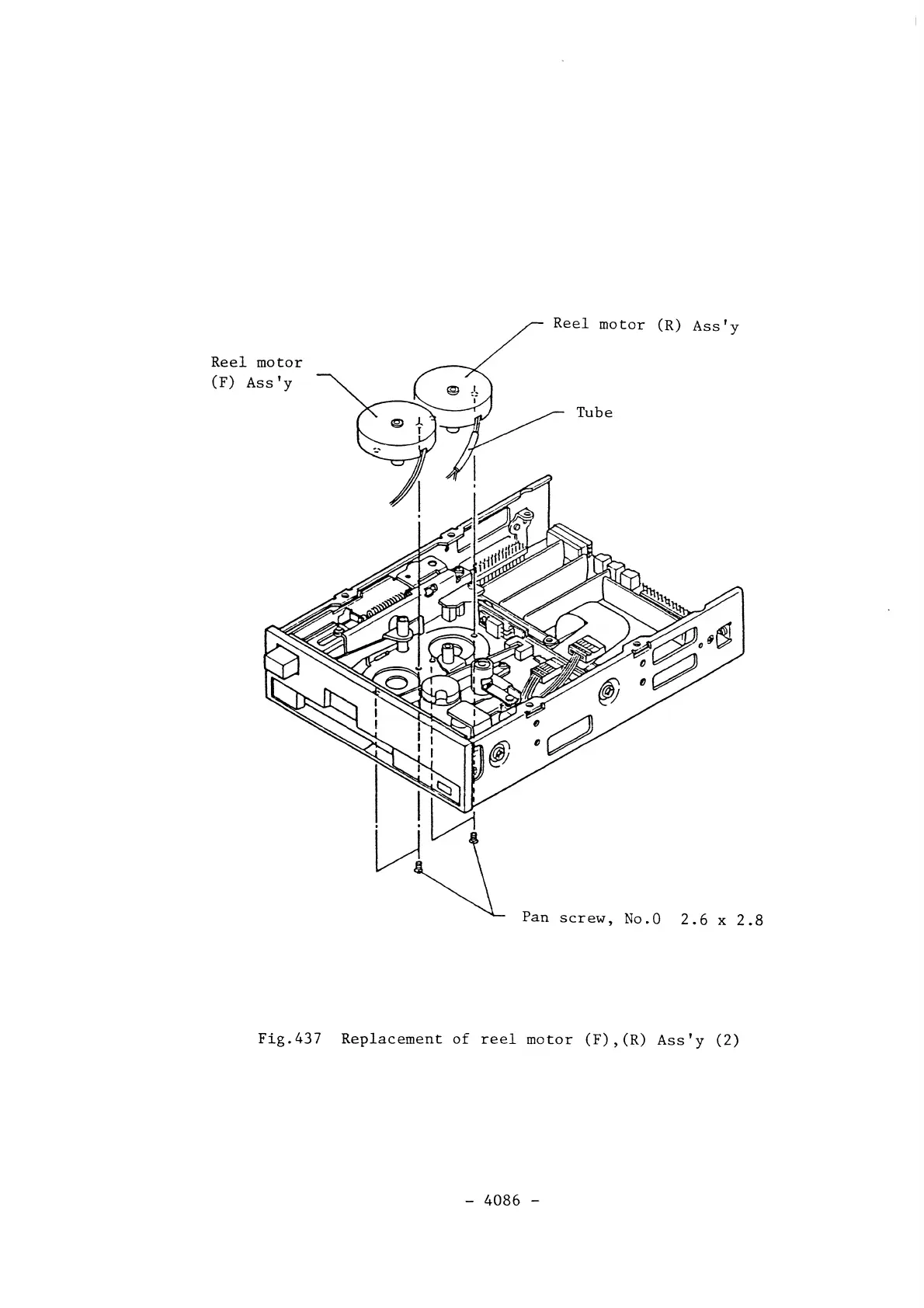

Fig.437
Replacement
of
reel
motor
(F),(R)
Ass'y
(2)
- 4086 -
