Cap
screw
2 x 6
Triple
screw
2 x 8
Encoder
Ass'y
Encoder
spring
Pin
spring

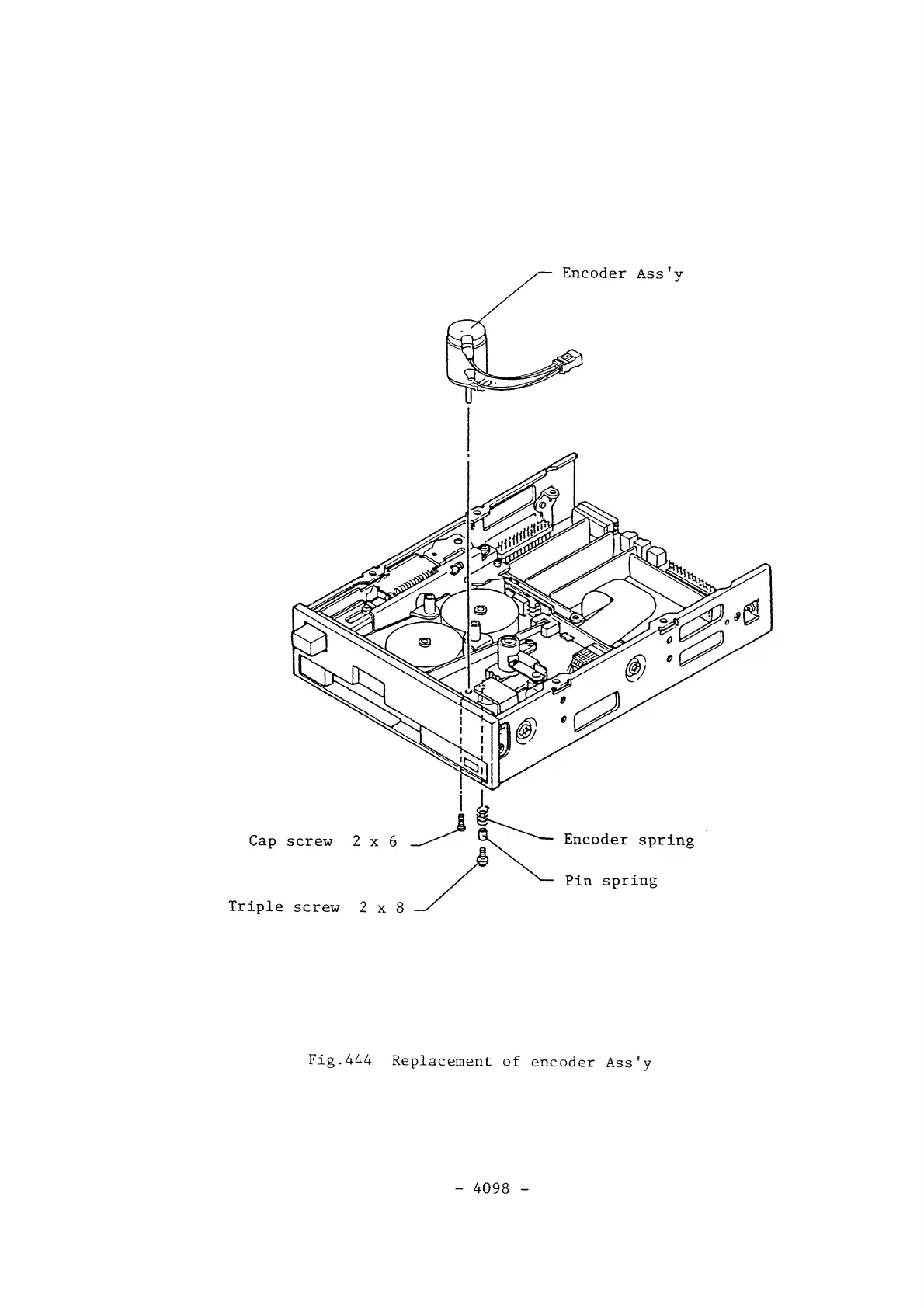

Fig.444
Replacement
of
encoder
ASs'y
- 4098 -
