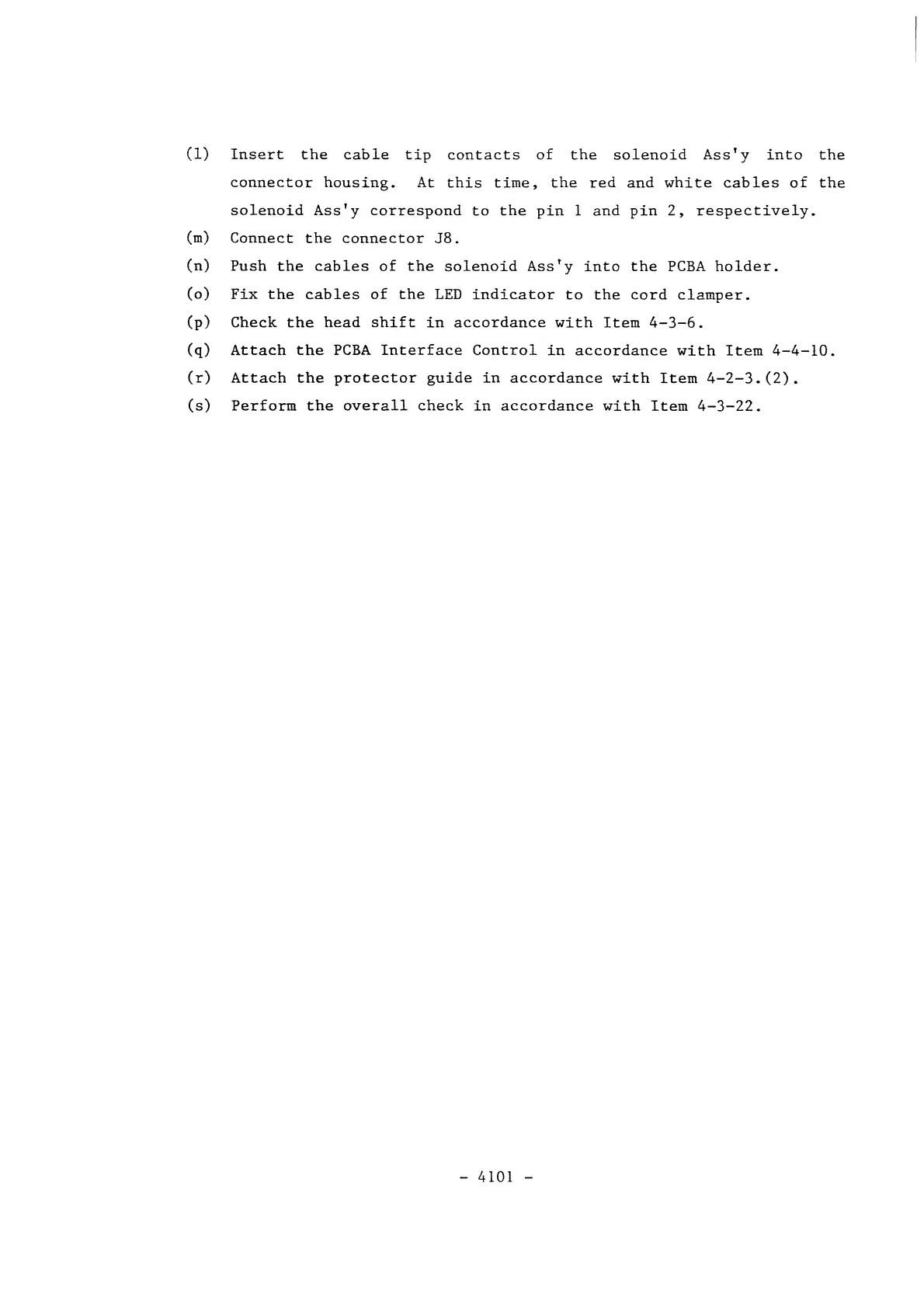

(1)
Insert
the
cable
tip
contacts
of
the
solenoid
Ass'y
into
the
connector
housing.
At
this
time,
the
red
and
white
cables
of
the
solenoid
Ass'y
correspond
to
the
pin
1
and
pin
2,
respectively.
(m)
Connect
the
connector
J8.
(n)
Push
the
cables
of
the
solenoid
Ass'y
into
the
PCBA
holder.
(0)
Fix
the
cables
of
the
LED
indicator
to
the
cord
clamper.
(p)
Check
the
head
shift
in
accordance
with
Item
4-3-6.
(q)
Attach
the
PCBA
Interface
Control
in
accordance
with
Item
4-4-10.
(r)
Attach
the
protector
guide
in
accordance
with
Item
4-2-3.(2).
(s)
Perform
the
overall
check
in
accordance
with
Item
4-3-22.
- 4101 -
