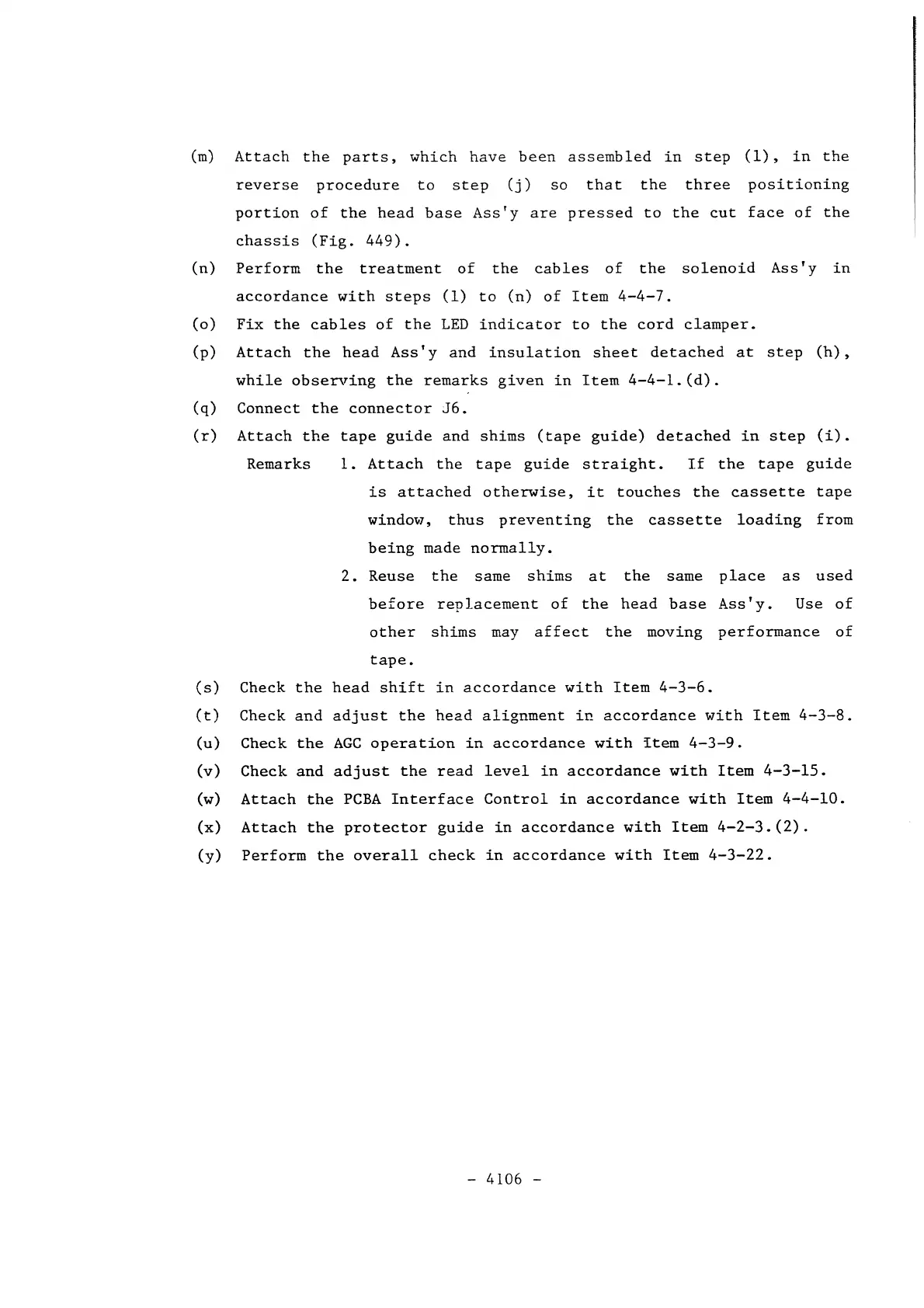

(m)
Attach
the
parts,
which
have
been
assembled
in
step
(1),
in
the
reverse
procedure
to
step
(j)
so
that
the
three
positioning
portion
of
the
head
base
Ass'y
are
pressed
to
the
cut
face
of
the
chassis
(Fig.
449).
(n)
Perform
the
treatment
of
the
cables
of
the
solenoid
Ass'
y
in
accordance
with
steps
(1)
to
(n)
of
Item
4-4-7.
(0)
Fix
the
cables
of
the
LED
indicator
to
the
cord
clamper.
(p)
Attach
the
head
Ass'y
and
insulation
sheet
detached
at
step
(h).
while
observing
the
remarks
given
in
Item
4-4-1.
(d).
(q)
Connect
the
connector
J6.
(r)
Attach
the
tape
guide
and
shims
(tape
guide)
detached
in
step
(i).
Remarks
1.
Attach
the
tape
guide
straight.
If
the
tape
guide
is
attached
otherwise,
it
touches
the
cassette
tape
windo,"1,
thus
preventing
the
cassette
loading
from
being
made
normally.
2.
Reuse
the
same
shims
at
the
same
place
as
used
before
replacement
of
the
head
base
ASs'y.
Use
of
other
shims
may
affect
the
moving
performance
of
tape.
(s)
Check
the
head
shift
in
accordance
with
Item
4-3-6.
(t)
Check
and
adjust
the
head
alignment
in
accordance
with
Item
4-3-8.
(u)
Check
the
AGC
operation
in
accordance
with
item
4-3-9.
(v)
Check
and
adjust
the
read
level
in
accordance
with
Item
4-3-15.
(w)
Attach
the
PCBA
Interface
Control
in
accordance
with
Item
4-4-10.
(x)
Attach
the
protector
guide
in
accordance
with
Item
4-2-3.(2).
(y)
Perform
the
overall
check
in
accordance
with
Item
4-3-22.
