Pan
scre,v
2 x 8
Shim
(
Tape
guide
Tape
guide

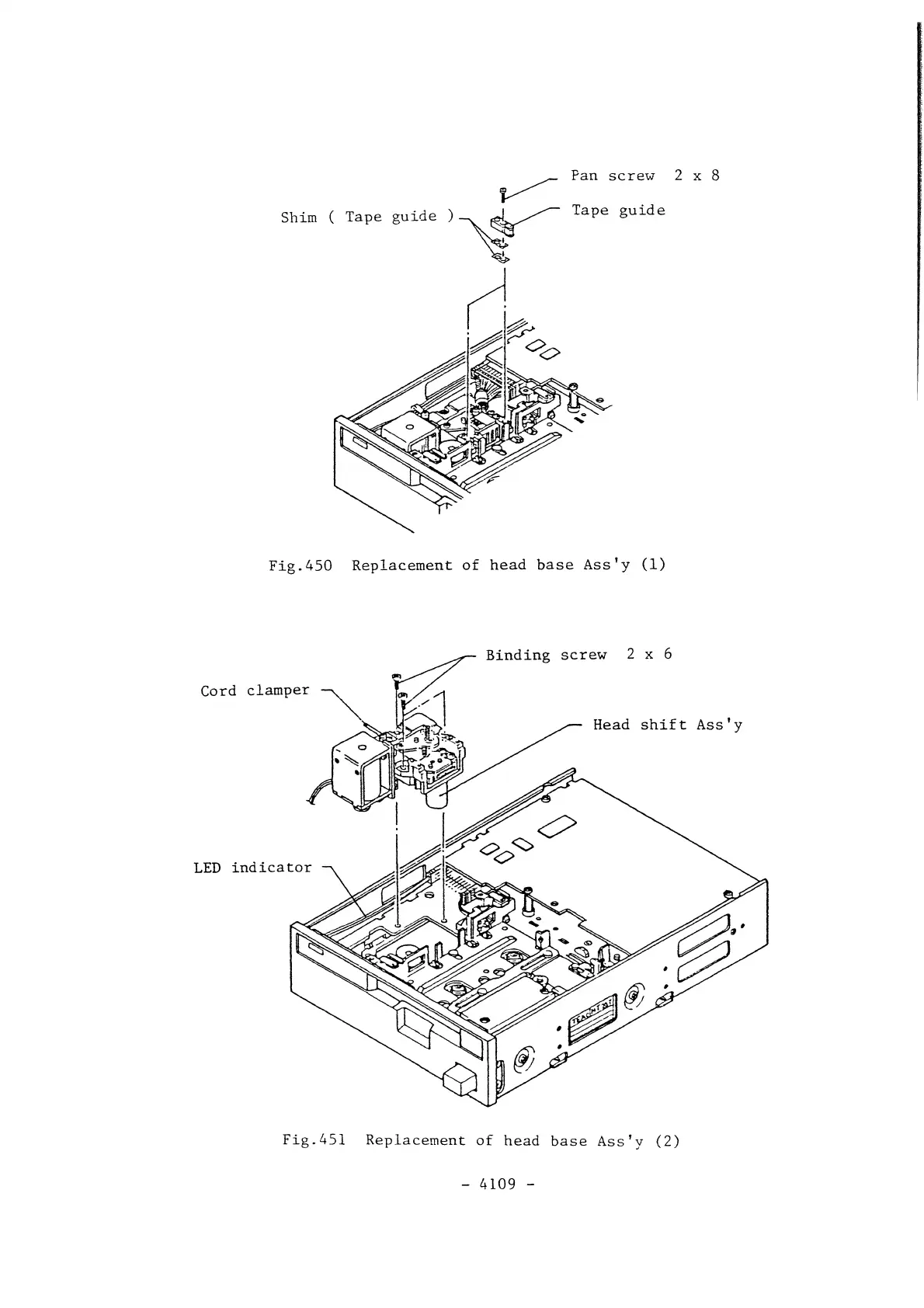

Fig.450
Replacement
of
head
base
Ass'y
(1)
Binding
screw
2 x 6
...
Cord
clamper
Head
shift
Ass'y
LED
indicator
Fig.451
Replacement
of
head
base
Ass'y
(2)
-
4109
-
