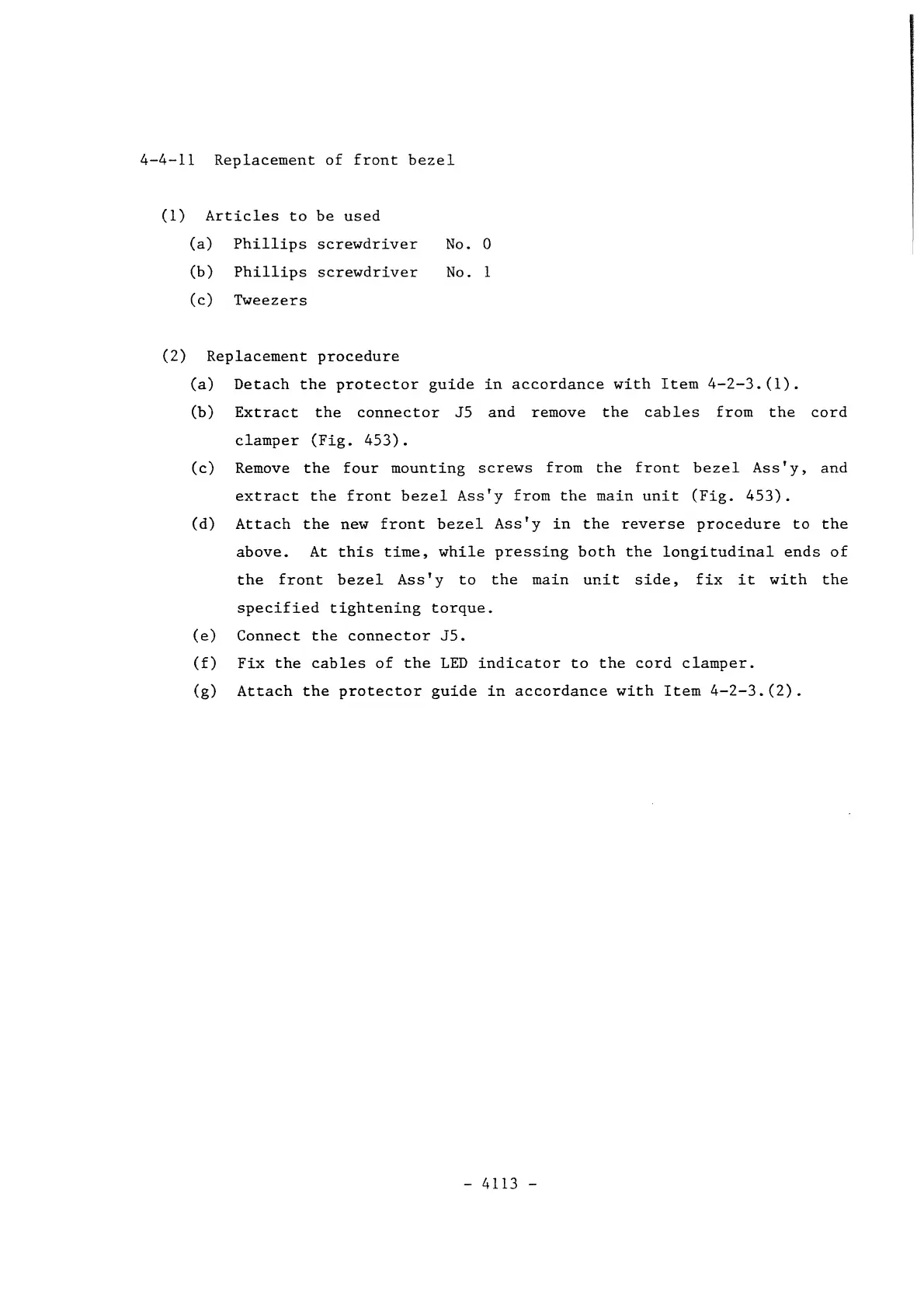

4-4-11 Replacement of front bezel
(1)
Articles to
be used
(a) Phillips screwdriver No.
0
(b) Phillips screwdriver No. 1
(c) Tweezers
(2) Replacement procedure
(a) Detach the protector guide in accordance with Item 4-2-3.(1).
(b) Extract the connector J5 and remove the cables from the cord
clamper (Fig. 453).
(c) Remove the four mounting screws from the front bezel Ass' y. and
extract the front bezel Ass'y from the main unit (Fig. 453).
(d) Attach the new front bezel Ass'y in the reverse procedure to the
above. At this time, while pressing both the longitudinal ends of
the front bezel Ass'y to the main unit side. fix it with the
specified tightening torque.
(e) Connect the connector J5.
(f) Fix the cables of the LED indicator to the cord clamper.
(g) Attach the protector guide in accordance with Item 4-2-3.(2).
- 4113 -
