4-4-12 Replacement of eject button
(1) Articles to be replaced
None
(2) Replacement procedure
(a) Extract the eject button from the main unit with the fingers
(Fig. 454).
(b) Attach the new ej ect button to the ej ect lever, and push in the
eject button up to the end.
After attaching the eject button, make sure that it won't be
disengaged from the eject lever easily.
Eject button Eject lever

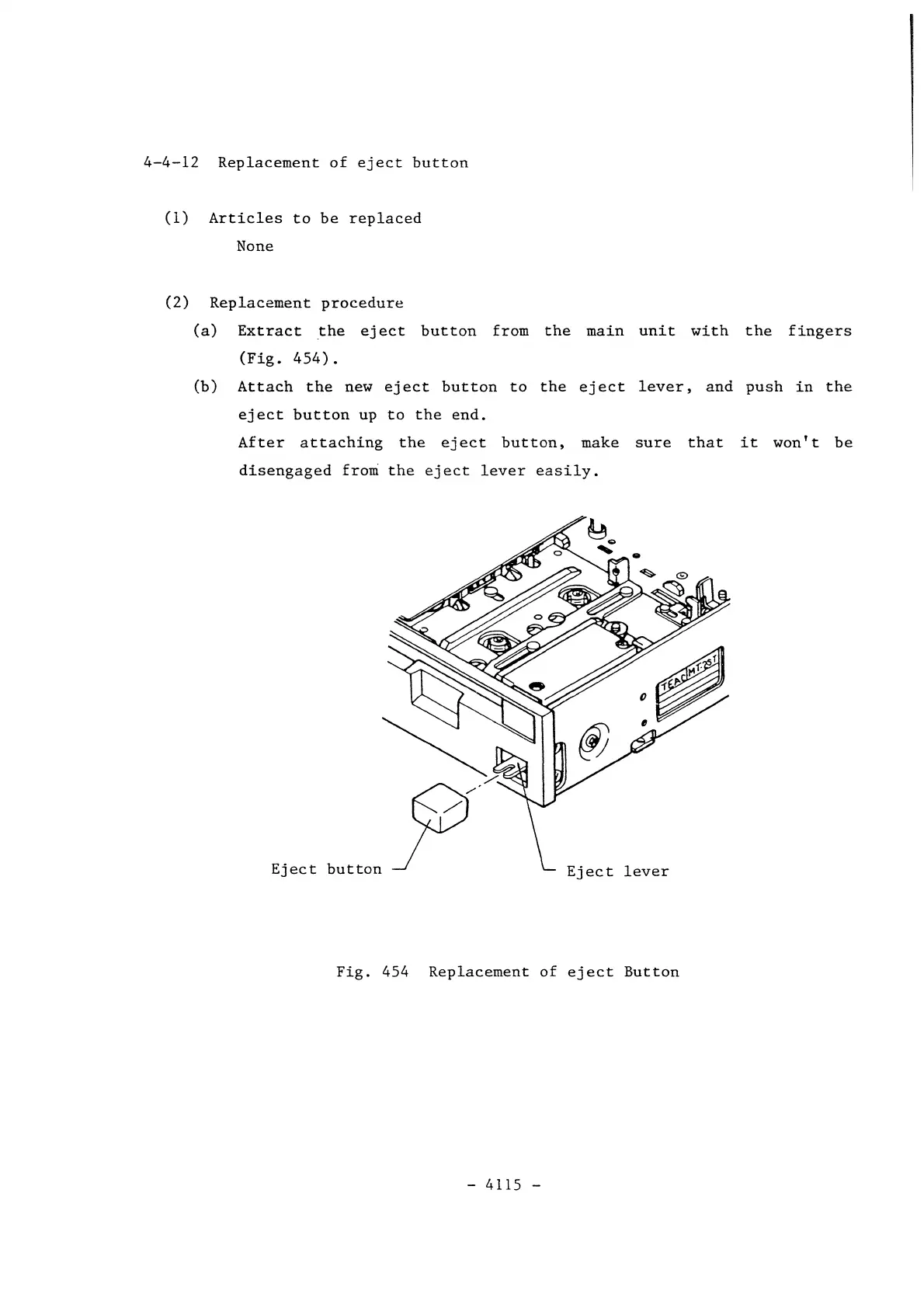

Fig. 454 Replacement of eject Button
- 4115 -
