(c) Marker detection mechanism
This mechanism consists of LED hole sensor Ass'y and sensor guide
Ass'y to detect the BOT/EOT holes (markers) of cassette tape.
LED built in the LED hole sensor Ass'y and photo transistor in the
sensor guide Ass I
y
detect the holes (markers) provided at both
ends of magnetic tape (Fig. 308).
DC solenoid
Head base
Magnetic head
Adjusting screws
~ Solenoid
Head base Ass'y
Ass'y

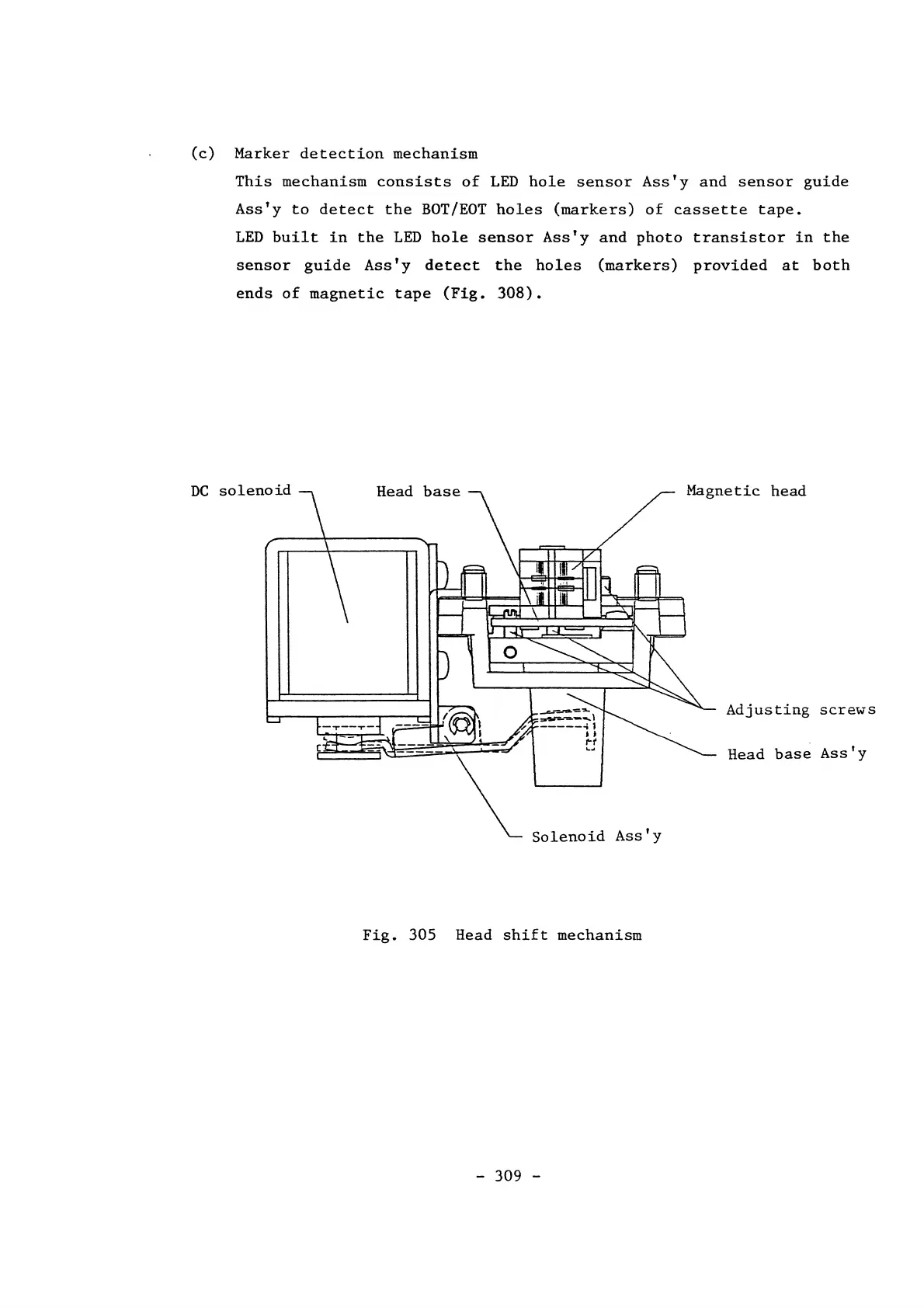

Fig. 305 Head shift mechanism
