5-1 Configuration
The configuration of the main components of MTU is shown below (Figs.
501 to 504).
The detailed parts lists are shown in para 5-2 and para 5-3.

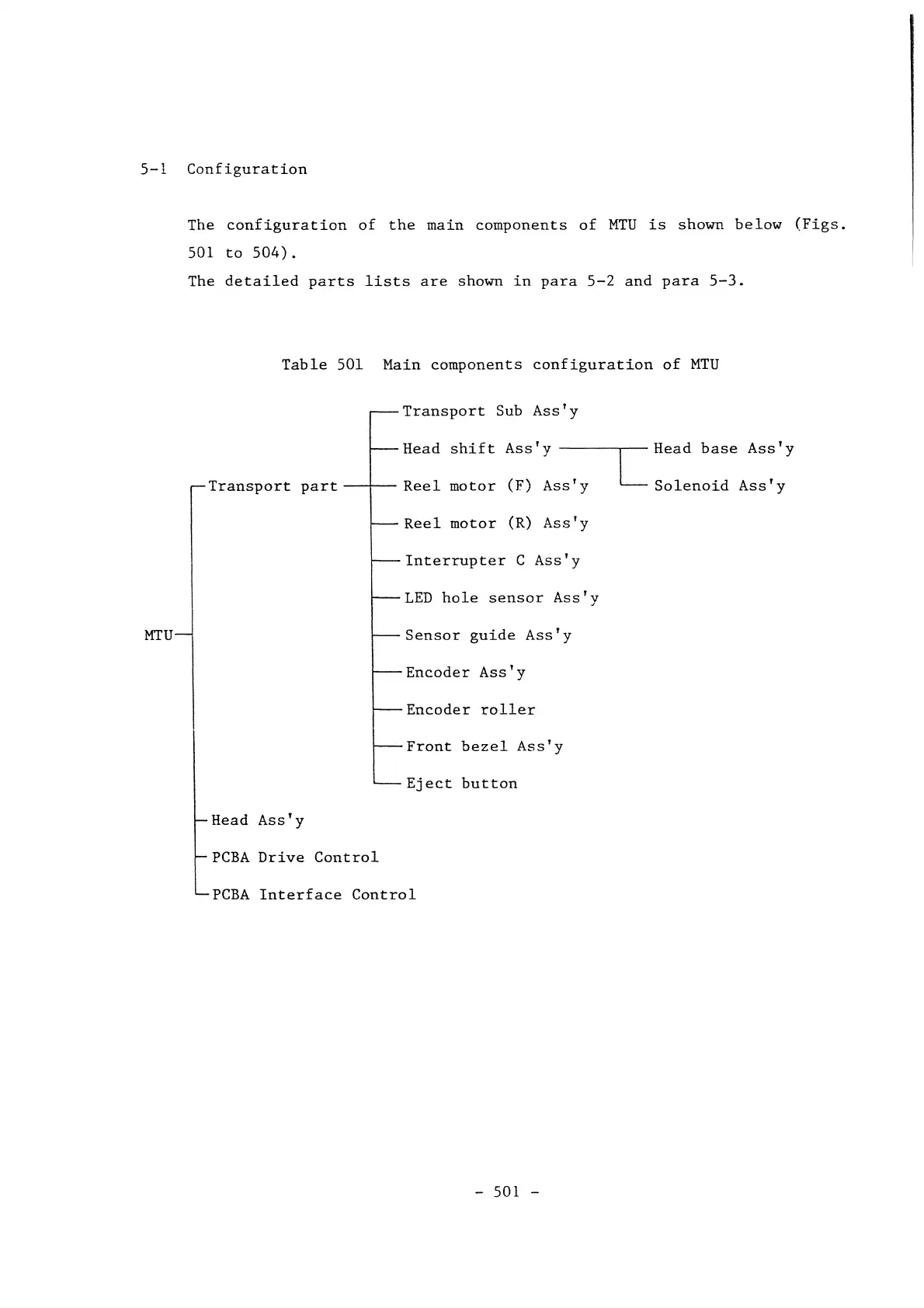

Table 501 Main components configuration of MTU
Transport Sub Ass'y
Head shift Ass' y ----,,----- Head base Ass' y
L Solenoid Ass' y
part --+-- Reel motor (F) Ass' y
rTransport
~J
Reel motor (R) Ass'y
Interrupter C ASs'y
LED hole sensor Ass'y
Sensor guide ASs'y
Encoder Ass'y
Encoder roller
Front bezel Ass'y
Eject button
Head ASs'y
PCBA Drive Control
PCBA Interface Control
