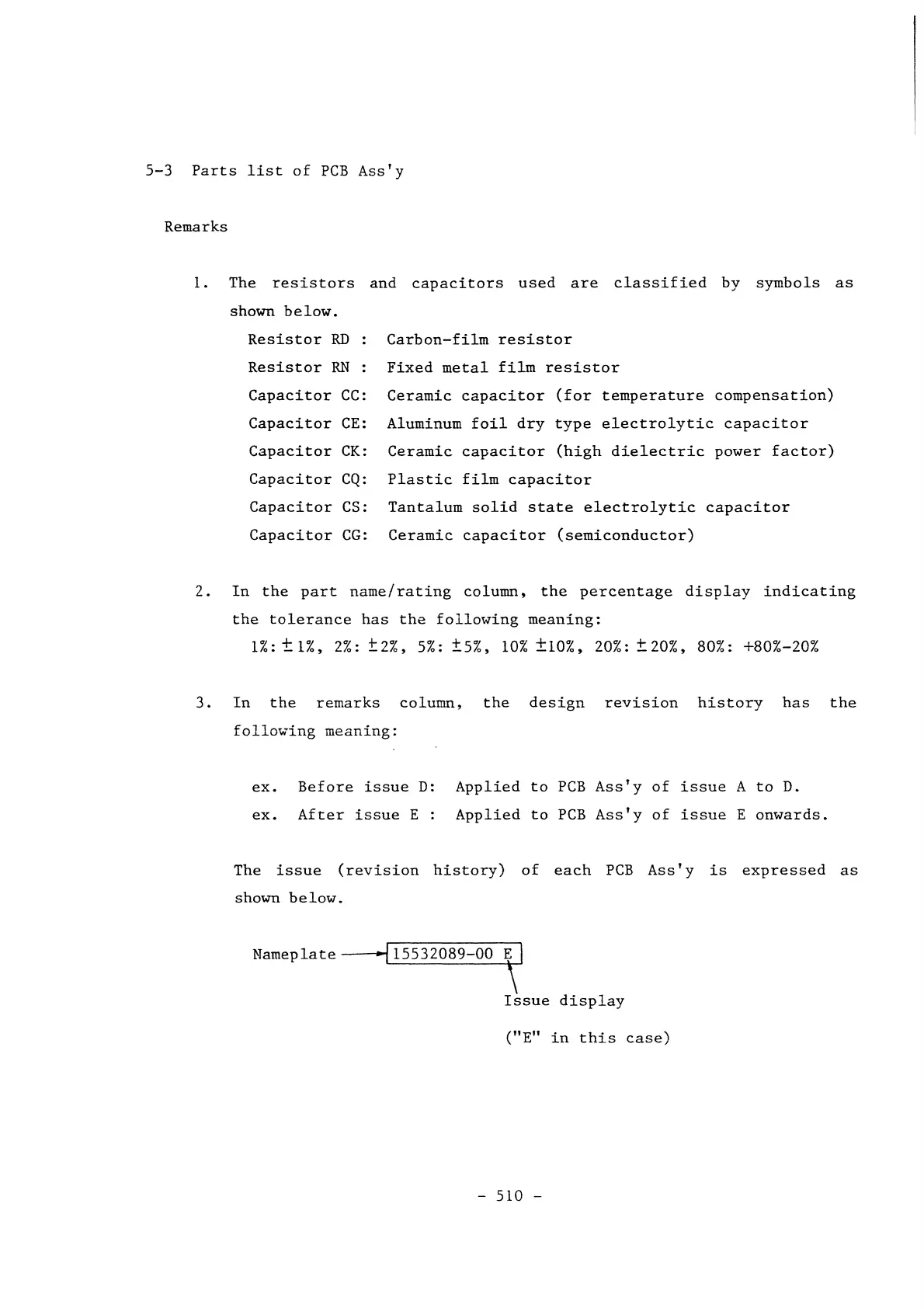

5-3 Parts list of PCB ASs'y
Remarks
1. The resistors and capacitors used are classified by symbols as
shown below.
Resistor RD
Resistor RN
Capacitor CC:
Capacitor CE:
Capacitor CK:
Capacitor
CQ:
Capacitor CS:
Capacitor CG:
Carbon-film resistor
Fixed metal film resistor
Ceramic capacitor (for temperature compensation)
Aluminum foil dry type electrolytic capacitor
Ceramic capacitor (high dielectric power factor)
Plastic film capacitor
Tantalum solid state electrolytic capacitor
Ceramic capacitor (semiconductor)
2. In the part name/rating column, the percentage display indicating
the tolerance has the follmving meaning:
1%: ± 1%, 2%: :t2%, 5%: :t5%, 10% ±10%, 20%: ±20%, 80%: +80%-20%
3. In the remarks column, the design revision history has the
following meaning:
ex. Before issue D: Applied to PCB Ass'y of issue A to D.
ex. After issue E: Applied to PCB Ass'y of issue E onwards.
The issue (revision history) of each PCB Ass' Y is expressed as
shown below.
Nameplate ----115532089-00
\1
Issue display
("E" in this case)
- 510 -
