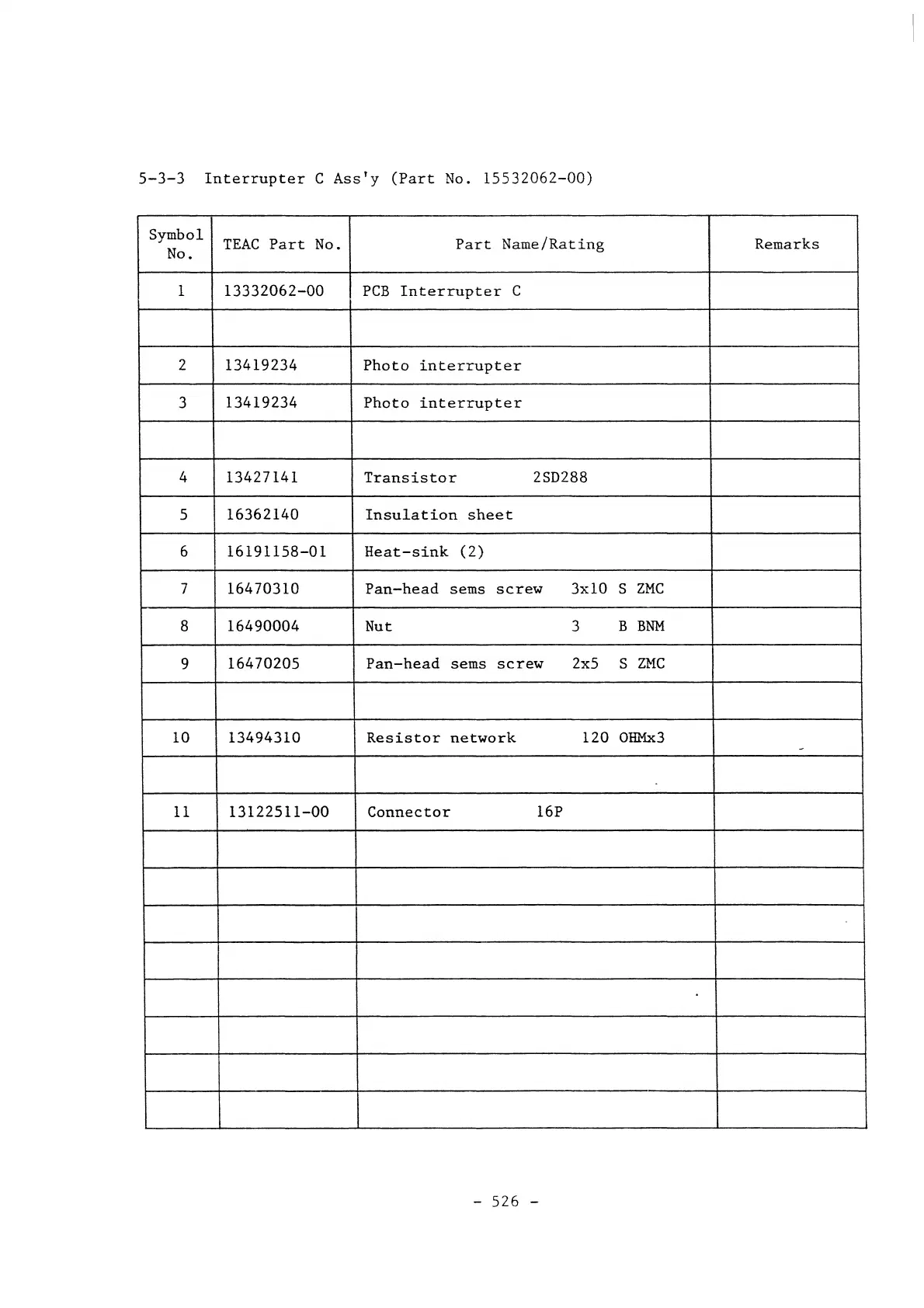

5-3-3 Interrupter C Ass'y (Part No. 15532062-00)
Symbol
TEAC Part No. Part Name/Rating
Remarks
No.
1
13332062-00 PCB
Interrupter C
2 13419234 Photo interrupter
3
13419234
interrupter
4
13427141
Transistor
2SD288
5
16362140
Insulation
sheet
6 16191158-01 Heat-sink (2)
7 16470310 Pan-head sems
screw 3x10
S
ZMC
8 16490004 Nut
3
B
BNM
9
16470205 Pan-head
sems screw
2x5 S
ZMC
10 13494310 Resistor network 120 OHMx3
-
11 13122511-00 Connector
16P
