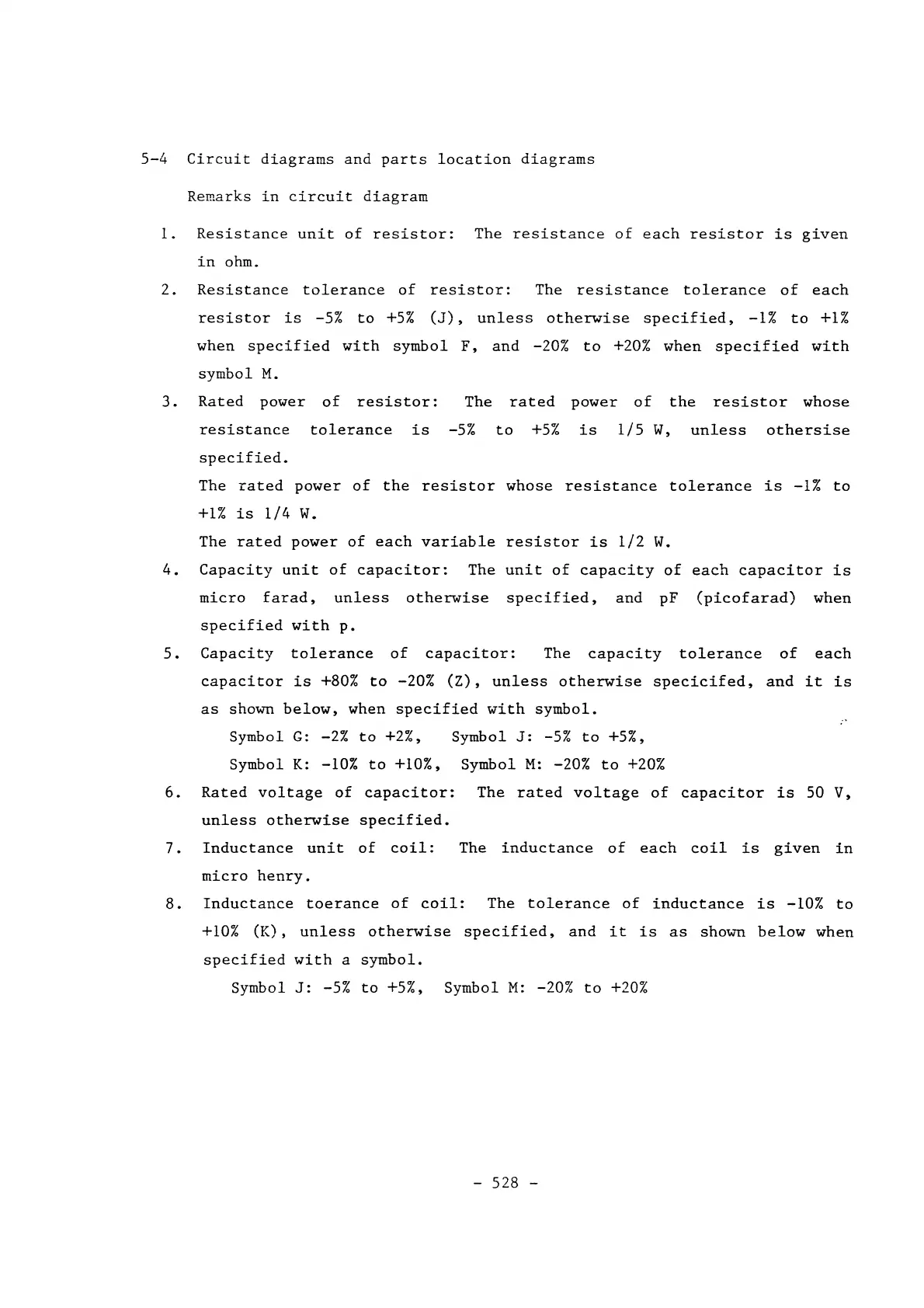

5-4
Circuit
diagrams
and
parts
location
diagrams
Remarks
in
circuit
diagram
I.
Resistance
unit
of
resistor:
The
resistance
of
each
resistor
is
given
in
ohm.
2.
Resistance
tolerance
of
resistor:
The
resistance
tolerance
of
each
3.
resistor
is
-5%
to
+5%
(J),
unless
otherwise
specified,
-1%
to
+1%
when
specified
with
symbol
F,
and
-20%
to
+20%
when
specified
with
symbol
M.
Rated
power
of
resistor:
resistance
tolerance
is
specified.
The
rated
-5%
to
+5%
power
of
the
resistor
whose
is
1/5
W,
unless
othersise
The
rated
power
of
the
resistor
whose
resistance
tolerance
is
-1%
to
+1%
is
1/4
w.
The
rated
power
of
each
variable
resistor
is
1/2
W.
4.
Capacity
unit
of
capacitor:
The
unit
of
capacity
of
each
capacitor
is
micro
farad,
unless
otherwise
specified,
and
pF
(picofarad)
when
specified
with
p.
5.
Capacity
tolerance
of
capacitor:
The
capacity
tolerance
of
each
capacitor
is
+80%
to
-20%
(Z),
unless
otherwise
specicifed,
and
it
is
as
shown
below,
when
specified
with
symbol.
Symbol
G:
-2%
to
+2%,
Symbol
J:
-5%
to
+5%,
Symbol
K: -10%
to
+10%,
Symbol
M:
-20%
to
+20%
6.
Rated
voltage
of
capacitor:
The
rated
voltage
of
capacitor
is
50
V,
unless
otherwise
specified.
7.
Inductance
unit
of
coil:
micro
henry.
The
inductance
of
each
coil
is
given
in
8.
Inductance
toerance
of
coil:
The
tolerance
of
inductance
is
-10%
to
+10%
(K),
unless
otherwise
specified,
and
it
is
as
shown
below
when
specified
with
a
symbol.
Symbol
J:
-5%
to
+5%,
Symbol
M:
-20%
to
+20%
-
