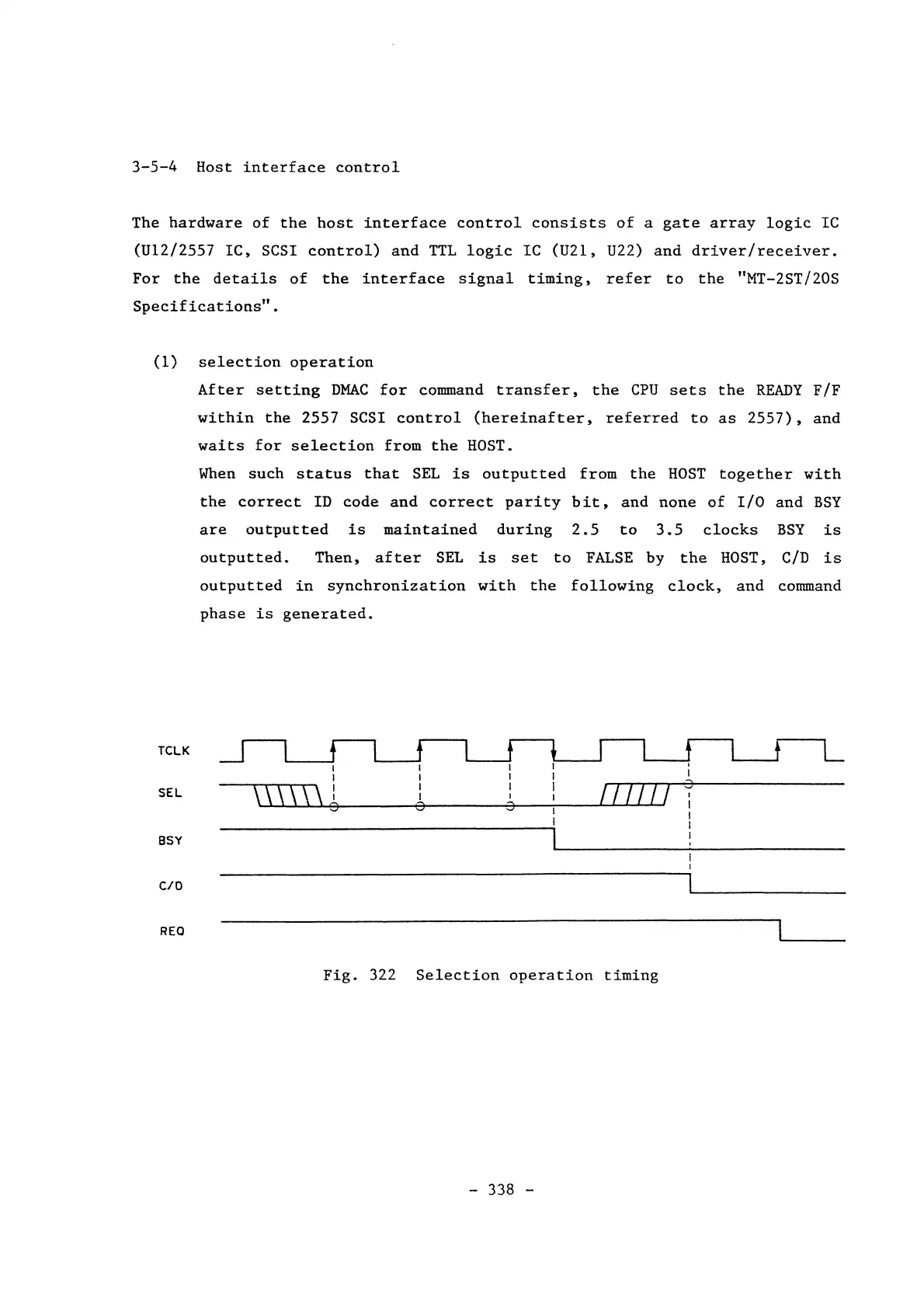

3-5-4
Host
interface
control
The
hardware
of
the
host
interface
control
consists
of
a
gate
array
logic
IC
(U12/2557
IC,
SCSI
control)
and
TTL
logic
IC
(U21,
U22)
and
driver/receiver.
For
the
details
of
the
interface
signal
timing.
refer
to
the
"MT-2ST/20S
Specifications".
(1)
selection
operation
TCLK
SEL
BSY
c/o
REO
After
setting
DMAC
for
command
transfer,
the
CPU
sets
the
READY
F/F
within
the
2557
SCSI
control
(hereinafter,
referred
to
as
2557),
and
waits
for
selection
from
the
HOST.
When
such
status
that
SEL
is
outputted
from
the
HOST
together
with
the
correct
ID
code
and
correct
parity
bit,
and
none
of
I/O
and
BSY
are
outputted
is
maintained
during
2.5
to
3.5
clocks
BSY
is
outputted.
Then,
after
SEL
is
set
to
FALSE
by
the
HOST. C/D
is
outputted
in
synchronization
with
the
following
clock,
and
command
phase
is
generated.
I
I
\\\\\\cb
I
I
I
I
o
I
o
111111
Fig.
322
Selection
operation
timing
-
338
-
3
