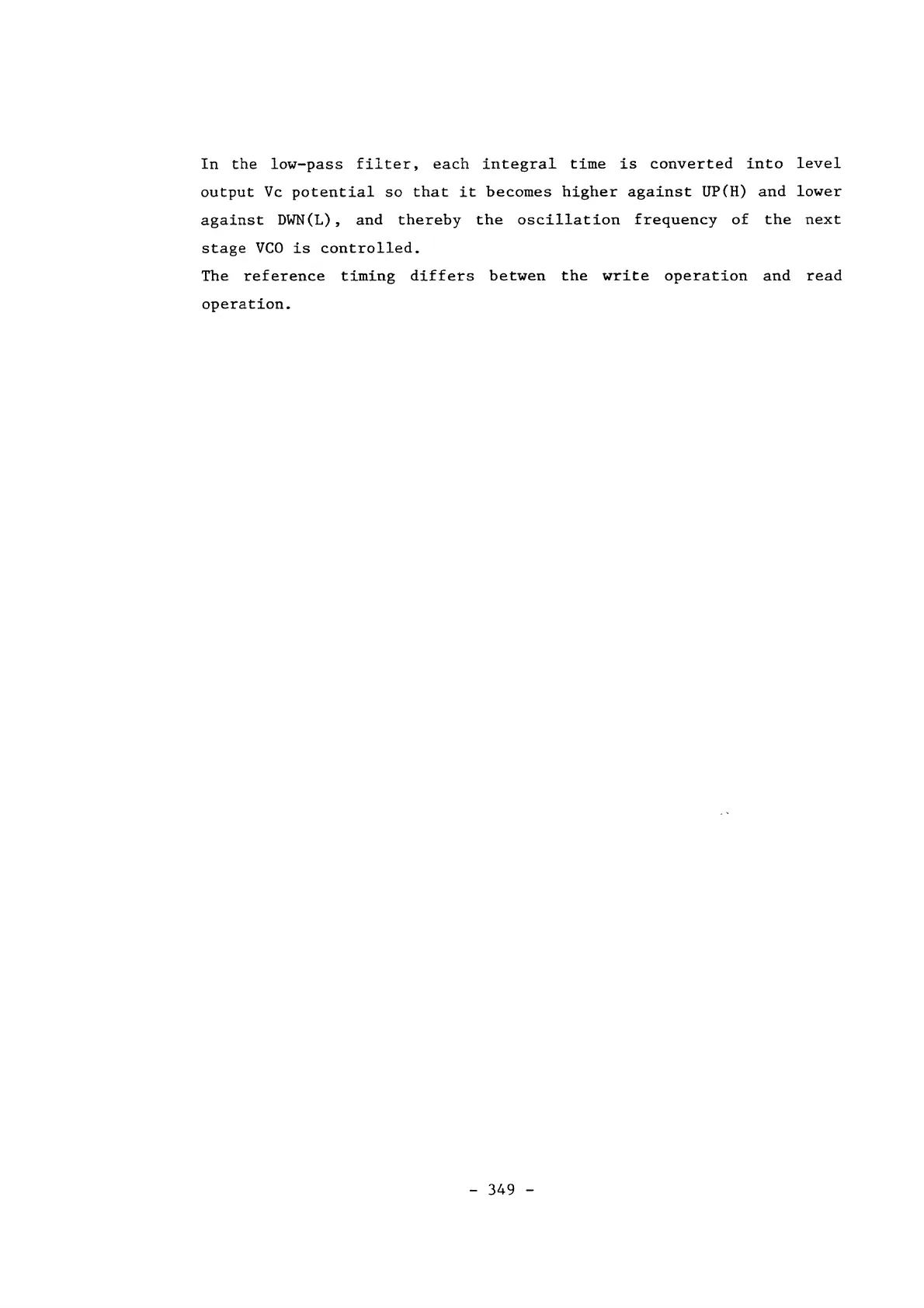

In the low-pass filter, each integral time is converted into level
output Vc potential so that it becomes higher against UP(H) and lower
against DWN(L) , and thereby the oscillation frequency of the next
stage VCO is controlled.
The reference timing differs betwen the write operation and read
operation.
