Teac MT-20D-IO - Page 82

J4-17 RD signal.-J
TP9
~ __ ~_R_e_ference timing
(a) "90 ips"
J4-17 RD signal ~
TP9
~ference timing
(b) "30 ips"
440 ns
1500 ns

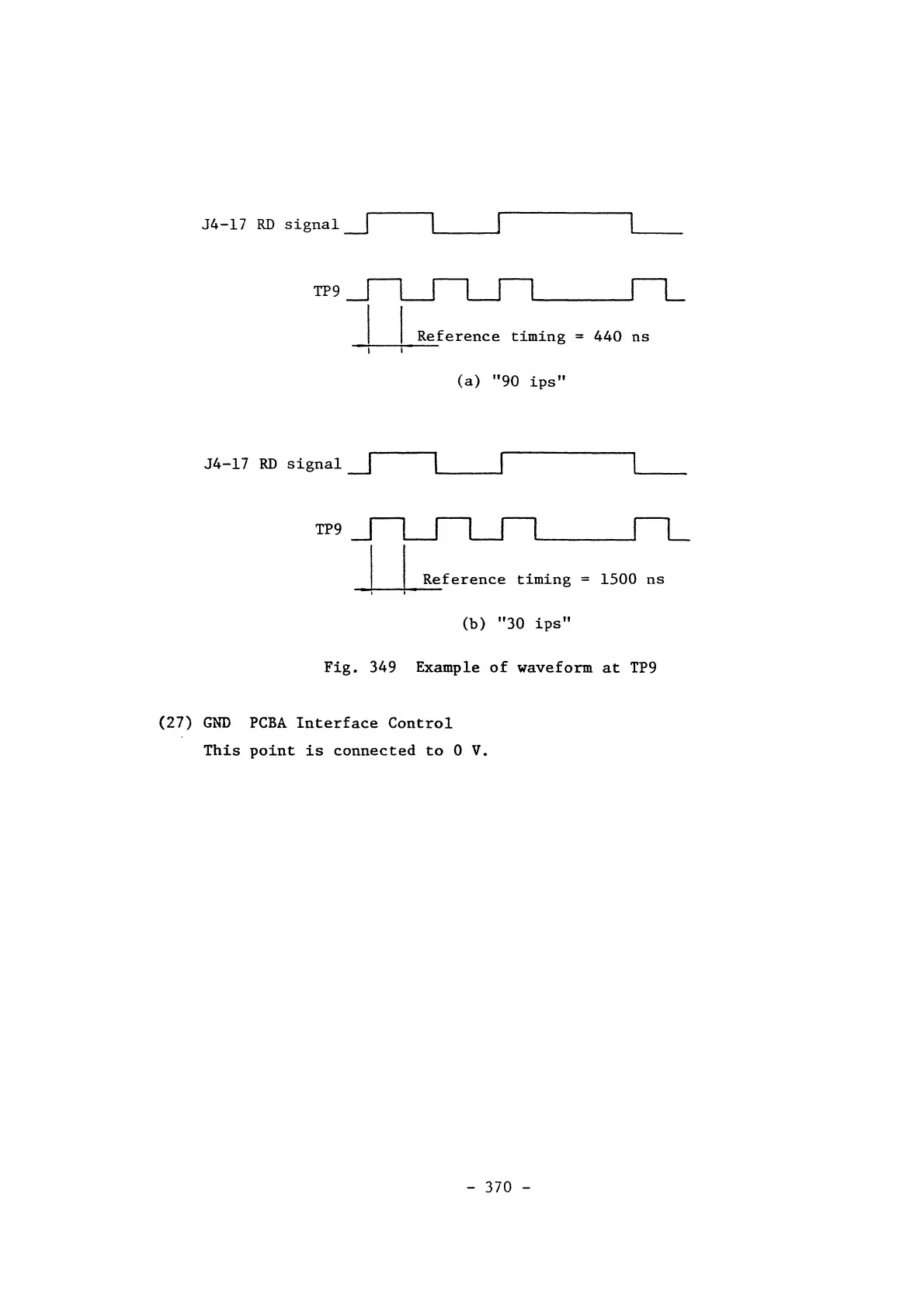

Fig. 349 Example of waveform at TP9
(27) GND PCBA Interface Control
This point is connected to 0 V.
