Teac PowerMax-500/B - Amplifier Rear Side; SYSTEM CONNECTION

To Next Page

To Previous Page

ENGLISH

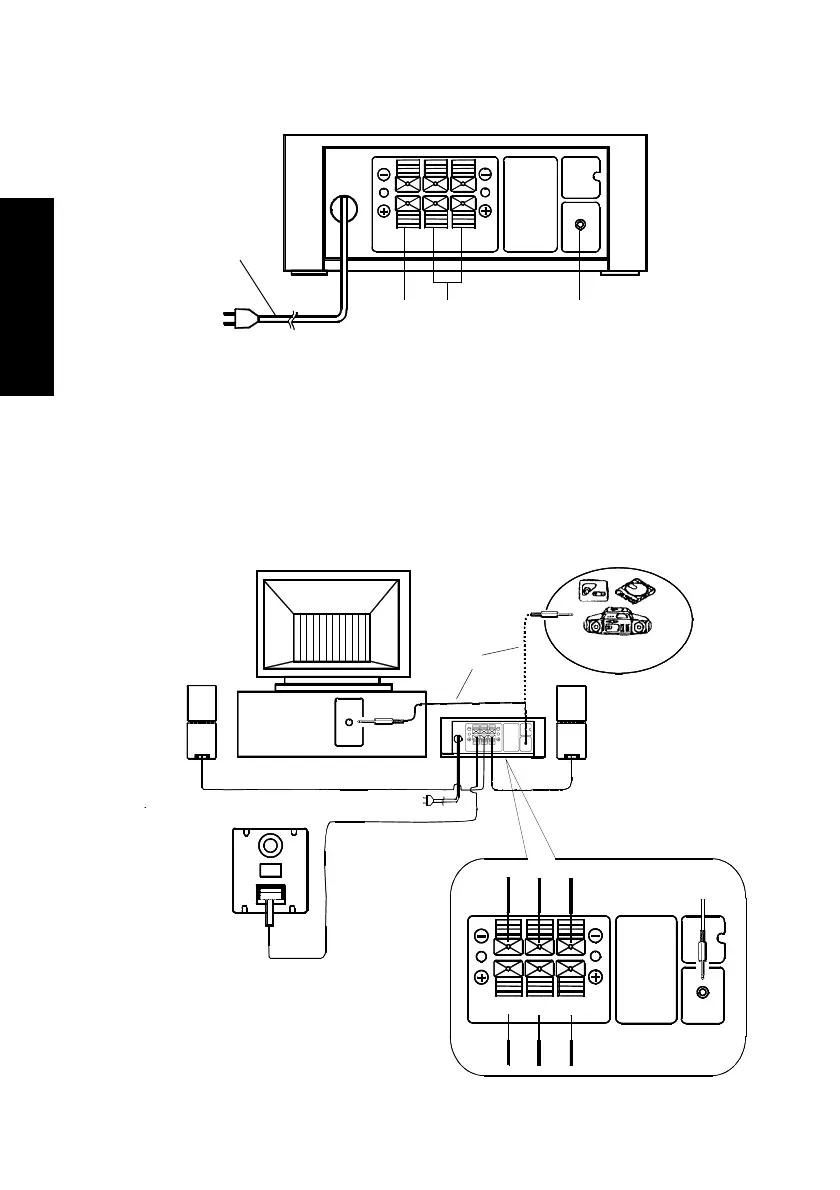

Location of Parts and the Controls of the Amplifier

➆

➇➈

➉

CD Player, LDP,

Walkman

Satellite

Speaker

Satellite

Speaker

Sound Card

Sound

Output

Super Woofer

Control Amplifier

AC Power

Stereo Cord

Super

Woofer

R L

Satellite Speaker

Stereo

Input

black

white

Rear Side

This terminal is used to connect

the super woofer if the super

woofer speaker is used.

10.

AC Power Cord

Plug the power cord into a stan-

dard AC wall outlet.

7. Stereo input (3.5mm stereo jack)

8. Satellite Speaker Terminal

Be sure to connect the satellite

speaker to both channels (left/

right) if they are used.

9. Super Woofer Speaker Terminal

SYSTEM CONNECTION
