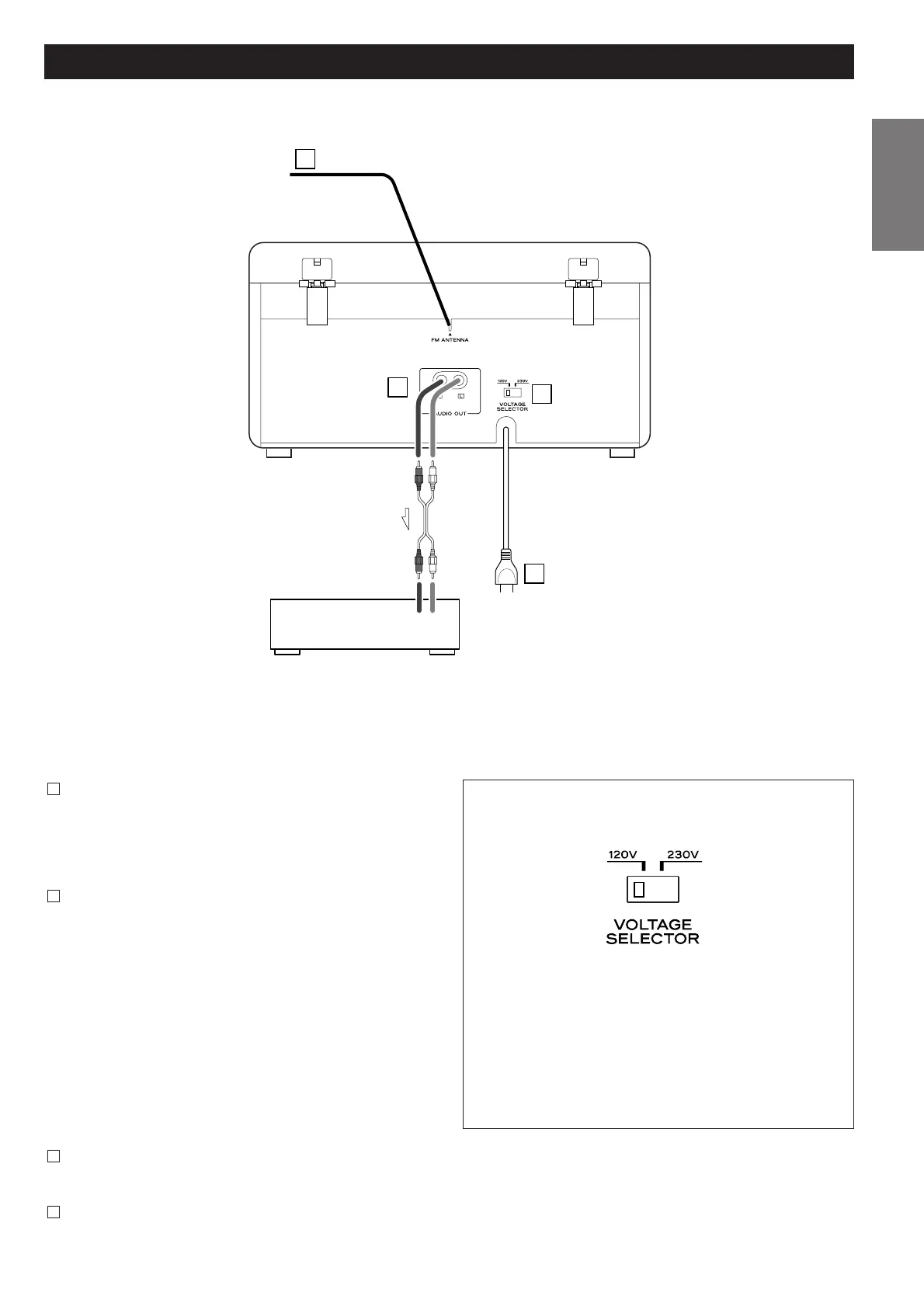

Connection
FM antenna
While in FM mode, tune in an FM station and extend the lead
to find the best position for the reception. This antenna may
need to be repositioned if you move your unit to a new
location.
LINE OUT jacks
You can connect this unit to an external amplifier, cassette
tape deck, etc.
Connect the component with RCA pin cords. Make sure to
connect the white plug to the white jacks (Left) and the red
plug to the red jacks (Right).
Note:
<
This output jack is a “line level” output. Do NOT connect to
the “PHONO” jack on your amplifier or distortion may occur.
<
The volume level of line output cannot be adjusted by the
VOLUME control knob of this unit. Use the volume control of
your amplifier to adjust the volume.
AC Power Cord
Plug this AC power cord into an AC wall socket.
VOLTAGE SELECTOR (General Export Models only)
d
c
b
a
Voltage Conversion
(General export models only)
Be sure to remove the power cord from the AC outlet before
repositioning the voltage converter switch.
1. Locate the voltage selector on the rear panel.
2. Using a flat-bladed screwdriver, set to the appropriate 230V
or 120V position according to your area.
IN NORTH AMERICA USE ONLY ON 120 V SUPPLY.
