Teac SL-D88 - Adjustment and Checks

SL-D88
4

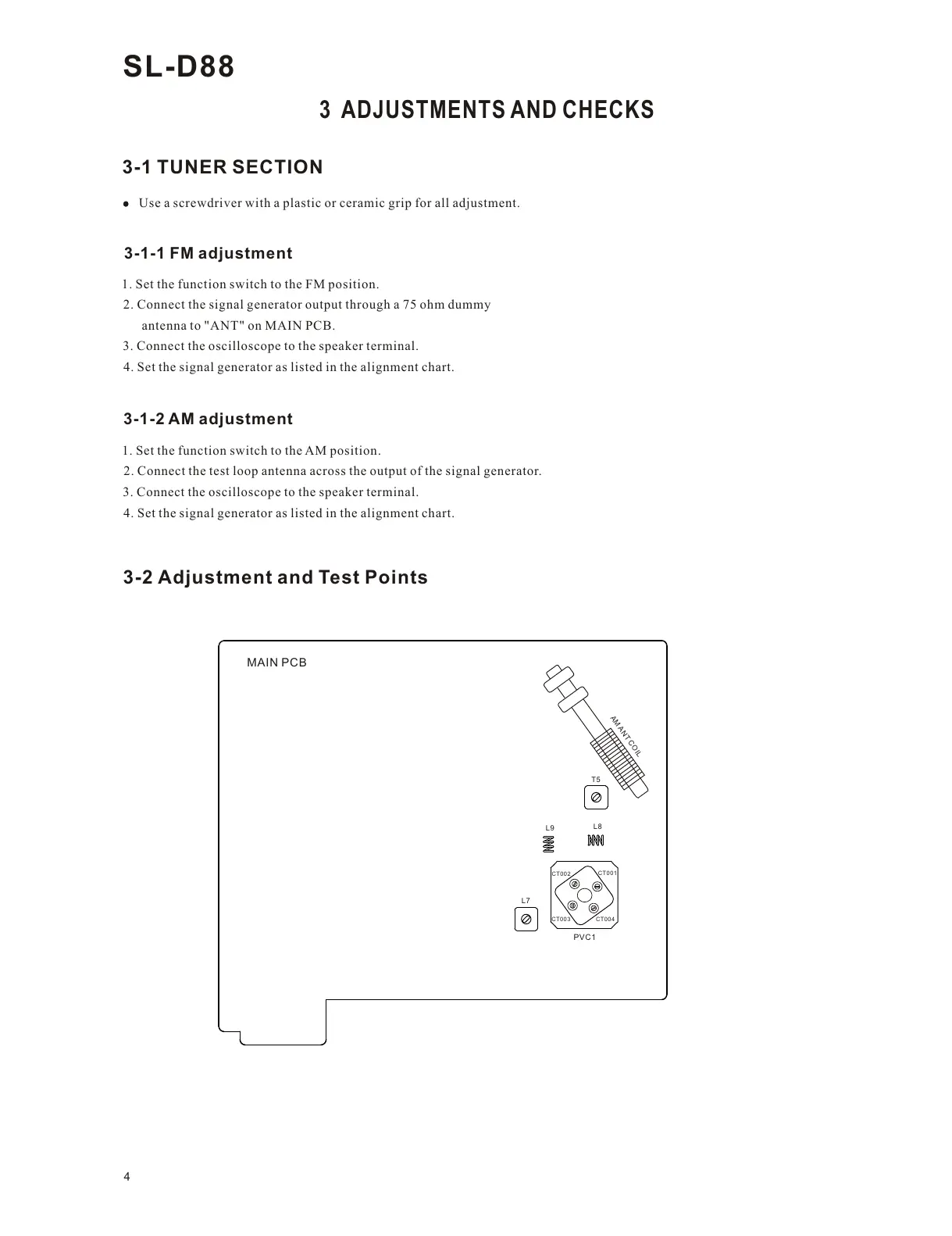

3 ADJUSTMENTS AND CHECKS
Use a screwdriver with a plastic or ceramic grip for all adjustment.
3-1 TUNER SECTION
1. Set the function switch to the AM position.
2. Connect the test loop antenna across the output of the signal generator.
3. Connect the oscilloscope to the speaker terminal.
4. Set the signal generator as listed in the alignment chart.
3-1-2 AM adjustment
1. Set the function switch to the FM position.
2. Connect the signal generator output through a 75 ohm dummy
3. Connect the oscilloscope to the speaker terminal.
4. Set the signal generator as listed in the alignment chart.
3-1-1 FM adjustment
antenna to "ANT" on MAIN PCB.
3-2 Adjustment and Test Points
MAIN PCB
L9
L8
PVC1
L7
T5
AM
ANT
CO
IL
CT002
CT001
CT004
CT003
