Ref. Description
1 Grease nipple – rear
bed chain roller bush
2 Grease nipples x 2 – at
ends of SC chute ram
3 Oil chains –
crossbeater drive
4 Grease nipple - shear
sprocket
Ref. Description
5 Grease nipple - bale lift
pivot pins - (where
fitted)
6 Grease PTO U.J.
& sliding members
7 Grease nipples x 4 – SC
swivel mechanism
Ref. Description
8 Grease nipple - cross
beater bearings –
behind crossbeater
drive sprocket on LHS
9 Grease nipple - bed
chain front roller
bearing
10 Layshaft bearing
Ref. Description
11 PTO – guards –
monthly
12 Grease nipple -
layshaft U.J. - monthly
14 Wheel bearings -
annually
15 Hitch coupling -
as required
13 Handbrake spindle -
3 monthly
1.
2.
3.
4.
7.
5.
6.
1.
8.
8.
9.
10.
11.
12.
14.
14.
15.
For more detailed information see maintenance section
6

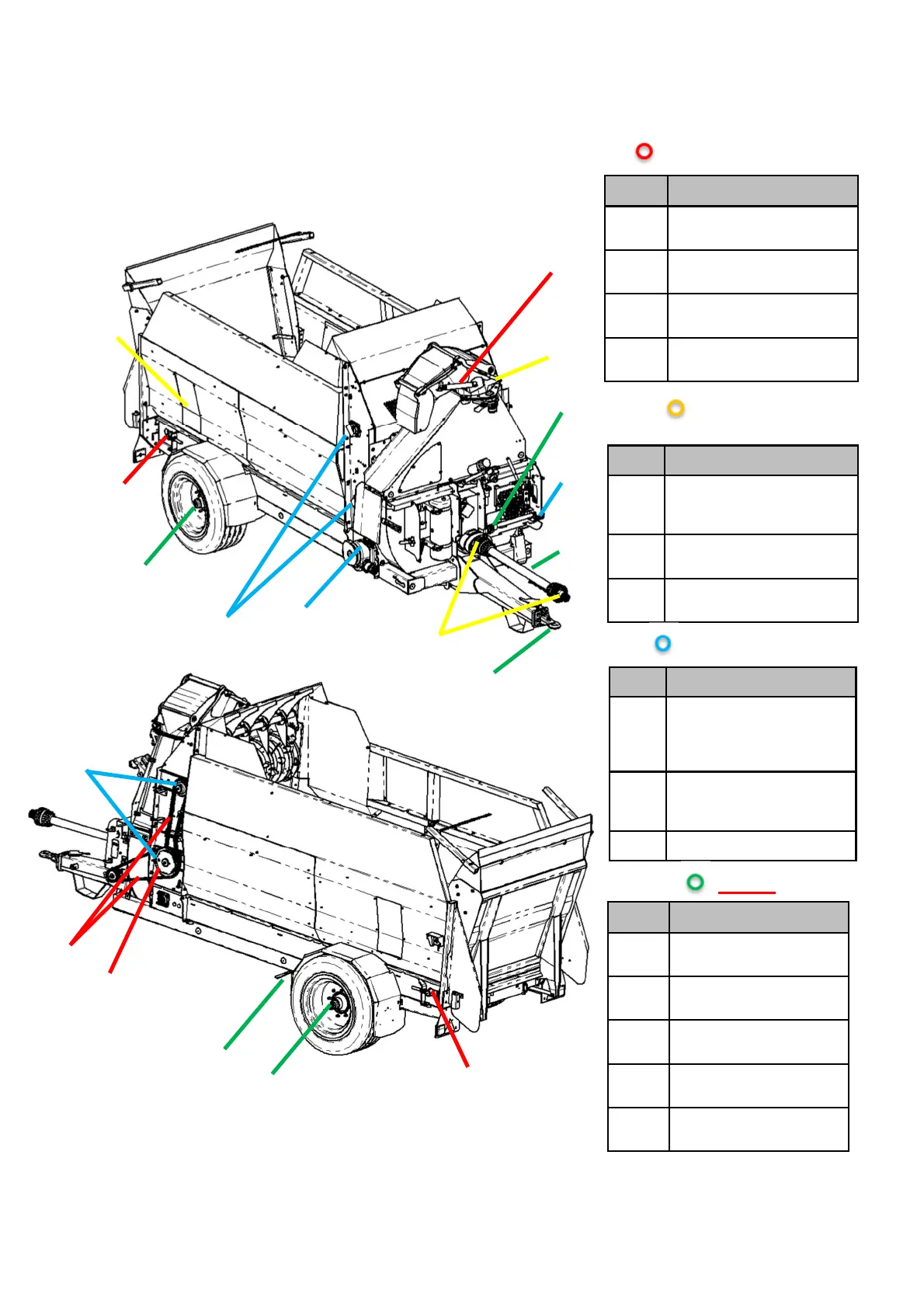

Lubrication Schedule
Tomahawk 1010
Twice Weekly
Weekly
Fortnightly
Other
Notes: 1. Frequencies based on typical use - 15 hours per week - adjust frequencies based on usage
2. Use good quality semi-solid grease for all procedures detailed above
13.
