Teagle Tomahawk 7100 User Manual

Ref. Description
1 Grease nipple – rear
bed chain roller bush
2 Grease nipples x 2 – at
ends of SC chute ram
3 Oil chain – crossbeater
drive
4 Grease nipple - shear
sprocket
Ref. Description
5 Oil chain - bed chain
drive
6 Grease PTO U.J.
& sliding members
7 Grease nipples x 4 – SC
swivel mechanism
Ref. Description
8 Grease nipple -
crossbeater bearings –
behind crossbeater
drive sprocket on LHS
9 Grease nipple - bed
chain front roller
bearing
10 Layshaft bearing
Ref. Description
11 PTO guards - monthly
12 Grease nipple –
layshaft U.J. - monthly
For more detailed information see maintenance section
1.
9.
5.
6.
11.
10.
12.
7.
2.
3.
4.
8.
9.
1.
8.
2
Notes: 1. Frequencies based on typical use - 15 hours per week - adjust frequencies based on usage
2. Use good quality semi-solid grease for all procedures detailed above
Other
Fortnightly
Weekly
Twice Weekly

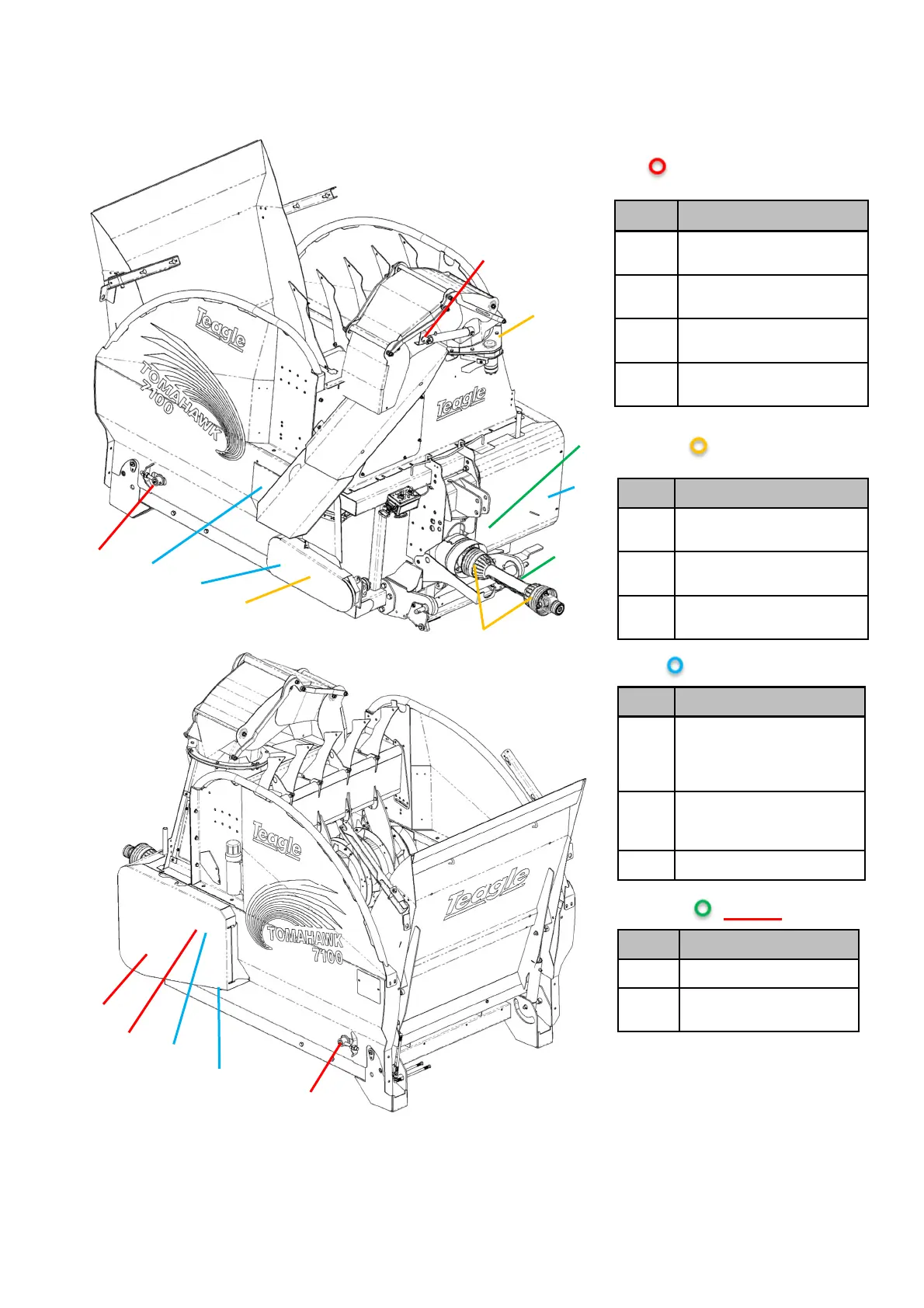

Lubrication Schedule
Tomahawk 7100 & 7150
