Teagle Tomahawk 7100 User Manual

Ref. Description
1 Grease nipple – rear
bed chain roller bush
2 Grease nipples x 2 – at
ends of SC chute ram
3 Oil chain – crossbeater
drive
4 Grease nipple - shear
sprocket
Ref. Description
5 Oil chain - bed chain
drive
6 Grease PTO U.J.
& sliding members
7 Grease nipples x 4 – SC
swivel mechanism
Ref. Description
8 Grease nipple -
crossbeater bearings –
behind crossbeater
drive sprocket on LHS
9 Grease nipple - bed
chain front roller
bearing
10 Layshaft bearing
Ref. Description
11 PTO – guards -
monthly
12 Grease nipple –
layshaft U.J. - monthly
13 Wheel bearings -
annually
14 Hitch coupling –
as required
For more detailed information see maintenance section
3

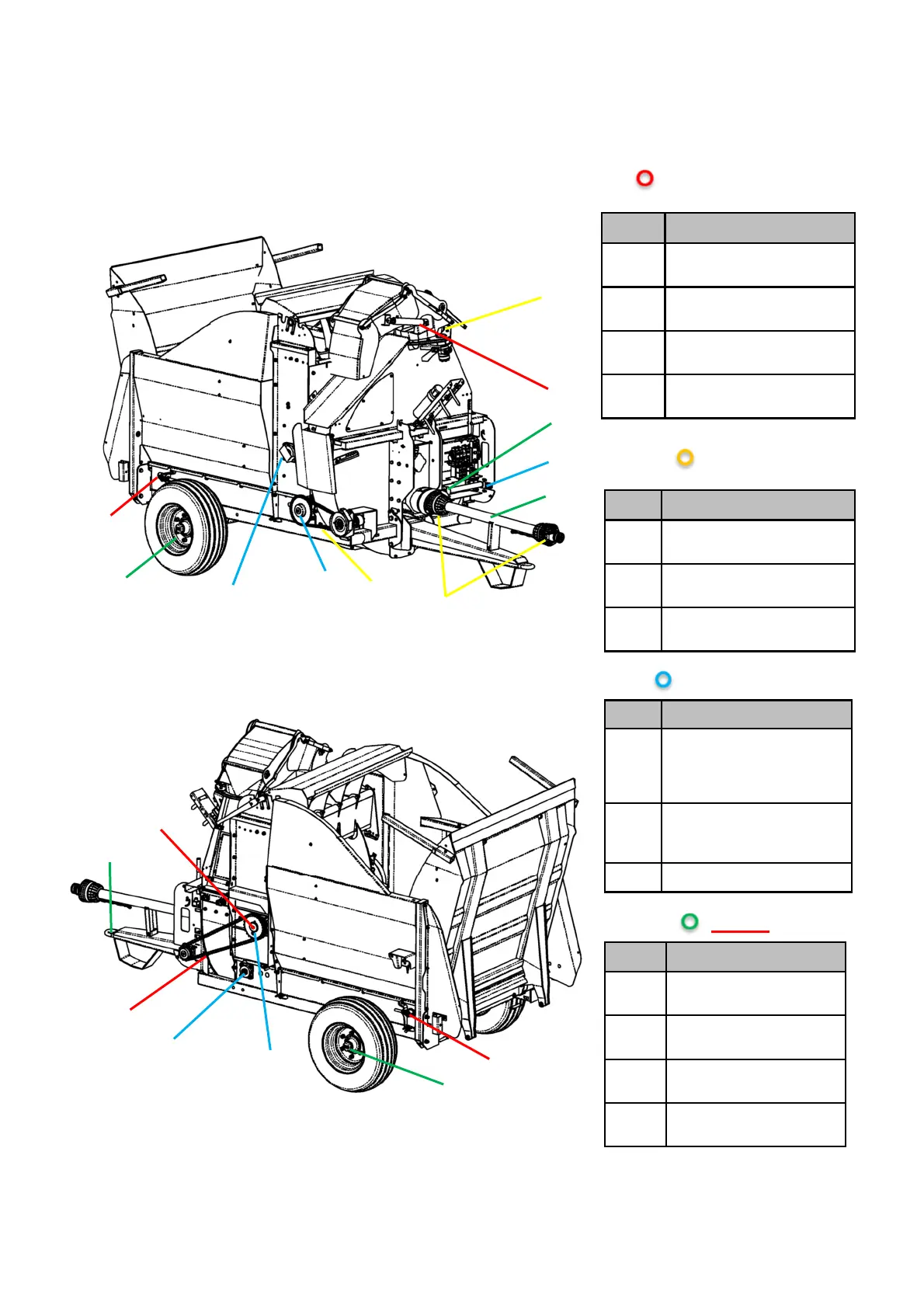

Lubrication Schedule
Tomahawk 8100, 8150 & 8500
Twice Weekly
Weekly
Fortnightly
Other
Notes: 1. Frequencies based on typical use - 15 hours per week - adjust frequencies based on usage
2. Use good quality semi-solid grease for all procedures detailed above
1.
2.
5.
6.
7.
8.
9.
10.
11.
12.
13.
3.
4.
14.
9.
8.
13.
1.
