Teagle Tomahawk 7100 User Manual

Ref. Description
1 Grease nipple – rear
bed chain roller bush
2 Grease nipples x 2 – at
ends of SC chute ram
3 Grease nipple - shear
sprocket
Ref. Description
4 Oil chain - bed chain
drive
5 Grease PTO U.J.
& sliding members
6 Grease nipples x 4 – SC
swivel mechanism
Ref. Description
7 Grease nipples -
crossbeater bearings
8 Grease nipple - bed
chain front roller
bearing
9 Layshaft bearing
Ref. Description
10 PTO – guards -
monthly
11 Grease nipple –
layshaft U.J. - monthly
12 Wheel bearings -
annually
13 Hitch coupling –
as required
14 Fill chain oiler - as
required
16 Brake levers - as re-
quired
15 Handbrake spindle - 3
monthly
For more detailed information see maintenance section
4

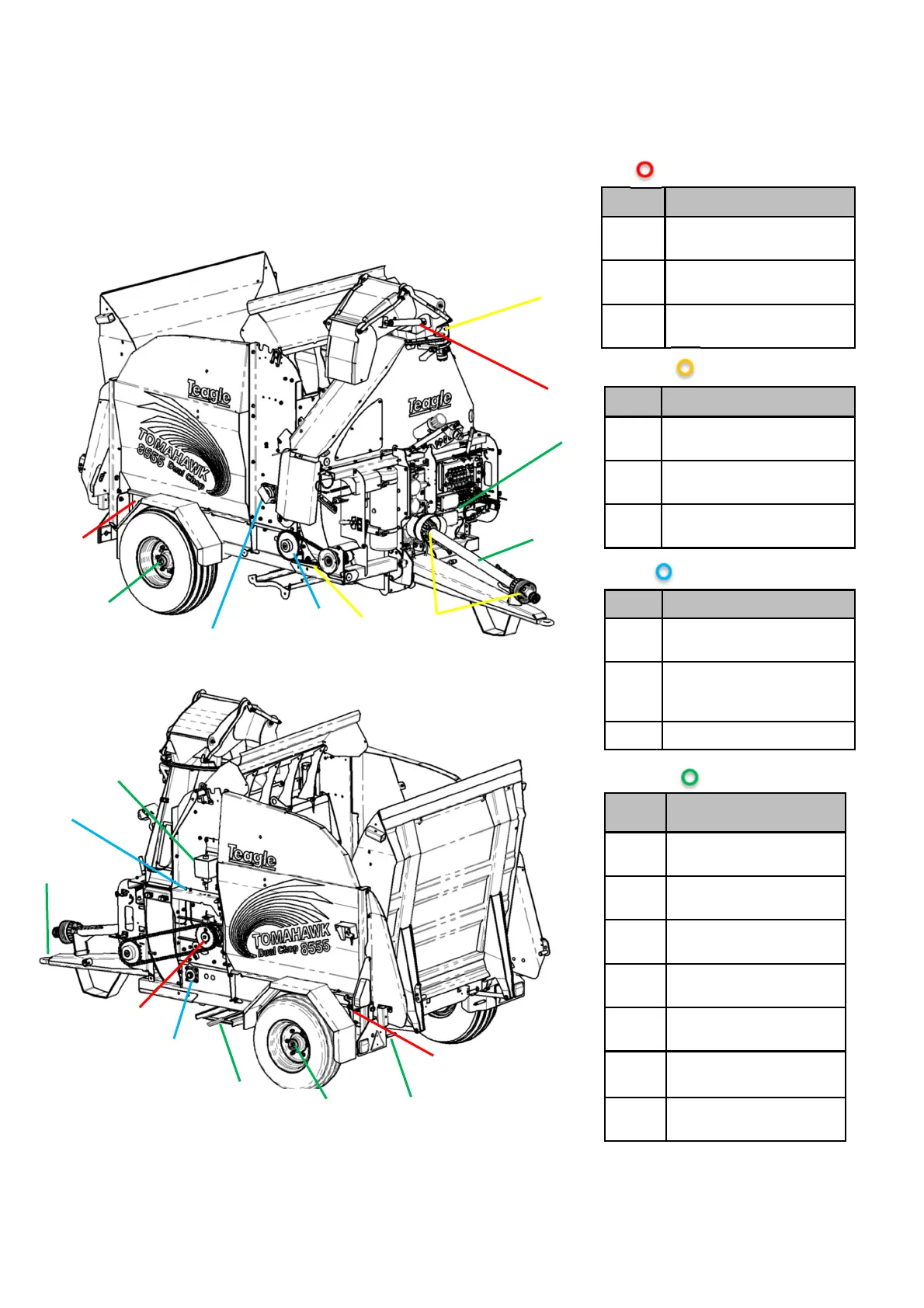

Lubrication Schedule
Tomahawk 8555
Twice Weekly
Weekly
Fortnightly
Other
Notes: 1. Frequencies based on typical use - 15 hours per week - adjust frequencies based on usage
2. Use good quality semi-solid grease for all procedures detailed above
1.
2.
4.
5.
6.
7.
8.
10.
11.
12.
14.
3.
13.
8.
7. & 9.
15.
1.
12.
16.
