Teagle Tomahawk 808S - Electronic Controls Parts (Large Raised Flat Buttons)

28

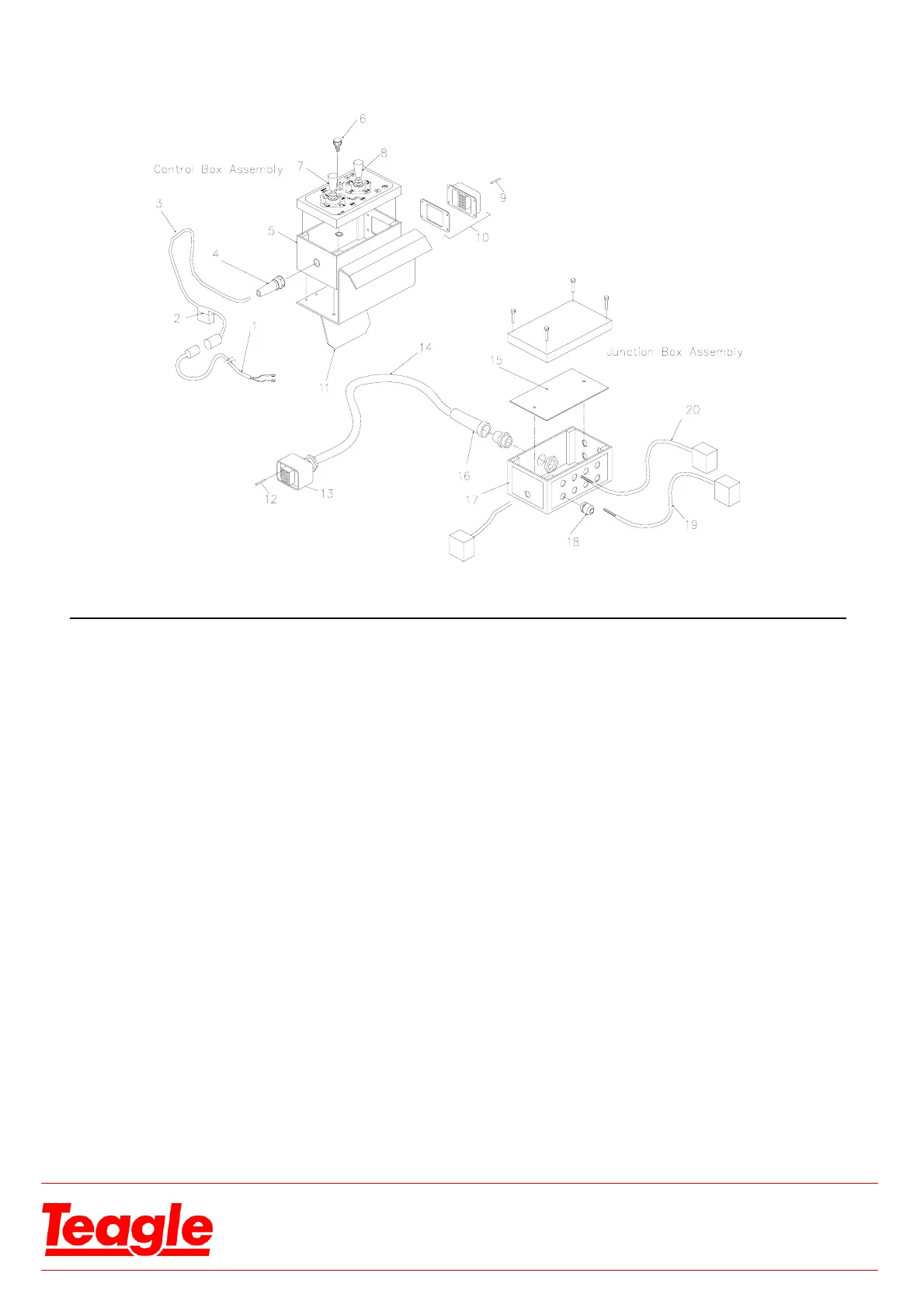

10.11 ELECTRONIC CONTROLS - LARGE RAISED FLAT BUTTONS
Standard Swivel Dual
Ref Description Chute Chute Chop & TC Q’ty Associated Components Part No. Q’ty
Control Box Assembly SC3580 SC3579 SC3579 1
1 Battery to cab cable SC3529 SC3529 SC3529 1
2 7.5 A fuse SC3535 SC3535 SC3535 1
3 Power cable SC3503 SC3503 SC3503 1
4 Cable gland SC3504 SC3504 SC3504 1
5 Enclosure SC3506 SC3506 SC3506 1
Base SC3506A SC3506A SC3506A 1
Lid SC3506D SC3506C SC3506B 1
6 Potentiometer SC3513 SC3513 SC3513 1
7/8 Joystick SC3510 SC3510 SC3510 1 Micro-switches SC3566 4
9 Male crimp contacts SC3516 SC3516 SC3516 18
10 Control box socket SC3515 SC3515 SC3515 1 M4 x 16 Pan Head FAS2430S 4
M4 Locknut FAS2329S 4
11 Support Bracket SC3538 SC3538 SC3538 1 M4 x 16 Pan Head FAS2430S 4
M4 Locknut FAS2329S 4
Junction Box Assembly SC3583 SC3582 SC3581 1
12 Crimp contacts SC3519 SC3519 SC3519 18
13 Cable socket SC3518 SC3518 SC3518 1
14 18 Core cable assy 4m SC3522 SC3522 SC3522 1 (Standard)
18 Core cable assy 5m SC3592 SC3592 SC3592 1 (Optional)
18 Core cable assy 7m SC3594 SC3594 SC3594 1 (Optional)
15 PCB (Large Controls) SC3575 SC3575 SC3575 1 M4 x 3/8 Pan Head FAS2431 2
16 Cable gland SC3524 SC3524 SC3524 1
17 Enclosure SC3525 SC3525 SC3525 1 M4 x 16 Pan Head FAS2430S 4
M4 Locknut FAS2329S 4
18 Sealing Gland. SC3537 -- -- 7
-- SC3537 -- 9
-- -- SC3537 13
19 Solenoid cable - long. SC3548 SC3548 SC3548 2 Connector screw SC3585 2
20 Solenoid cable -short. SC3547 SC3547 SC3547 5-11 Connector screw SC3585 5-11
