Teagle Tomahawk 8500 User Manual

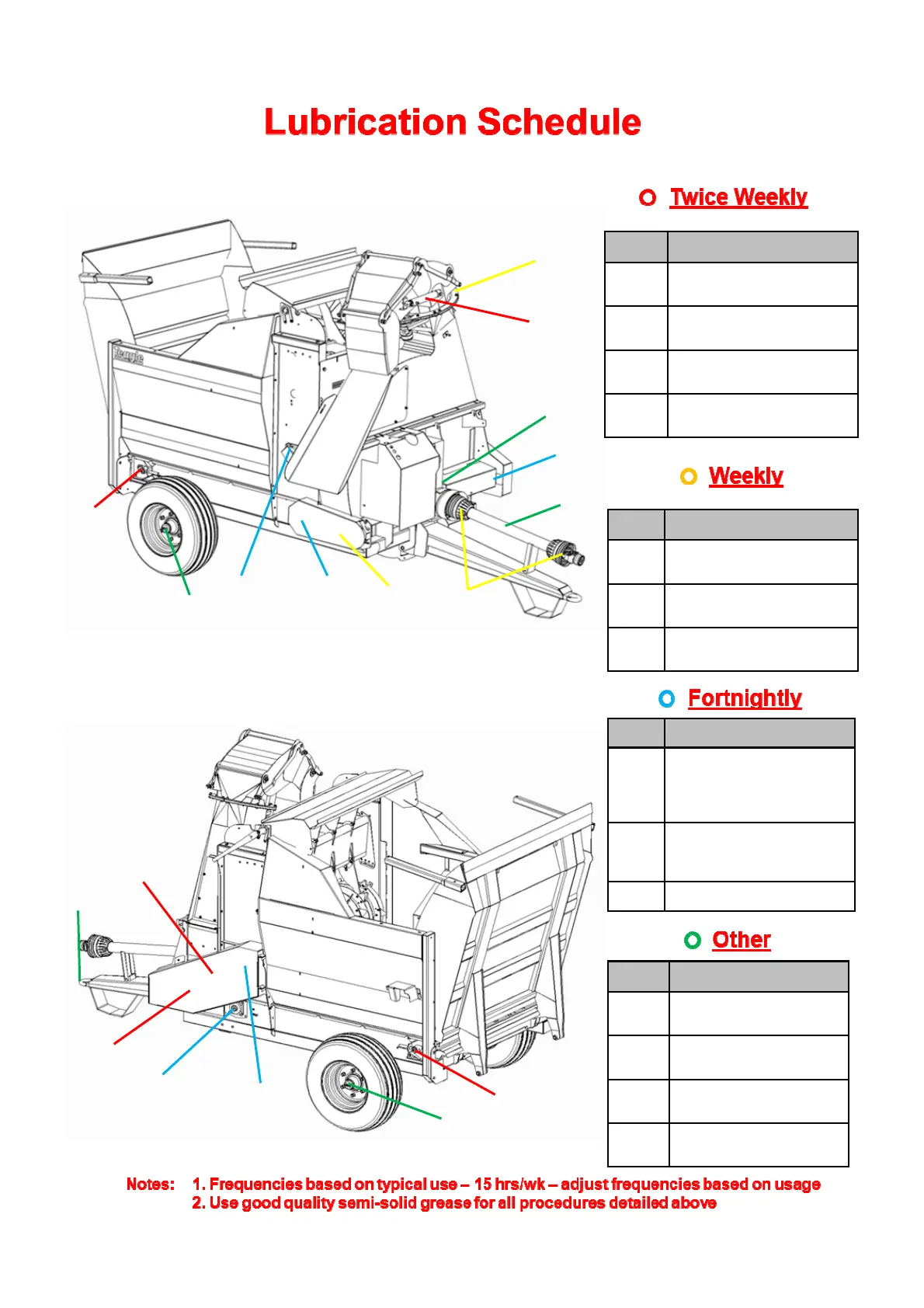

Ref. Description
1 Grease Nipple – Rear
Bed Chain Roller Bush
2 Grease Nipples x 2 – At
ends of SC Chute Ram
3 Oil Chain – Crossbeater
drive
4 Grease Nipple - Shear
Sprocket
Ref. Description
5 Oil Chain - Bed chain
drive
6 PTO – UJ
& Sliding Members
7 Grease Nipples x 4 –
SC Swivel mechanism
Ref. Description
8 Grease Nipple - Cross
beater bearings –
Behind crossbeater
drive sprocket on LHS
9 Grease Nipple - Bed
Chain front roller
Bearing
10 Layshaft Bearing
Ref. Description
11 PTO – Guards -
Monthly
12 Grease Nipple –
Layshaft UJ - Monthly
13 Wheel Bearings -
Annually
14 Ring Hitch –
As required
1.
2.
5.
6.
7.
8.
9.
10.
11.
12.
13.
3.
4.
14.
9.
8.
13.
1.
For More Detailed Information See Pages 8 to 11
