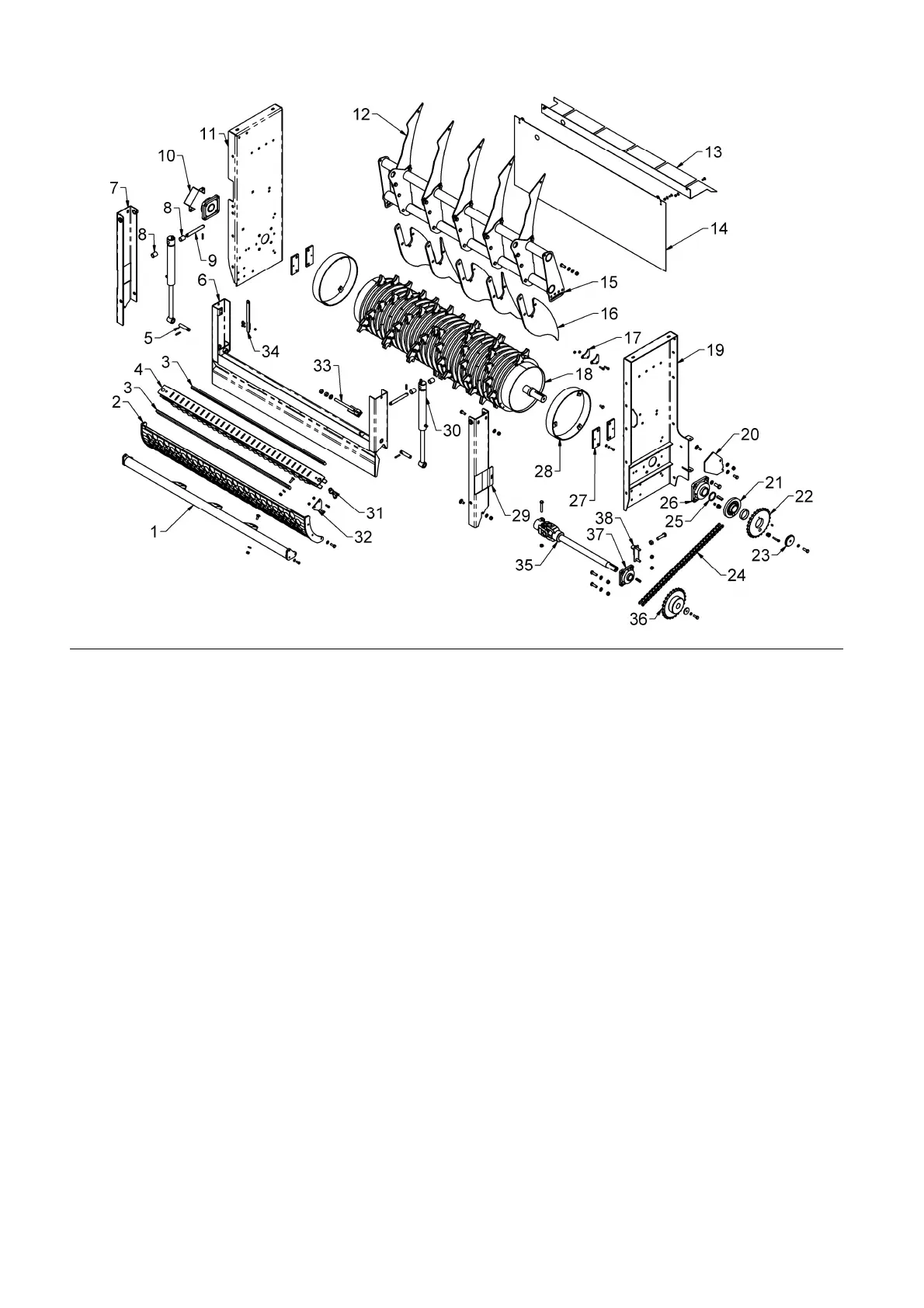

Teagle Tomahawk 8500 - Dual Chop Crossbeater Assembly; Crossbeater and Blade Components; Sliding Blade Carrier

Ref. Description Part No. Qty. Associated Components Part No. Qty.
KIT Dual Chop Crossbeater SC4676
1 Screen Support SC4655 1 Setscrew M8 x 20 FAS2627P 6
Plain Washer M8 FAS2343P 6
2 Screen 50mm Holes SC4652 1 Setscrew M10 x 30 FAS2655P 6
Cup Square Bolt M10 x 25 FAS9262P 6
Plain Washer M10 FAS2344P 12
Locknut M10 FAS2333 6
3 Nylon Strip SC4408 2 Socket Screw CSK M10 x 35 FAS9373P 20
Plain Washer M10 FAS2344P 20
Locknut M10 FAS2333 20
4 Blade Beam Assy c/w Blades SC4657 1 Blade Carrier SC4658 1
5 Lower Ram Pin SC4455 2 Spring Tension Pin 8 x 40mm FAS4131S 2
6 Sliding Blade Carrier SC4656 1
7 Slide RH SC4410 1 Setscrew M12 x 30 FAS2678P 2
Cup Square M12 x 25 FAS9282P 2
Plain Washer M12 FAS2345P 4
Locknut M12 FAS2334 4
8 Ram Spacer SC4413 4
9 Upper Ram Pin SC3615 2 Spring Tension Pin 8 x 40mm FAS4131S 2
10 Rotor Bearing Cover SC4134 1
11 Mid Body Panel RH SC4404 1 Setscrew M12 x 30 FAS2678P 8
Plain Washer M12 FAS2345P 16
Locknut M12 FAS2334 8
12 Blade Guide Plate SC3687 5 Setscrew M12 x 30 FAS2678P 10
Plain Washer M12 FAS2345P 20
All Metal Self Locking Nut M12 FAS2319 10
13 Cover Plate SC4659 1 Cup Square M8 x 20 FAS9241P 3
Plain Washer M8 FAS2343P 3
Locknut M8 FAS2332 3
14 Blanking Plate SC4662 1 Cup Square M8 x 20 FAS9241P 3
Plain Washer M8 FAS2343P 3
Locknut M8 FAS2332 3
26
DUAL CHOP CROSSBEATER AND DRIVE
