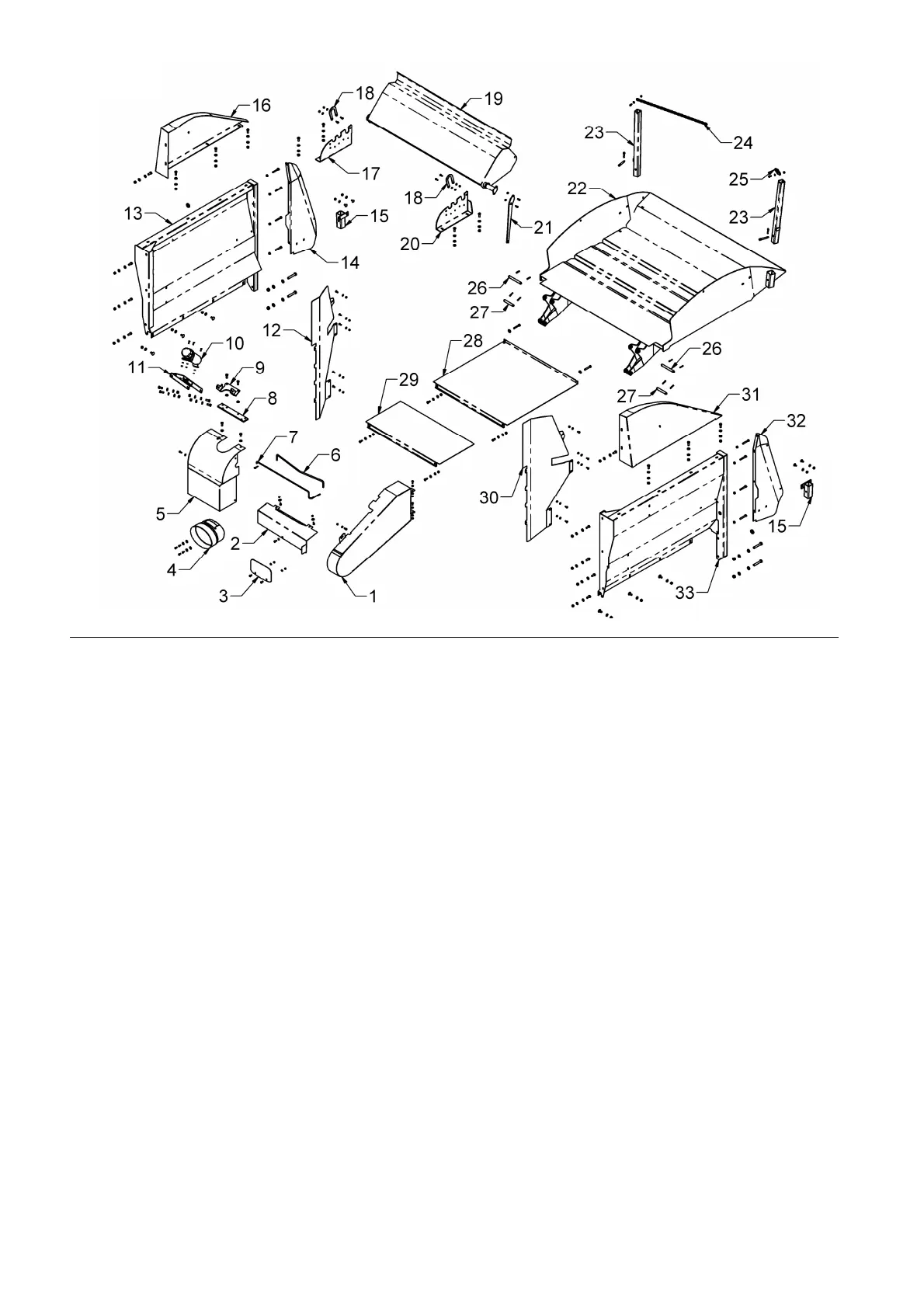

Ref. Description Part No. Qty. Associated Components Part No. Qty.
1 Hinged Chain Guard SC4691 1 Setscrew M8 x 20 FAS2627P 3
Plain Washer M8 FAS2343P 5
Locknut M8 FAS2332 3
2 Front Drive Cover SC4629 1 Setscrew M8 x 20 FAS2627P 1
Cup Square Bolt M8 x 20 FAS9241P 2
Plain Washer M8 Form G FAS2343GP 2
Plain Washer M8 FAS2343P 1
Locknut M8 FAS2332 2
3 Lower Access Panel SC4052 1 Cup Square Bolt M8 x 20 FAS9241P 2
Plain Washer M8 FAS2343P 2
Locknut M8 FAS2332 2
4 PTO Cone c/w 2 Hatches PTO9013 1 Setscrew M8 x 16 FAS2625P 4
Plain Washer M8 Form G FAS2343GP 4
5 Valve Guard SC4224 1 Setscrew M12 x 25 FAS2677P 2
Plain Washer M12 FAS2345P 2
Setscrew M8 x 20 FAS2627P 1
Plain Washer M8 FAS2343P 1
6 Blockage Removal Tool SC1247 1
7 Gear Change Handle SC3970 1 ‘R’ Pin 2.5mm FAS6002P 1
8 Housing Threaded Plate SC3791 1
9 Hinge Bracket SC3739 1 Setscrew M12 x 30 FAS2678P 2
Plain Washer M12 FAS2345P 2
10 Instruction Book Holder SC4668 1 Setscrew M6 x 20 FAS2603P 3
Plain Washer M6 FAS2342P 3
Locknut M6 FAS2330 3
11 Hose Carrier Assembly SC3740 1 Setscrew M12 x 30 FAS2678P 4
Plain Washer M12 FAS2345P 8
Locknut M12 FAS2334 4
Strap Non Re-usable FAS9051 3
12 Internal Body Panel RH SC4580 1 Cup Square Bolt M8 x 20 FAS9241P 5
Plain Washer M8 FAS2343P 5
Locknut M8 FAS2332 5
28
BDY BODY
