7

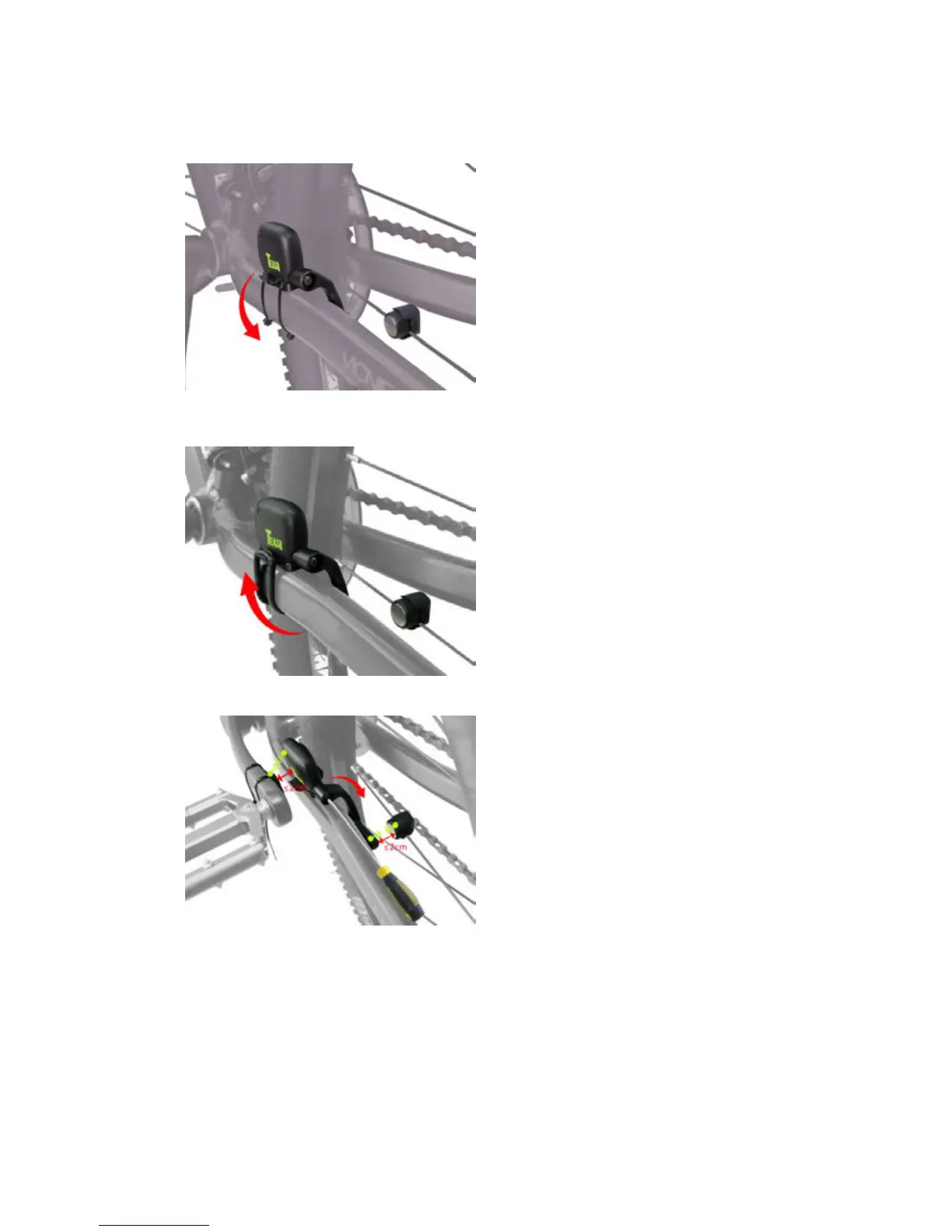

Fix speed/cadence sensor on corresponding position of bike as shown in the figure, and then
tighten it with 2 nylon straps.
Then, fix it again with a rubber band.
Please note: the centers of pedal magnet and wheel magnet shall be aligned with corresponding
induction part of sensor and shall not be deviated from it too far; the magnets shall not be more
than 2 cm from the induction part, since distance larger than 2 cm will make it fail to receive the
wheel spinning signal. Screws can be loosened with screwdriver to adjust the distance between the
extendible arm of inductor and spoke magnet.
