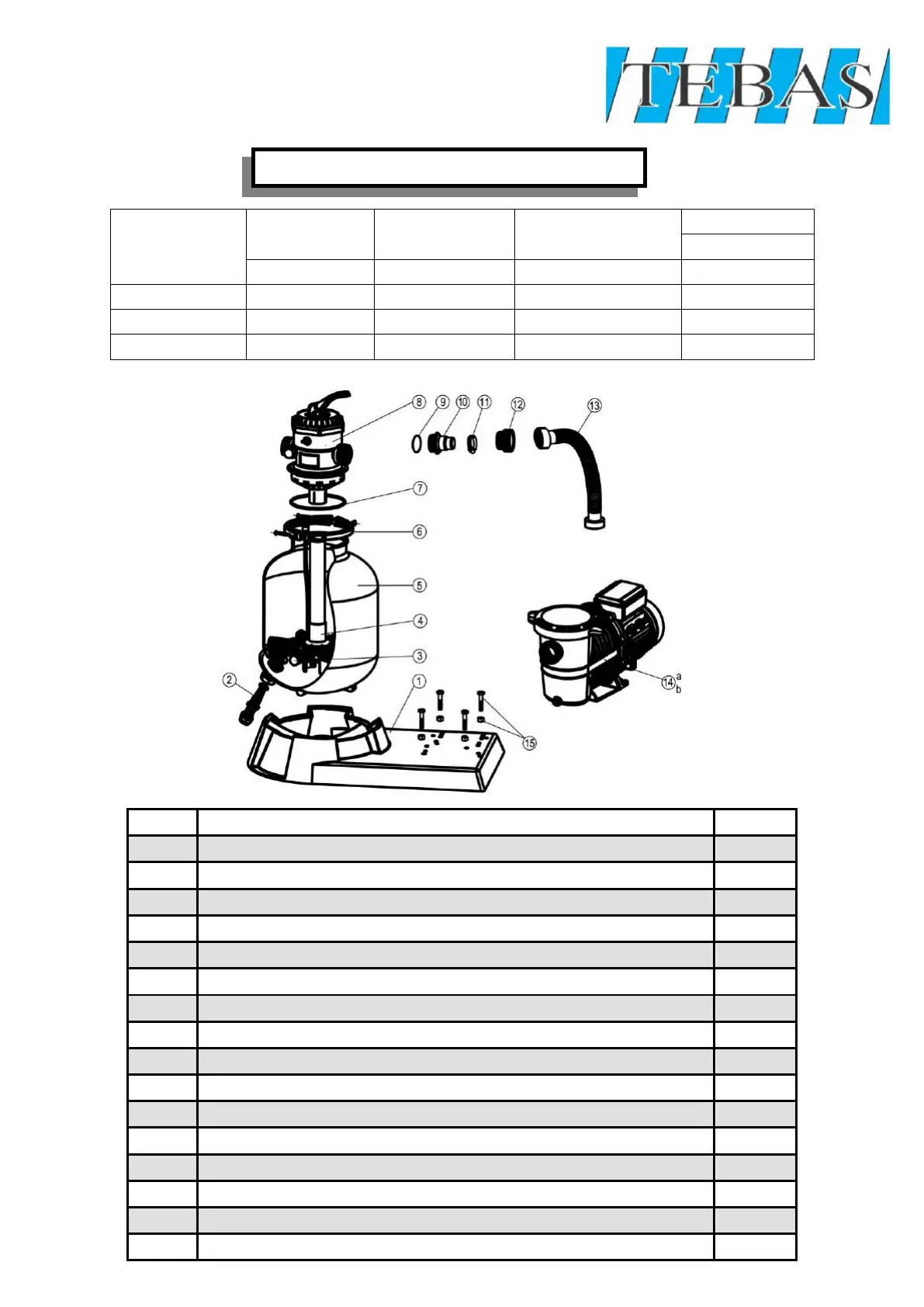

Tebas 081017 - Specifications and Parts Diagram

-10-
FILTRATION
SYSTEM
FLOW RATE
MAX. WORKING
PRESSURE
FILTERING AREA
FILTERSAND
AMOUNT
m
3
/H
BAR
m
2
KG
081017
7.9
2.5
0.12
45
081024
9
2.5
0.19
75
081029
11
2.5
0.26
135
Nr
Description
Amount
1
Sand filter support
1
2
Drain plug
1
3
Laterals
8
4
Center pipe
1
5
Filter tank
1
6
Flange clamp
1
7
O-ring
1
8
6-way valve
1
9
O-ring
3
10
Hose adaptor
3
11
Hose clamp
2
12
Adaptor
1
13
PVC hose
1
14a
Pump 0,55 kW
1
14b
Pump 0,75 kW
1
15
Screws M8X35 and nuts M8
4
SPECIFICATIONS AND PARTS
