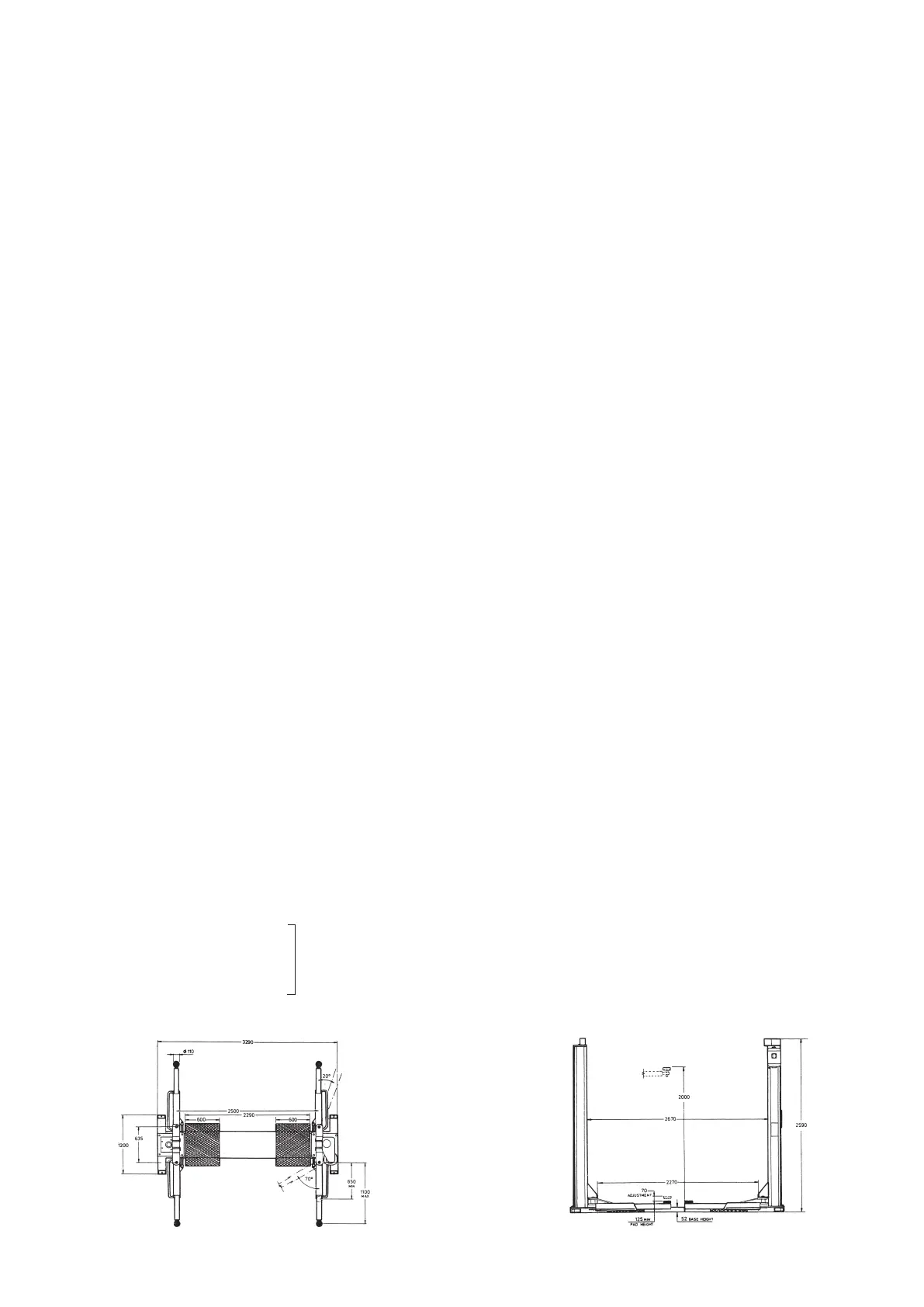

TECALEMIT TEC 3000X - Illustrated Parts Lists; Parts List - 1 Phase and 3 Phase

10
11
Part No. Description Qty.
Item
No.
Part No. Description Qty.
Item
No.
1 Phase 3 Phase 1 Phase 3 Phase
V18347 V18655 Drive cover 1 1 V16749 Catch bar 2 48
SMA 1204.10 Screw M4 x 10L cheese hd 1 1a GPS12.65 Spring pin 2 49
WWA1003.10 Washer 3/16” at 1 1b V18653 Reservoir 2 50
CMA006.40 Cotter pin 4 2 V15187 Key 2 51
NWA118.2 Slotted nut 2 3 V18350 V19597 Electric control box 1 52
V18345 V16756 Screw pulley 1 4 V16787 O-ring 2 53
V18342* A950 Vee belt 3 5 SME706.25 Cap Screw M6 x 25 4 54
V18681 V18647 Motor pulley 1 6 V18652 Bottom bearing housing 2 55
GME008.10 Grub screw 1 7 1206 Bearing DRSA 2 56
6206ZCM Bearing DGBB 2 8 V18677 Self-tapping screw 4 57
V17529 Top seat ring 2 9 V18639 Chain sprocket 2 58
HR32206CN Thrust bearing 2 10 NWA1116.6 Nyloc nut 1” BSW thin 2 59
NMA1116.1 Nut M16 x 2 8 11 SME1708.55 Cap screw M8 x 55L 4 60
SME706.50 Cap screw M6 x 50 4 12 NMA1108.6 Nyloc nut M8 4 60a
V16963 Spring 4 13 V18617 All-thread rod 4 61
V18682 V18642 Top plate assembly drive 1 14 V18622 Rod end 4 61a
H161 Hydraulic nipple 2 15 V18620 Spring -oor 4 61b
V18637 Blind mounting 2 16 V18619 Half nut 4 62
V18636 Sealing strip 4 17 V18618 Knob 4 62a
V18635 Aluminum blind 2 18 V16812 Spring 4 63
V19284 V19252 Drive column welded 1 19 V18616 Bearing block 4 64
V19253 Slave column welded 1 20 DIN1400.0360 Circlip 36 mm shaft 8 65
V18643 Top plate assy.slave 1 21 NMA1116.4 Nut M16 thin 4 66
V16750 Key collar 1 22 V19257 Outer arm left 2 67
NMA112.4 NMB110.1 Nut M10 x 1.5 1 23 V19266 Inner arm 4 68
V15153 V18648 Adjusting screw 1 23a V19246 Lifting pad 4 69
NWA1106.1 NUT 3/8 “BSW 4 24 V18662 Pad holder 4 70
28463.8 3/8” sping washer 4 24a V18663 Wire circlip 4 70a
WWA1006 3/8 “ at washer 4 24b V19268 Lift pad bush 4 71
SWA106.10 Screw 3/8 BSW x 1 “L 6 25 V19274 Footguard spring 8 72
V18346 V18646 Motor mounting 1 25a BME1106.60 Bolt M6 x 60L hex. head 8 73
SWA106.12 Screw 3/8 BSW x 1, ”L 4 25b V19264 Arm footguard 4 74
NWA1106.6 Nyloc nut 2 26 V19269 Lift pad assembly 4 75
V18343 V18649 Electric motor 1 27 V18654 Cover 1 76
V16777 Lift screw 2 28 V19258
Outer arm right (not shown)
2 -
V17526 Bearing case 2 29 V20097 Base frame 1 78
V14549 Key 1 30 BME1116.50 Bolt M16 x 50 Grade 8.8 4 79
1201 Seal 4 31 BME1110.35 Bolt M10 x 35 Grade 8.8 4 80
DIN 1460.0280 Circlip 28mm shaft 8 32 V20098 Runway 1 81
V18624 Slide pad 8 33 SME1108.16 Screw M8 x 16L 4 82
SME708.25 Cap screw M8 x 25 16 33a WMA1008 M8 Flat washer 4 83
NMA1108.6 Nyloc nut M8 16 33b SME1706.35 Cap screw M6 x 35L 4 84
V17524 Thrust washer -nylon 16 34 V19231 Chain guide 4 86
V17525 Thrust washer -steel 16 34a V16770 Spring guide 1 87
V16786 Side roller assy 8 35 V14595 Spring 1 88
V19280 Carriage assy. 2 36 V16772 Locking plate 1 89
V16745 Load ring 2 37 V16764 Nut 3 90
V16765 Lift nut & trigger assy 2 38 V18785 T-slide 1 91
V18679 Safety nut 2 39 V17236 Limit switch 3 92
V18656 Lubricator brush 2 40 SMA1404.25 Screw M4 x 25 6 93
SME1706.10 Cap screw M6 x 10 10 41 V17869 Chain & connector link 1 94
DIN1400.0400 Circlip 40 mm shaft 8 42 V19259 Left arm assembly 2 95
V19265 Pivot pin 4 43 V19260 Right arm assembly (not shown) 2 -
GPS05.24 Spring pin 2 44 V17251 Door guard rubber 4 97
V16748 Trigger 2 45 V17659 Key Cover 4 99
V16718 Pin 4 46 V17997 Switch Plate 1 101
V16087 Spring 4 47 V20099 Tool tray 2 102
V16706 Lift Nut 4 47 V16736 Washer M6 x 19 x 2 4 103
SMA1106.16 Screw M6 x 16L 4 104
* Veebelt A x 40 use only cogged belts.
Complete
assembly only.
Refer V16765
Item No.38
