4) REPAIR (CHAPTER 8)
This chapter is the most important and useful in the Service Manual. Indeed you have a total
description about all components present in the Qwalys 3:
Safety panels/cover
Worktable
System electronics
Power supply module
X drive assembly/carriage
Liquid Handling arm (LiHa)
Robotic Manipulator arm (RoMa)
PosID3
Liquid System

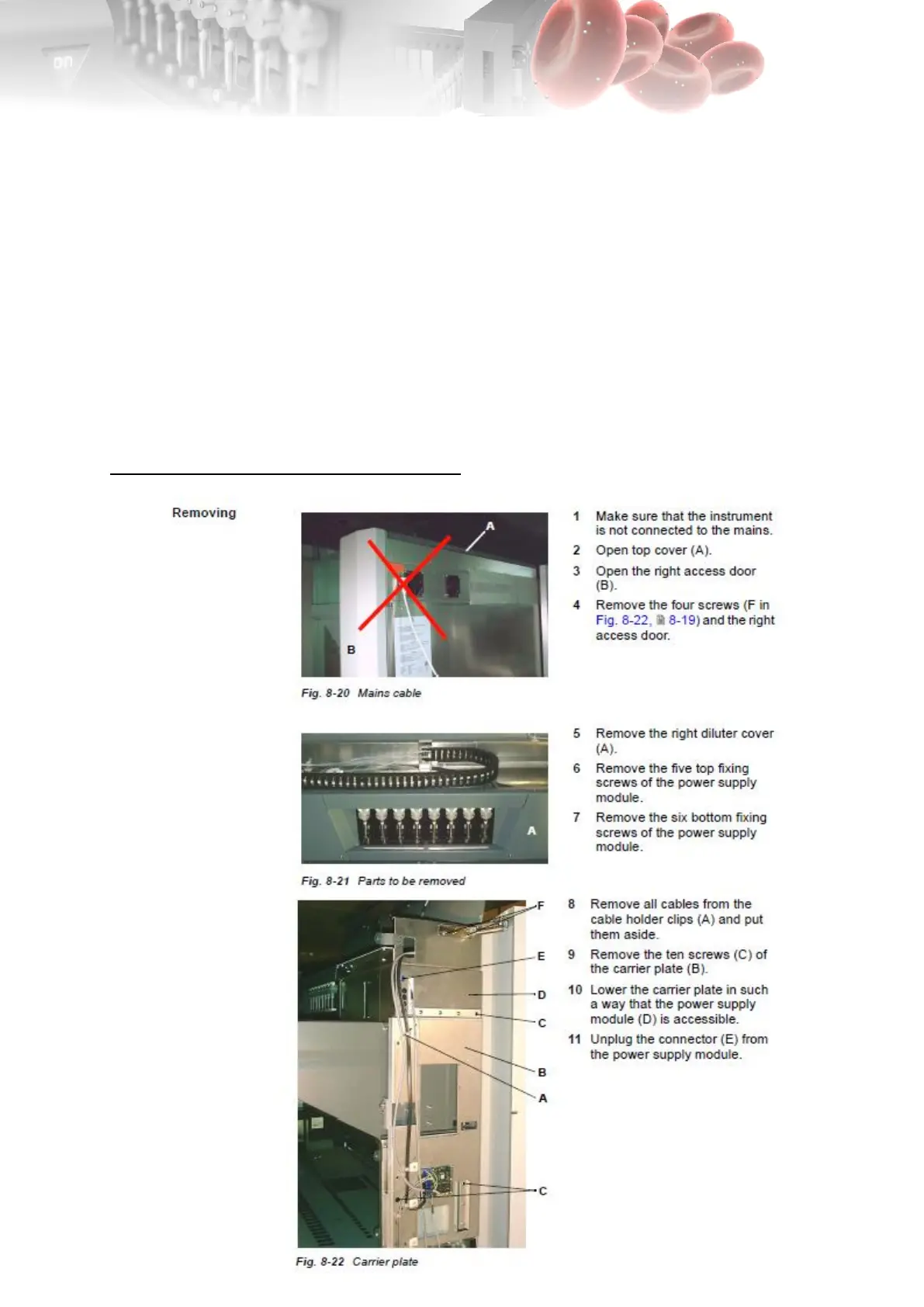

Example: How to remove the Power Supply
