TECE solid - Connection to the building control technology

5
The following functions can be programmed:
. Dual-flush or single-flush actuation
. Lighting options
. Recognition range
. Trigger range
. Interval flush
. Safety flush
. Pre-flush
. Cleaning function
. Factory settings
The app also has a logging function. The most recent flushes and the total
number of flush actions performed are documented under the “Log” button.
Connection to the building control technology
The electronics can be triggered by means of the building control technology
(BCT) and also oer the possibility to send an output signal for a performed flush
to the BCT and to document this.

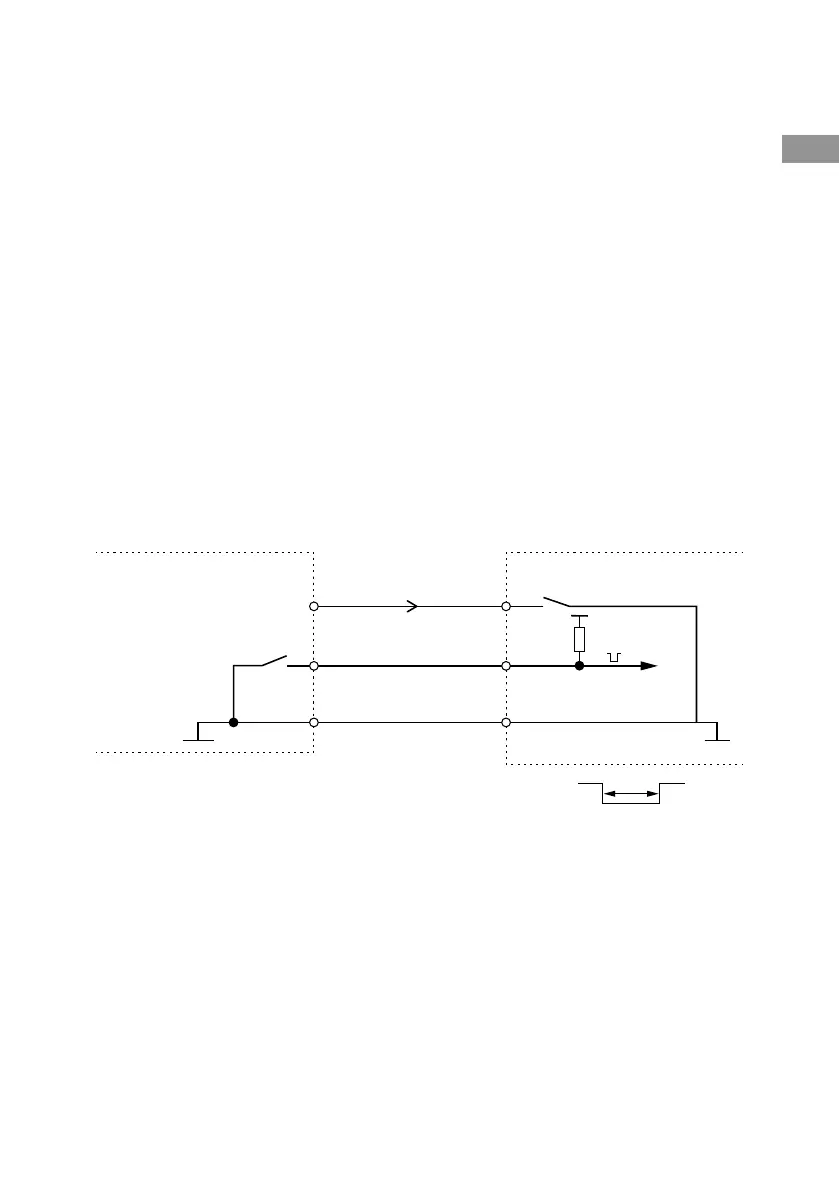

GND
X110
TECE BCT
X111
flushing IN
potential-free NO contact
I < 10 mA
U < 3 V
X112
flushing OUT
flushing off = high signal
flushing on = low signal
350 ms
V
cc
V
cc
= 3-28 V
I
max
= 5 mA
EN
