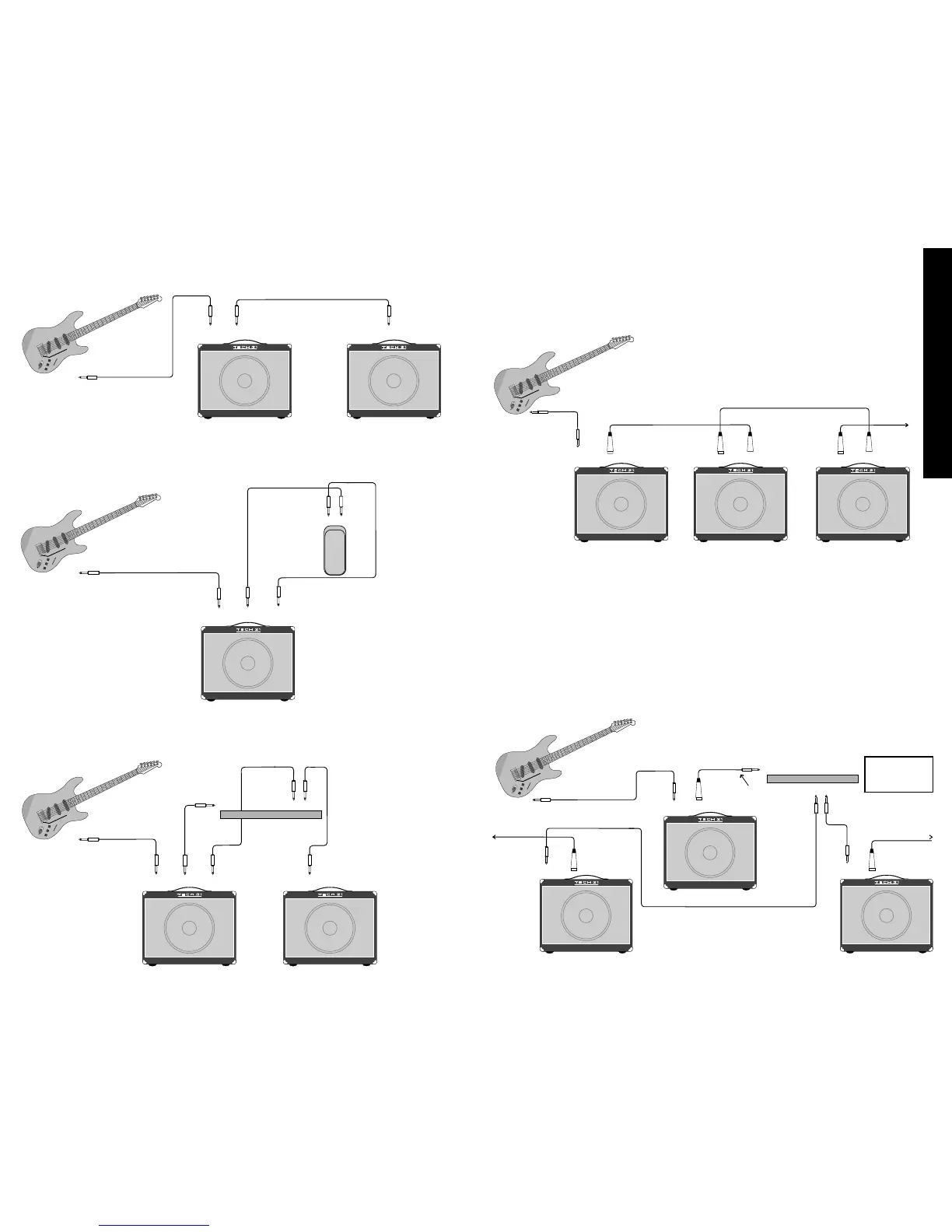

HOOK-UP DIAGRAMS
Trademark 60 Hook-Up with
Optional Power Engine 60s (Mono)
TRADEMARK 60
POWER ENGINE 60 POWER ENGINE 60
SANSAMP XLR
DIRECT OUT
XLR
IN
XLR
OUT
XLR
IN
XLR
OUT
INPUT
TO CHAIN OR TO P.A.
Trademark 60 Hook-Up with
Optional Power Engine 60s (Stereo)
STEREO EFFECTS
PROCESSOR
*
INPUT
L
R
INPUT
TRADEMARK 60
SANSAMP
XLR
DIRECT
OUT
XLR
OUT
INPUT
TO CHAIN
OR TO P.A.
POWER ENGINE 60
XLR
OUT
INPUT
TO CHAIN
OR TO P.A.
POWER ENGINE 60
Use a line matching
transformer, such as
Shure Model #A95UF,
or equivalent
*When available,
it is preferable
to use XLR jacks
Stereo Hook-Up
SEND
RETURN
STEREO EFFECTS
PROCESSOR
INPUT
RETURN
L R
INPUT
Remote Volume Control Hook-Up
SENDINPUT
RETURN
OUTPUT
INPUT
Chaining the Trademark 60
INPUT
SEND
RETURN
