Techly IDATA EXTip-383V - Page 10

EN
10

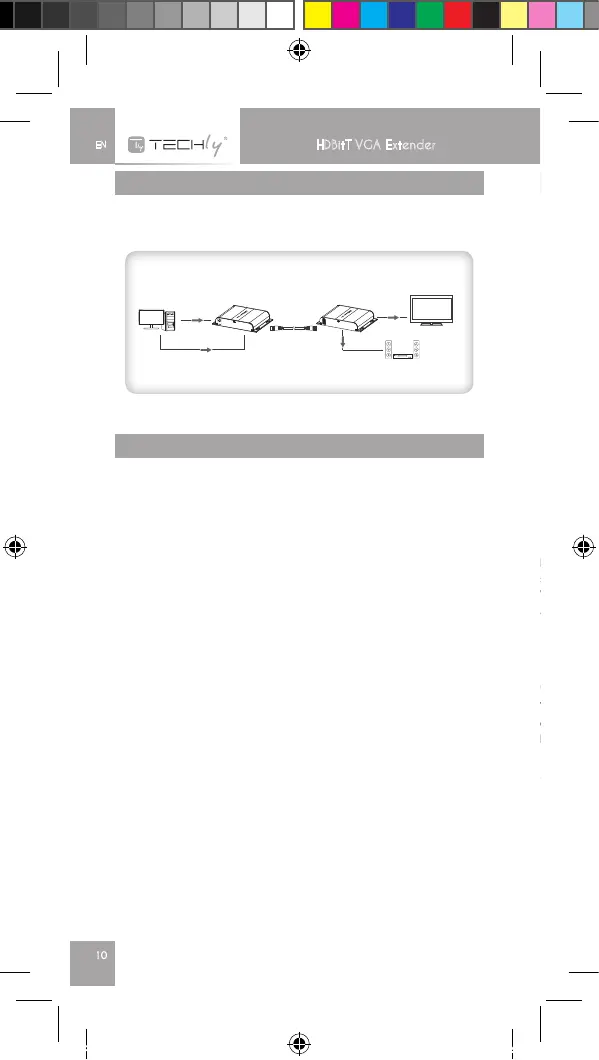

CONNECTION
Transmit 1080P signal overcat6up to 120 metersand150 meters
over higher quality level cables.
VGA OUT
HDMI EX TENDER RX
(R eceiver )
T V
Audio OUT
VGA IN
HDMI EX TENDER TX
(Sender)
PC
Audio IN
C at 5/ 6 c a b le
FAQ
Q:TV displays "Waiting for connection" on the right corner of the
screen?
A:PleasecheckifthepowersupplyofTX(Sender)andthenetwork
cable are well connected.
Q:TV displays "Please check theTXinputsignal" at the middle of
thescreen?
A: 1)PleasecheckifthereisaVGAsignalinputofTX.
2) Try to connect the signal source directly with display device
to see if there is signal output from source device or change the
signalsourceandVGAcablestoretest.
Q:Displaynotfluent,notstable?
A:1)Makesurenetworkcablelengthiswithintherequiredrange.
2)Clickthe“reset”buttonontheTX/RXfrontpanel.
SPECIFICATION
Transport protocol HDBitT
VGA signal format RGBHV
VGA resistance 75Ω
Support resolutions 1920x1080@60Hz, 1680x1050@60Hz,
1360x768@60Hz, 1280x1024@60Hz,
1280x960@60Hz, 1024x768@60Hz,
800x600@60Hz
Transmission distance Transmit1080Psignalovercat6upto
120meters
CAT5E:100mCAT6:120m
Ittransmitsupto150metersoverhigher
quality level network cable
Audio 3.5mmaudiojack
Working temperature 0°C–60°C
Power Supply DC5V/2A*2pcs
Power consumption TX:7.5W;RX:7W
Dimensions 138(L)x90(W)x23.8(H)mm*2pcs
Weight TX:215gRX:215g
Color Black
Maintenance: Clean only with a dry cloth. Do not use cleaning
solvents or abrasives.
Warranty: No guarantee or liability can be accepted for any changes
and modifications of the product or damage caused due to incorrect
use of this product.
IncompliancewithEUDirectiveWEEEthisproductismarked
with this symbol. It means that used electrical and electronic
products should not be mixed with general household waste.
There is a separate collections system for these products in
compliance with WEEE directive, otherwise contaminative and
hazardous substances can pollute the environment
With the CE sign, Techly
®
ensures that the product is
conformedtothebasicEuropeanstandardsanddirectives.
HDBitT VGA Extender
HDBitT VGA Extender
