There are also SD Card and USB flash drive inputs
on the front panel of the
H12X500UBT
which is compatible with iPod™
(Classic and Nano) via the USB input.
The maximum size of the SD Card or USB flash drive is 32GB. If your memory card
exceeds 32GB, the unit will not be able to read the files from the memory cards. You will only be able to play
.mp3, .wav,
.wma
files directly from these memory cards once they are inserted into the front panel of the unit. Press the play/pause
button on the front panel of the unit to begin playing files from your USB /SD Card, press this button again to pause. Press
the NEXT button to move to the next track on either the USB,SD Card or
iPod™(Classic and Nano)
. Press the PREVIOUS
button to move to the previous track on either the USB,SD Card or
iPod™ (Classic and Nano)
.
NOTE: THE USB INPUT WILL ONLY CONNECT TO A USB FLASH DRIVE OR iPod™(Classic and Nano). DO NOT
ATTEMPT TO CONNECT THE USB INPUT DIRECTLY TO A COMPUTER AS THIS WILL NOT WORK. BE SURE NOT
TO HOOK-UP AN AMPLIFIER OR ANY AMPLIFIED SIGNAL INTO THE RCA INPUT JACK AS THIS COULD DAMAGE
THE
H12X500UBT
. NO OTHER AMPLIFIER IS NEEDED TO POWER YOUR SIGNAL IN ADDITION TO THE
H12X500UBT
.
ALWAYS MAKE SURE THAT THERE IS ONLY ONE AMPLIFIER IN THE SIGNAL PATH.
NOTE: ONLY VOLUME +/-. PREVIOUS/NEXT TRACK & PLAY/PAUSE FUNCTION WORK FOR BLUETOOTH. THE
OPERATIONS OF THE BLUETOOTH CONNECTION MAY VARY AS DIFFERENT BLUETOOTH DEVICE. THIS MANUAL
IS BASED ON THE CONNECTION TO AN iPhone™ AND ARE ONLY CORRECT FOR THE UNITS WHICH HAVE
BLUETOOTH CAPABILITY.
Turn on the unit and the bluetooth function on iPhone™, then search for the device named “TPRO+MODEL” and pair the
devices. There is no pairing code for smart phones. Connect after successfully pairing. The indicator on the front panel of the
unit will be on after iPhone™ successfully connected to the unit. You can play the tracks from iPhone™ and press the previous,
next or pause button on either the front panel of the unit, the remote control or iPhone™ to control the playing. When iPhone™
is taken away for a long distance from the H12X500UBT until it disconnects, or when the bluetooth function of iPhone™ is
disabled, the H12X500UBT will still be occupied by this iPhone™ unless the “Play/Pause” button on the face or the
“Play/Pause” key on the remote is pressed to release the H12X500UBT to other blueooth devices.
There are two ¼" inputs on the face of the unit which you can plug microphones directly into. It is important to note that these
inputs are to be used solely by microphones. Do not attempt to use the ¼" inputs for any other use. To use, simply plug the
microphones into the ¼" inputs while the speaker and microphones are in the OFF position. Once plugged in, power on the
unit and microphones. Once turned on, simply turn up the Microphone Volume and the Master Volume.
Note: IF YOU HAVE TWO MICROPHONES PLUGGED INTO THE HYBRID THEN THE ECHO,BASS AND TREBLE
CONTROLS WILL ADJUST THE SOUND ON BOTH OF THE MICROPHONES.
The two microphone inputs have many options which can be controlled on the front panel of the unit. The microphone volume
control can be found on the front panel of the unit. Use this control to adjust the volume of the microphones. There are also
three microphone sound controls on the front panel of the unit, an echo control,a bass control and a treble control. Use these
controls to adjust the sound from the microphones.
Microphone Controls

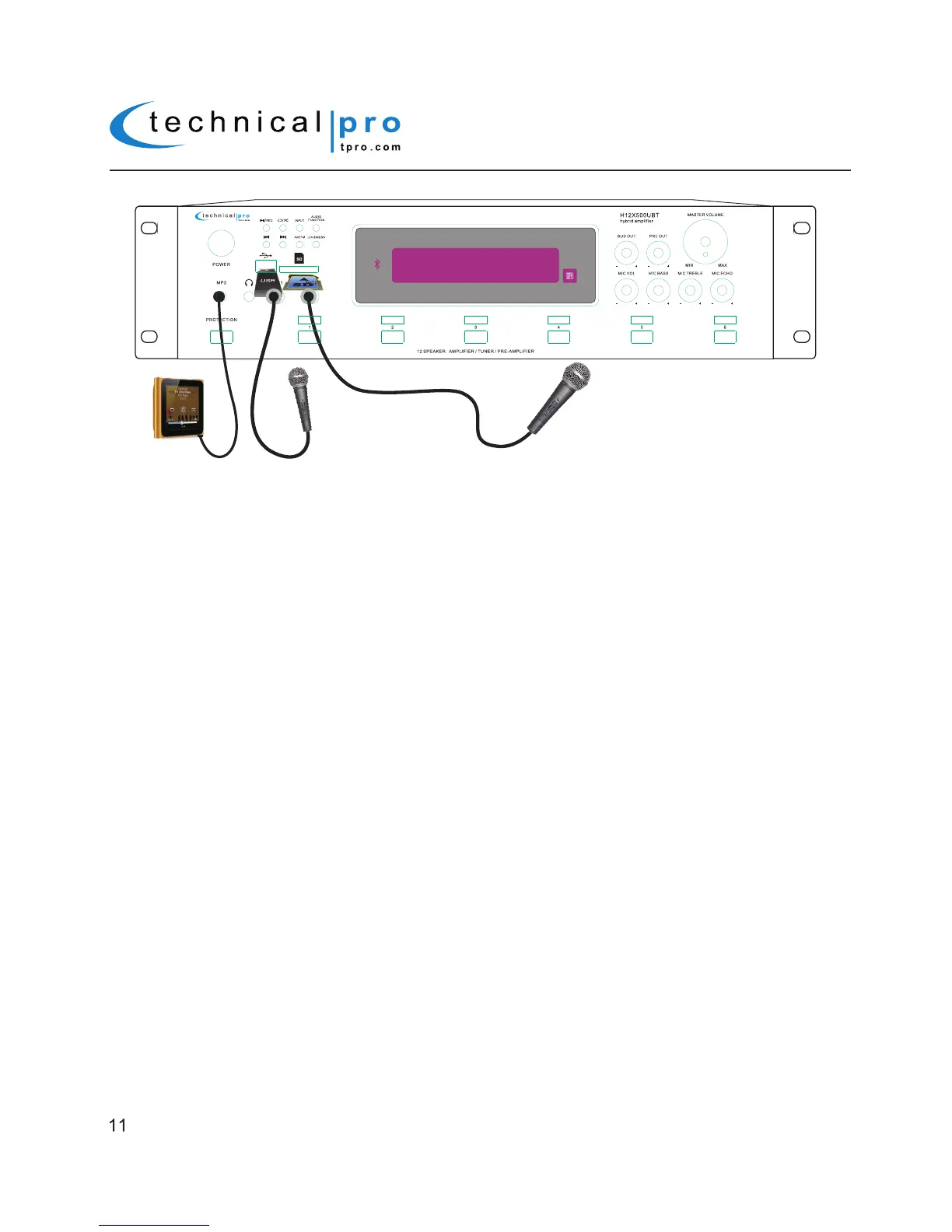

Connecting Two Microphones to H12X500UBT
Connecting a device with Bluetooth (for example an iPhone™) to H12X500UBT via Bluetooth
Volume and Tone Controls
The volume control on the face of the unit controls the volume at which the signal is played at. Turn the volume control
clockwise to increase the volume and counter-clockwise to decrease the volume.
H12X500UBT
USB Flash Drive & SD Card & iPod
™(Classic and Nano)
& Bluetooth Connection
MP3 Player
To Next Page
