H12X500UBT
Connecting the speaker wire to the H12X500UBT speaker outputs
NOTE: WHEN MAKING THESE CONNECTIONS THE POWER OF THE H12X500UBT AND THE SIGNAL
SOURCE SHOULD ALL BE IN THE OFF POSITION WITH THE VOLUME LEVELS TURNED DOWN

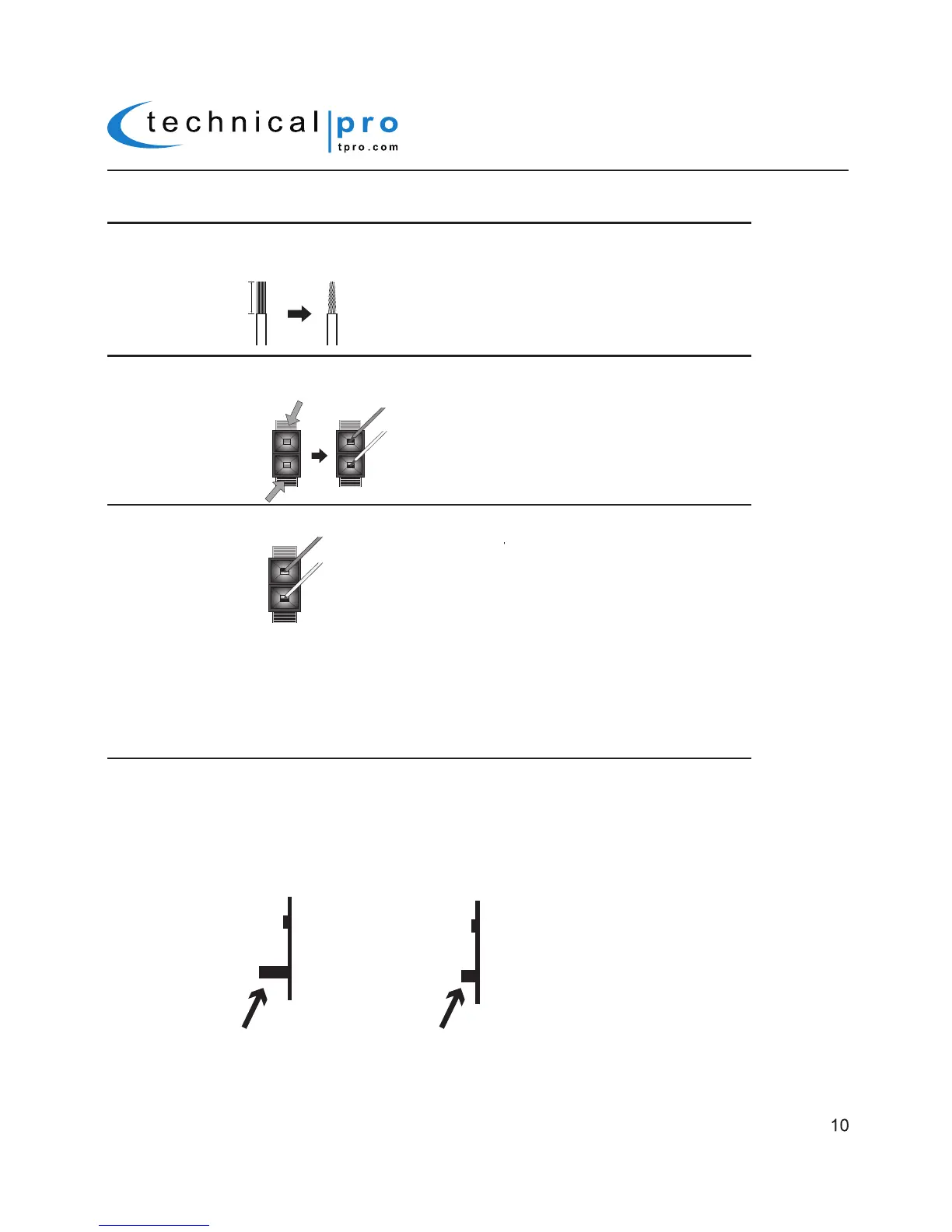

1.Remove approximately 10 mm (0.4 in) of insulation from the end of each speaker
cable and twist the exposed wires of the cable together to prevent short circuits.
2.Press down the red and black of the speaker output terminal on the rear of the
H12X500UBT. Insert the exposed speaker wire into the opening.
10 mm (0.4 in)
3.Let go of the red and black terminals.
For any audio to be played by the H12X500UBT the protection button must be pushed IN.
When the Protections button is pushed OUT, there will be NO audio output.
There are 6 Speaker Selector Buttons on the front of the H12X500UBT.
To allow the sound to pass through to the corresponding speaker the Speaker Selector
button needs to be pushed IN.
Protection & Speaker Selector Buttons:
PUSHED OUT PUSHED IN
