In the typical setup, a user should wire from the output of the signal source directly to one of the RCA
inputs on the rear of the H12X500UBT.Once the input signal source is connected to the H12X500UBT,
connect the speakers to the H12X500UBT’s speaker outputs. Pictured above is an iPhone™ and CD
player connected to the H12X500UBT inputs.To play tracks from the iPhone™ to H12X500UBT via
bluetooth, firstly press the “INPUT” button on the front panel or the “Input” key on the remote to select
the bluetooth input mode, then turn on the bluetooth function on iPhone™ and search H12X500UBT
whose bluetooth device is named TPRO-H12X500UBT, and then pair and connect. There is no
pairing code for smart phones.
The H12X500UBT has four groups of full range loudspeakers and one subwoofer connected to it
which will play either the signal from either the iPhone™, DVD, USB Flash Drive, SD Card, iPod™
(Classic and Nano) or MP3 player. You can connect up to six groups of full range loudspeakers to the
speaker outputs. Press the speaker selector on the face to select the desired speaker outputs. The
SOURCE OUTPUT is connected to the input of a tape recorder. You can alsoconnect the SOURCE
OUTPUT directly to the input of another amplifier. The SOURCE OUTPUT will send the signal from
the selected input (AUX, DVD, USB Flash Drive, SD Card, iPod™(Classic and Nano), MP3 player or
Bluetooth).
H12X500UBT

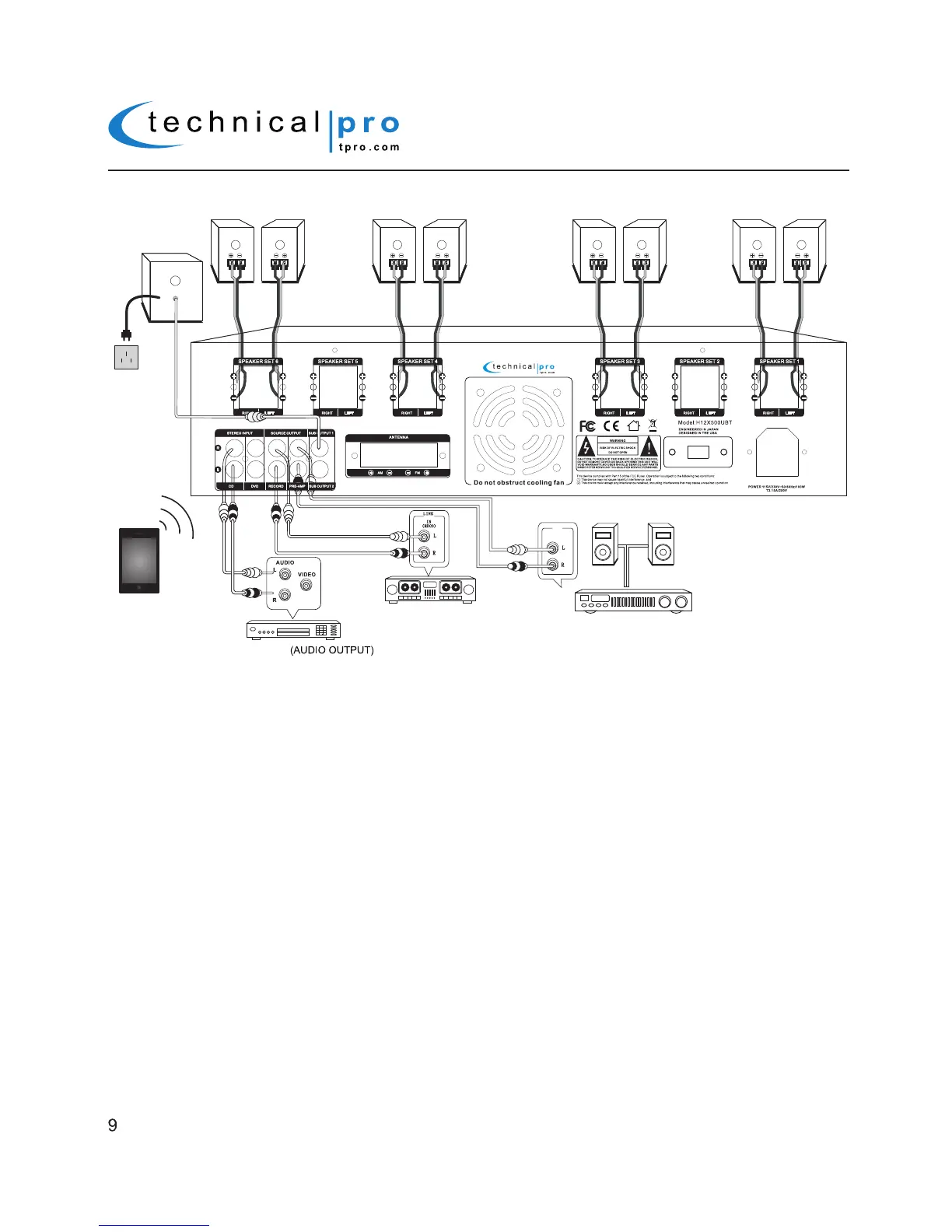

Typical H12X500UBT Input and Output Connections
NOTE: WHEN MAKING THESE CONNECTIONS THE POWER OF THE
H12X500UBT
AND THE
SIGNAL SOURCE SHOULD ALL BE IN THE OFF POSITION WITH THE VOLUME LEVELS TURNED
DOWN. THE OPERATIONS OF BLUETOOTH FUNCTION IS ONLY FOR THE UNIT WHICH HAS
BLUETOOTH FUNCTION.
TAPE RECORDER
CD Player
iPhone™
(Bluetooth enabled)
Amplifier
POWER AMPLIFIER (AUDIO INPUT)
Wall Socket
POWERED
SUBWOOFER
