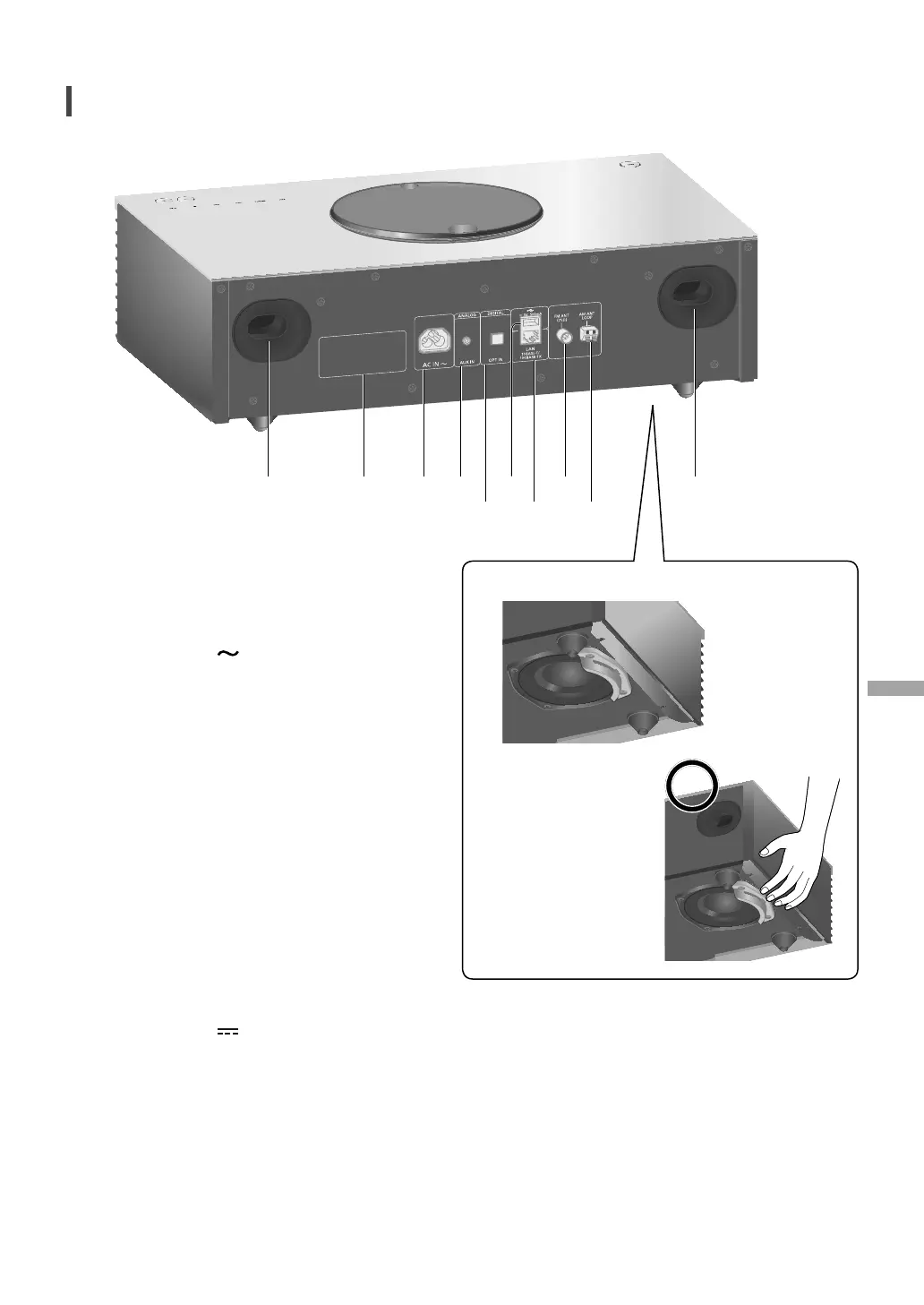

10 Bass reflex port
11 Product identification marking
• The model number is indicated.
12 AC IN terminal (
)
( 11)
13 AUX IN terminal
• You can connect a portable audio player,
etc. with an analog audio cable (not
supplied) and play back music.
14 Optical digital input terminal
• You can connect a DVD player, etc. with
optical digital audio cable (not supplied)
and play back music.
• The digital audio input terminal of this unit
can only detect the following linear PCM
signals. For details, refer to the operating
instructions of the connected device.
- Sampling frequency:
32/44.1/48/88.2/96 kHz
- Number of quantization bits:
16/24 bit
15 USB-A terminal
DC 5 V 500 mA
• You can connect a USB device to the unit
and play back music stored on the USB
device.
• This unit does not guarantee connection
with all USB devices.
A more detailed owner’s manual is available
in “Owner’s Manual” (PDF format).
www.technics.com/support/
• Depending on a thickness of USB device,
you may not connect USB device while LAN
cable is connected.
This unit (rear)
16 LAN terminal
( 13)
17 FM ANT terminal
( 11, 17)
18 AM ANT LOOP terminal
( 11, 17)
09 Subwoofer
(Bottom)
• Do not install this unit
on the rough surface.
Doing so may cause
the subwoofer to be
damaged.
• Do not hold the
subwoofer when
carrying this unit.
