Technics SA-6000X User Manual

\

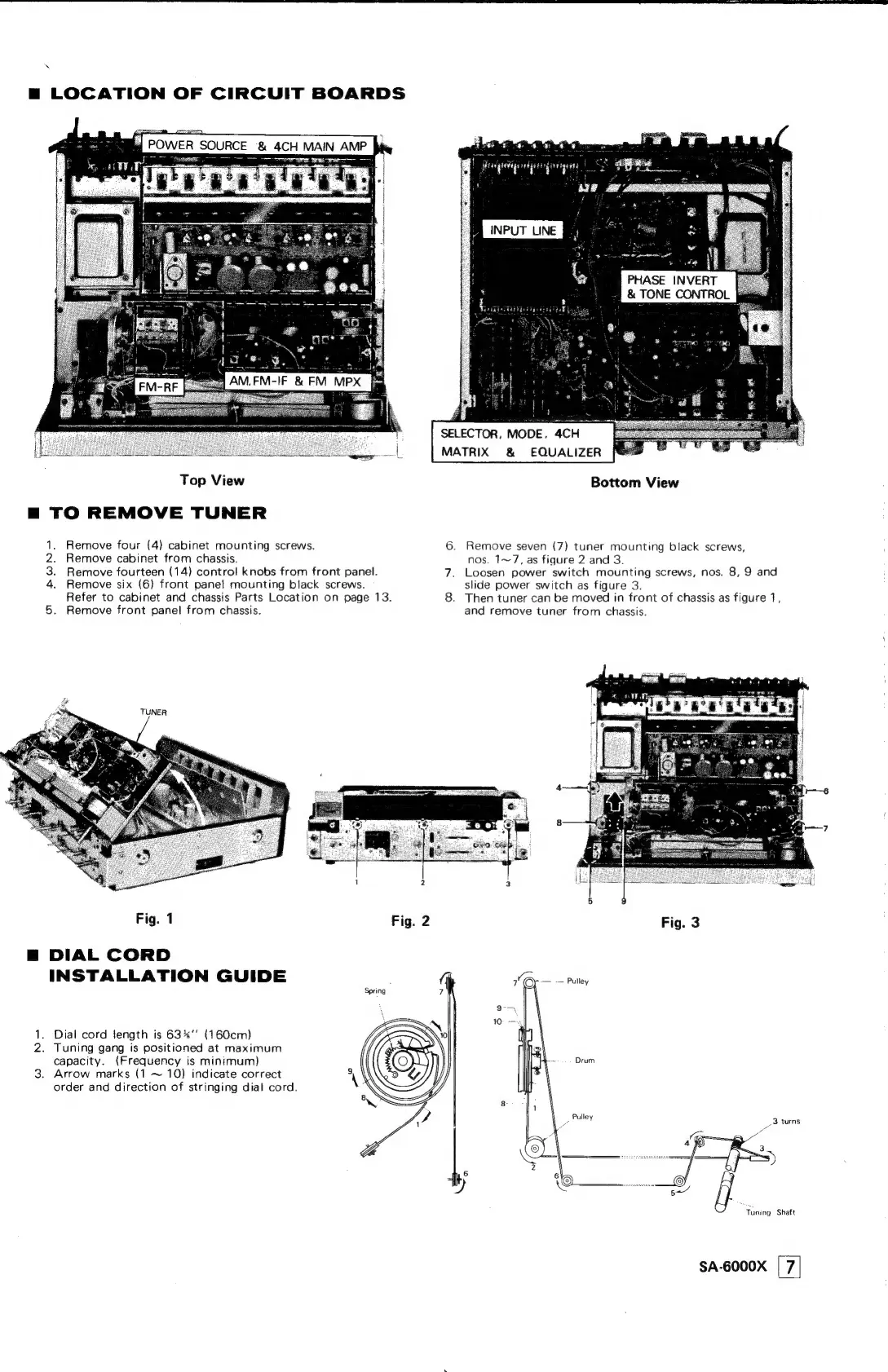

@ LOCATION OF CIRCUIT BOARDS
wij POWER SOURCE & 4CH MAIN AMP
* eS
PHASE INVERT
@ & TONE CONTROL
|
|
|
Top View Bottom View
g# TO REMOVE TUNER
1. Remove four (4) cabinet mounting screws. 6. Remove seven (7) tuner mounting black screws,
2. Remove cabinet from chassis. nos. 1~7, as figure 2 and 3.
3. Remove fourteen (14) control knobs from front panel. 7. Loosen power switch mounting screws, nos. 8, 9 and
4. Remove six (6) front panel mounting black screws. slide power switch as figure 3.
Refer to cabinet and chassis Parts Location on page 13. 8. Then tuner can be moved in front of chassis as figure 1,
5. Remove front panel from chassis. and remove tuner from chassis.
Fig.
1
Fig.
2
Fig.
3
@ DIAL CORD
INSTALLATION GUIDE
=
Dial cord fength is 63%‘ (160cm)
2. Tuning gang is positioned at maximum
capacity. (Frequency is minimum)
3. Arrow marks (1 ~ 10) indicate correct
order and direction of stringing dial cord.
Drum
Y Pulley _3 turns
ye
ii Tuning Shaft
SA-6000X [7]
