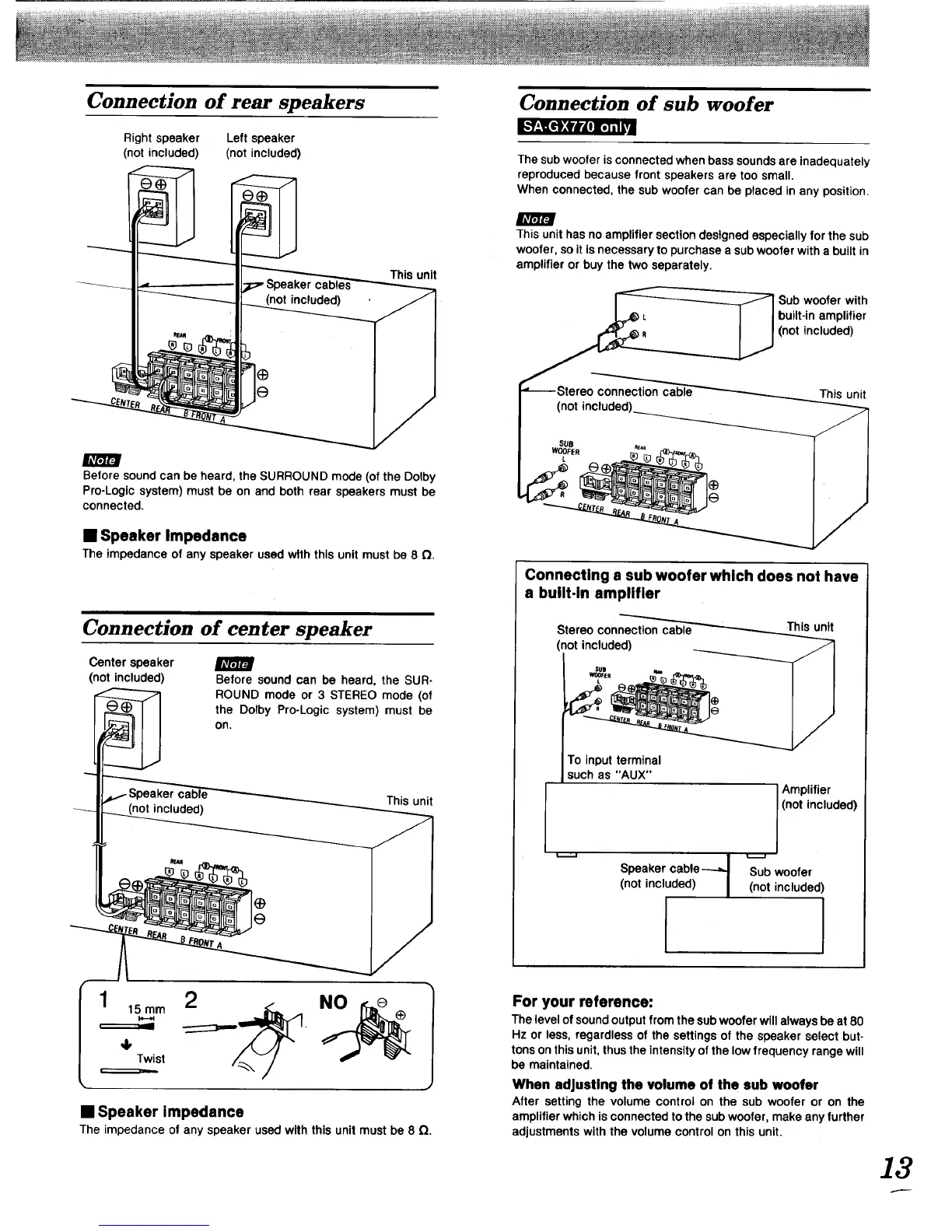

Connection of rear speakers Connection of sub woofer
Right speaker Left speaker
not included) (not included)
_/
Before sound can be heard, the SURROUND mode (of the Dolby
Pro-Logic system) must be on and both rear speakers must be
connected.
• Speaker Impedance
The impedance of any speaker used with this unit must be 8 Q.
Connection of center speaker
Center speaker
not included)
m
Before sound can be heard, the SUR-
ROUND mode or 3 STEREO mode (of
the Dolby Pro-Logic system) must be
on.
This unit
Twist
NO
l
• Speaker Impedance
The impedance of any speaker used with this unit must be 8 Q.
The sub woofer is connected when bass sounds are inadequately
reproduced because front speakers are too small.
When connected, the sub woofer can be placed in any position.
This unit has no amplifier section designed especially for the sub
woofer, so it is necessary to purchase a sub woofer with a built in
amplifier or buy the two separately.
(not included)_
Sub woofer with
built-in amplifier
(not included)
This unit
SUB
WOOFER
L
Connecting a sub woofer which does not have
a built-in amp.tier
Stereo connection cable This untt
not included)
To inputterminal
suchas "AUX"
Speaker cable
(not included) /
Amplifier
(not ncluded)
Sub woofer
(not included)
For your reference:
The level of sound output from the sub woofer will always be at 80
Hz or less, regardless of the settings of the speaker select but-
tons on this unit, thus the intensity of the low frequency range will
be maintained,
When adjusting the volume of the sub woofer
After setting the volume control on the sub woofer or on the
amplifier which is connected to the sub woofer, make any further
adjustments with the volume control on this unit.
13
