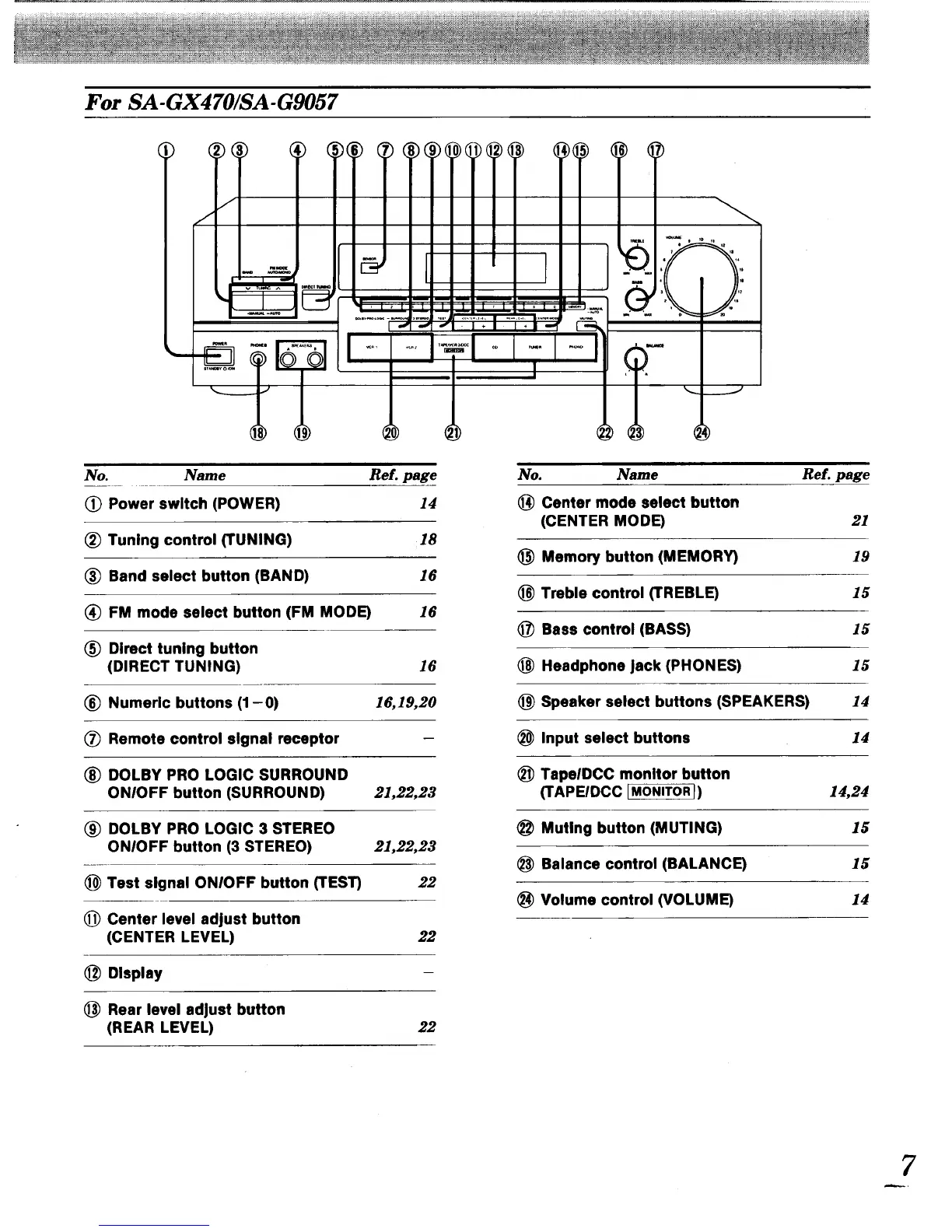

Technics SA-GX770 - Controls for SA-GX470;SA-G9057

For SA-GX470/SA-G9057
z I
m_
I I I I
....I....
i , i
I ÷ I
Name Ref. page
(_ Power switch (POWER) 14
(_ Tuning control (TUNING) 18
(_ Band select button (BAND) 16
(_) FM mode select button (FM MODE) 16
(_ Direct tuning button
(DIRECT TUNING) 16
Numeric buttons (1-0) 16,19,20
(_ Remote control signal receptor
(_ DOLBY PRO LOGIC SURROUND
ONIOFF button (SURROUND) 21,22,23
DOLBY PRO LOGIC 3 STEREO
ONIOFF button (3 STEREO) 21,22,23
(_ Test signal ONIOFF button (TEST) 22
Center level adjust button
(CENTER LEVEL) 22
(_ Display
(_ Rear level adjust button
(REAR LEVEL) 22
No.
No. Name Ref. page
(_ Center mode select button
(CENTER MODE) 21
(_ Memory button (MEMORY) 19
(_ Treble control (TREBLE) 15
(_ Bass control (BASS) 15
Headphone Jack (PHONES) 15
(_ Speaker select buttons (SPEAKERS) 14
Input select buttons 14
(_ TapelDCC monitor button
(TAPEIDCC [MONITOR I) 14,24
Muting button (MUTING) 1.9
Balance control (BALANCE) 15
Volume control (VOLUME) 14
