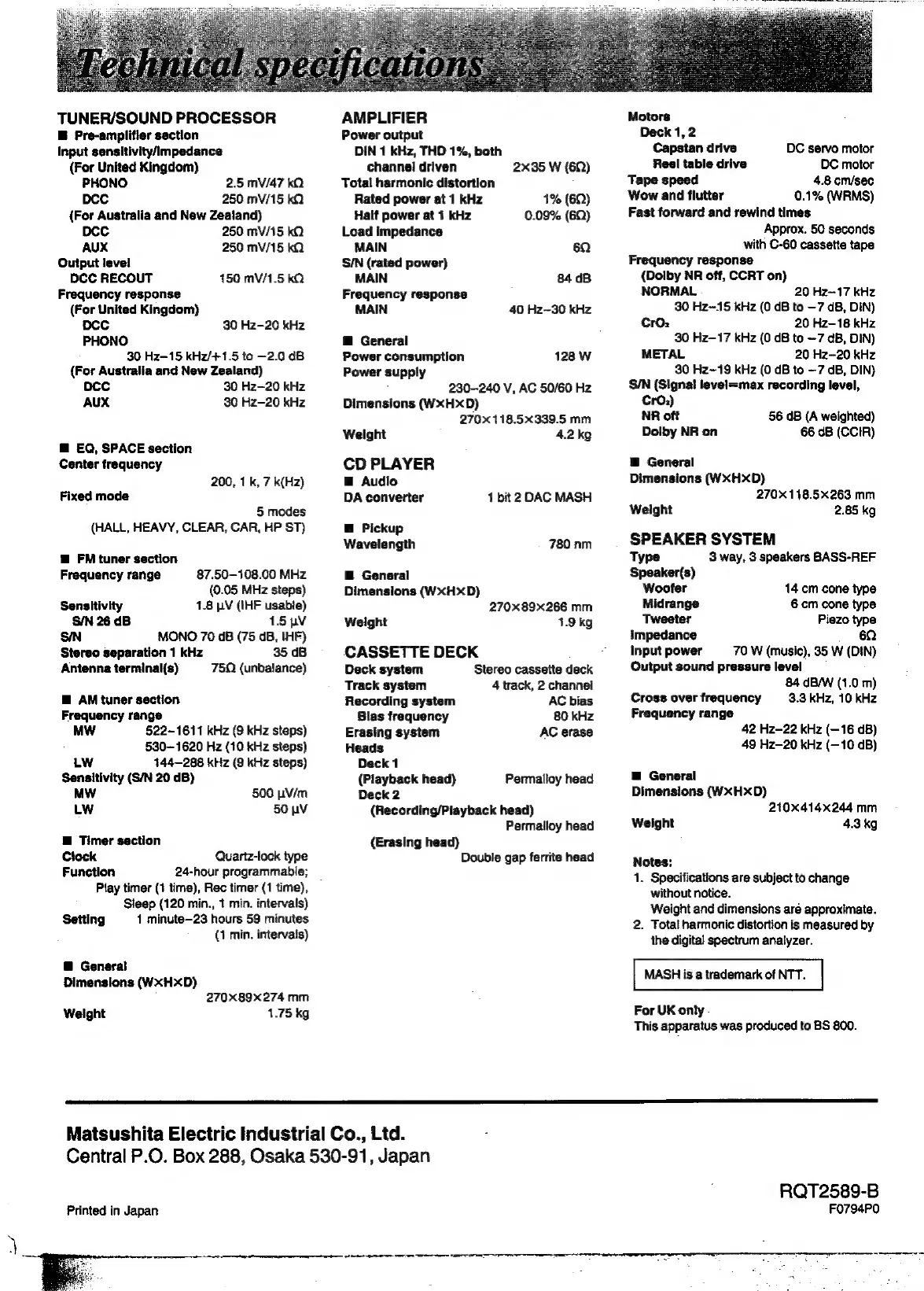

Technics SC-CH510 User Manual

TUNER/SOUND PROCESSOR
B Pre-amplifier section
Input sensitivity/impedance
(For United Kingdom)
PHONO 2.5 mV/47 kQ
pcc 250 mV/15 kQ
(For Australia and New Zealand)
occ 250 mV/15 kQ
AUX 250 mV/15 kQ
Output level
DCC RECOUT 150 mV/1.5 kQ
Frequency response
(For United Kingdom)
occ 30 Hz~20 kHz
PHONO
30 Hz-15 kHz/+1.5 to —2.0 dB
{For Australia and New Zealand)
occ 30 Hz-20 kHz
AUX 30 Hz-20 kHz
@ EQ, SPACE section
Center frequency
200, 1k, 7 k(Hz)
Fixed mode
5 modes
(HALL, HEAVY, CLEAR, CAR, HP ST)
@ FM tuner section
Frequency range 87,50-—108.00 MHz
(0.05 MHz steps)
Sensitivity 1.8 LV (IHF usable)
S/N 26 dB 1.5 pV
SiN MONO 70 dB (75 dB, IHF)
Stereo separation 1 kHz 35 dB
Antenna terminal(s) 75Q (unbalance)
@ AM tuner section
Frequency range
MW 522-1611 kHz (9 kHz steps)
530-1620 Hz (10 kHz steps)
LW 444-288 kHz (9 kHz steps)
Sensitivity (S/N 20 dB)
MW 500 pV/m
Lw 50 pV
@ Timer section
Clock Quartz-lock type
Function 24-hour programmable;
Ptay timer (1 time), Rec timer (1 time),
Sleep (120 min., 1 min. intervals)
1 minute—23 hours 59 minutes
(1 min. intervals)
Setting
@ General
Dimensions (WxHxD)
270x89x274 mm
Weight 1.75 kg
AMPLIFIER
Power output
DIN 1 kHz, THD 1%, both
channe! driven
Total harmonic distortion
Rated power at 1 kHz
Half power at 1 kHz
Load impedance
MAIN 6Q
S/N (rated power)
MAIN 84 dB
Frequency response
MAIN 40 Hz~-30 kHz
2X35 W (6Q)
1% (60)
0.09% (60)
@ General
Power consumption 128 W
Power supply
230-240 V, AC 50/60 Hz
Dimensions (WxHxD)
270x 118.5X339.5 mm
Weight 42kg
CD PLAYER
@ Audio
DA converter 1 bit 2 DAC MASH
@ Pickup
Wavelength 780 nm
@ General
Dimensions (WxHxD)
270x89X266 mm
Weight 1.9 kg
CASSETTE DECK
Deck system Stereo cassette deck
Track system 4 track, 2 channel
Recording system AC bias
Blas frequency 80 kHz
Erasing system AC erase
Heads
Deck 1
(Piayback head) Permalloy head
Deck 2
(Recording/Playback head)
Permalloy head
{Erasing head)
Double gap ferrite head
Motors
Deck 1,2
Capstan drive DC servo motor
Reel table drive OC motor
Tape speed 4.8 cm/sec
Wow and flutter 0.1% (WRMS)
Fast forward and rewind times
Approx. 50 seconds
with C-60 cassette tape
Frequency response
(Dolby NR off, CCRT on)
NORMAL 20 Hz-17 kHz
30 Hz-15 kHz (0 dB to —7 8, DIN)
CrO: 20 Hz-18 kHz
30 Hz-17 kHz (0 dB to ~7 dB, DIN)
METAL 20 Hz-20 kHz
30 Hz~19 kHz (0 dB to —7 dB, DIN)
S/N (Signal level=max recording level,
Crd.)
NR oft 56 dB (A weighted)
Dolby NR on 66 dB (CCIR)
@ General
Dimensions (WxHxD)
270X118.5X263 mm
Weight 2.85 kg
SPEAKER SYSTEM
Type 3 way, 3 speakers BASS-REF
Speaker(s)
Woofer 14 cm cone type
Midrange 6 cm cone type
Tweeter Piezo type
impedance 6Q
Input power 70 W (music), 35 W (DIN)
Output sound pressure level
84 dB/W (1.0 m)
Cross over frequency
Frequency range
42 Hz-22 kHz (—16 dB)
49 Hz-20 kHz (—10 dB)
3.3 kHz, 10 kHz
@ General
Dimensions (WxHxD)
210x414x244 mm
Weight 4.3 kg
Notes:
1. Specifications are subject to change
without notice.
Weight and dimensions aré approximate.
2. Total harmonic distortion is measured by
the digital spectrum analyzer.
MASH is a trademark of NTT.
For UK only
This apparatus was produced to BS 800.
Matsushita Electric Industrial Co., Ltd.
Central P.O. Box 288, Osaka 530-91, Japan
Printed in Japan
RQT2589-B
FO794P0
