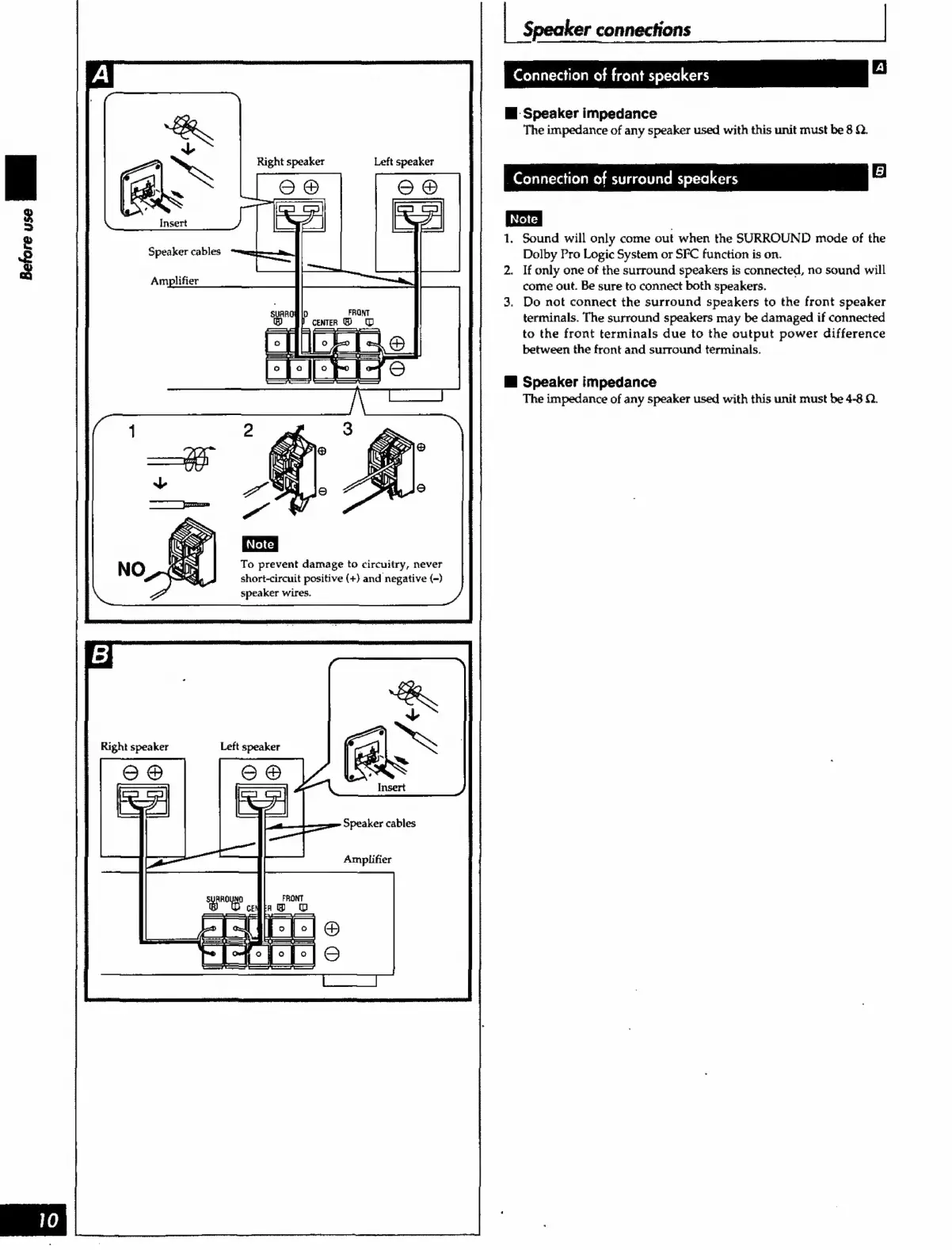

Before use a
Right speaker Left speaker
Insert
Speaker cables
Amplifier
To prevent damage to circuitry, never
short-circuit positive (+) and negative (-)
speaker wires.
Speaker cables
Amplifier
i sepiie connections |
Connection of front speakers ES
E Speaker impedance
The impedance of any speaker used with this unit must be 8 Q.
Connection of surround speakers
Note,
1. Sound will only come out when the SURROUND mode of the
Dolby Pro Logic System or SFC function is on.
2. If only one of the surround speakers is connected, no sound will
come out. Be sure to connect both speakers.
3. Do not connect the surround speakers to the front speaker
terminals. The surround speakers may be damaged if connected
to the front terminals due to the output power difference
between the front and surround terminals.
E Speaker impedance
The impedance of any speaker used with this unit must be 4-8 Q.
