Before use i
| Equipment connections

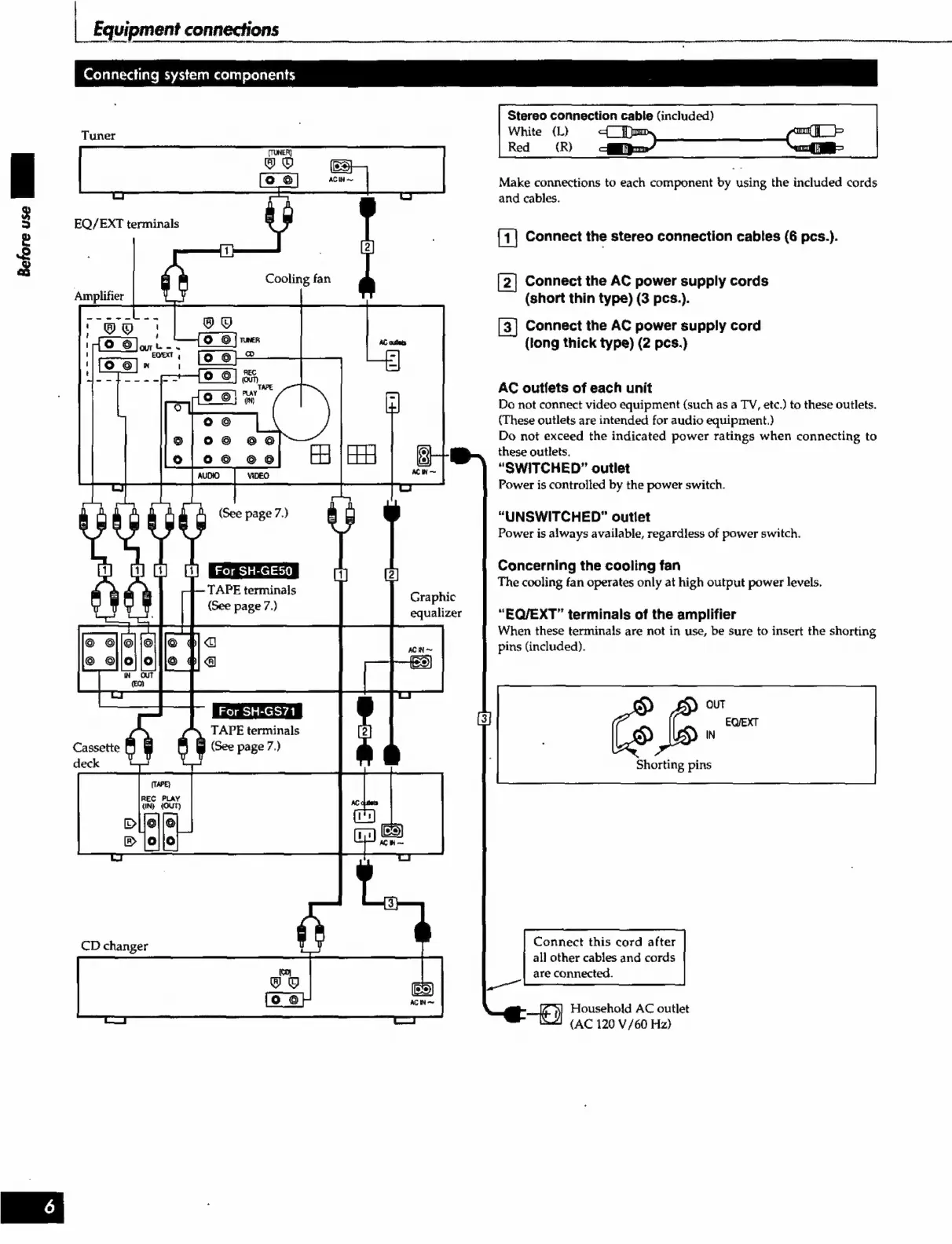

Connecting system components
Stereo connection cable (included)
Tuner
White
(L)
Red
[TUNER]
g ES x
esi Make connections to each component by using the included cords
= - and cables.
I
EQ/EXT terminals
ul
[1] Connect the stereo connection cables (6 pcs.).
È Cooling fan [2] Connect the AC power supply cords
i (short thin type) (3 pcs.).
Connect the AC power supply cord
(long thick type) (2 pes.)
AC outlets of each unit
Do not connect video equipment (such as a TV, etc.) to these outlets.
(These outlets are intended for audio equipment.)
Do not exceed the indicated power ratings when connecting to
these outlets.
“SWITCHED” outlet
Power is controlled by the power switch.
N~
“UNSWITCHED” outlet
Power is always available, regardless of power switch.
Concerning the cooling fan
The cooling fan operates only at high output power levels.
[i] For SH-GE50 2
TAPE terminals
(See 7) Graphic
poo equalizer “EQ/EXT” terminals of the amplifier
When these terminals are not in use, be sure to insert the shorting
ae [te i a
© ©|/0||o $
For SH- | For SH-GS71 |
\ TAPE terminals
p (See page 7.)
Cassette 3 a
Shorting pins
Connect this cord after
all other cables and cords
are connected.
J.
CD changer I
Household AC outlet
{AC 120 V/60 Hz)
