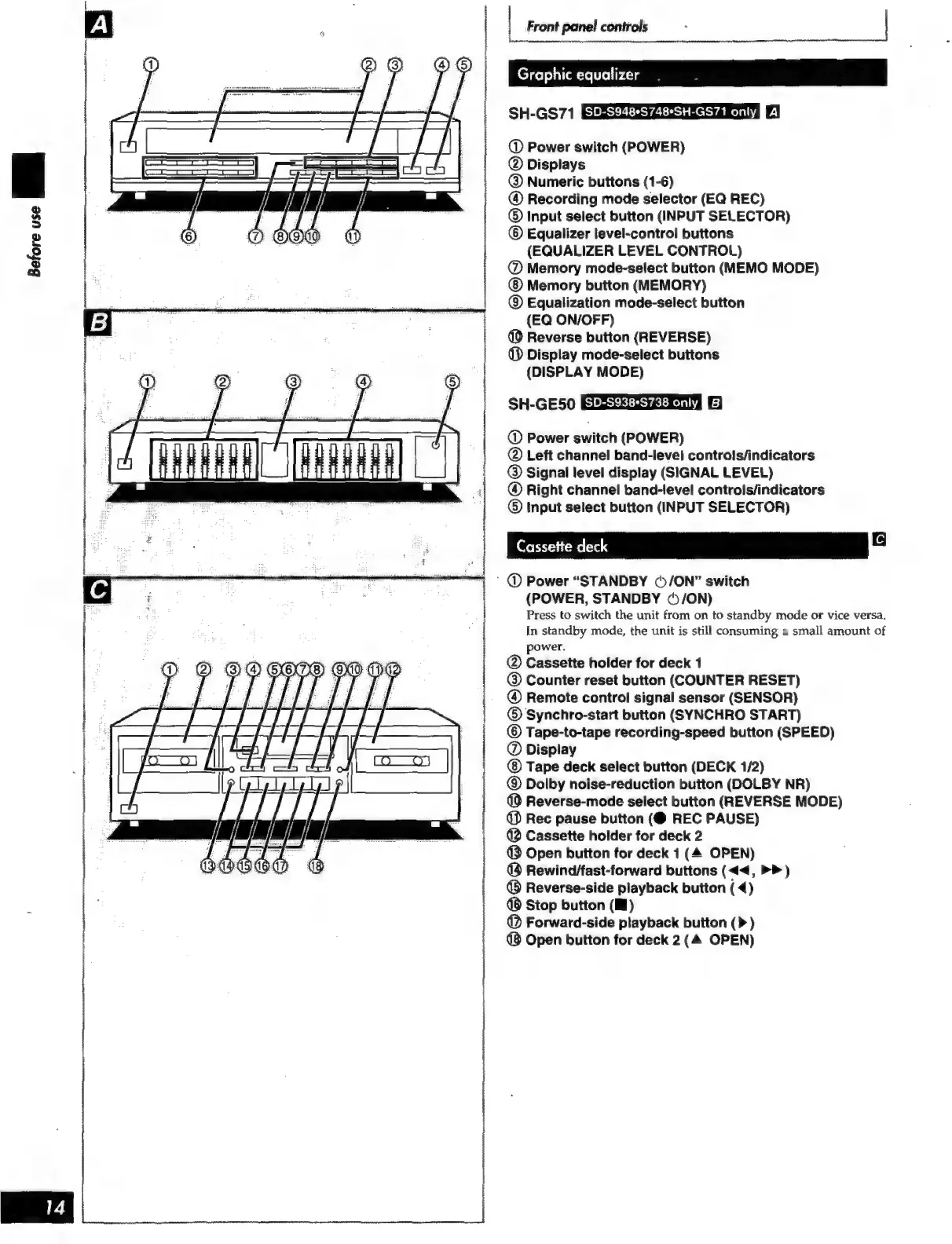

| Front panel controls ` |
Graphic equalizer .
SH-GS71 a
@ Power switch (POWER)
@ Displays
@ Numeric buttons (1-6)
@ Recording mode selector (EQ REC)
©) Input select button (INPUT SELECTOR)
© Equalizer level-control buttons
(EQUALIZER LEVEL CONTROL)
E @ Memory mode-select button (MEMO MODE)
Ten ao T f Memory button (MEMORY)
E 3 m ® Equalization mode-select button
(EQ ON/OFF)
(0 Reverse button (REVERSE)
Ú Display mode-select buttons
(DISPLAY MODE)
SH-GE50 B)
@ Power switch (POWER)
@ Left channel band-level controls/indicators
@® Signal level display (SIGNAL LEVEL)
@ Right channel band-level controls/indicators
© Input select button (INPUT SELECTOR)
4 ©
Cassette deck
' © Power “STANDBY ©/ON” switch
(POWER, STANDBY (/ON)
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
© Cassette holder for deck 1
®© Counter reset button (COUNTER RESET)
® Remote control signal sensor (SENSOR)
©) Synchro-start button (SYNCHRO START)
© Tape-to-tape recording-speed button (SPEED)
@ Display
Tape deck select button (DECK 1/2)
@® Dolby noise-reduction button (DOLBY NR)
(0 Reverse-mode select button (REVERSE MODE)
@® Rec pause button (@ REC PAUSE)
(2 Cassette holder for deck 2
(3 Open button for deck 1 (4 OPEN)
(} Rewind/fast-forward buttons (aa, PP)
(5 Reverse-side playback button (4)
48 Stop button (M)
( Forward-side playback button (> )
(8 Open button for deck 2 (4 OPEN)
